Following connections are possible:

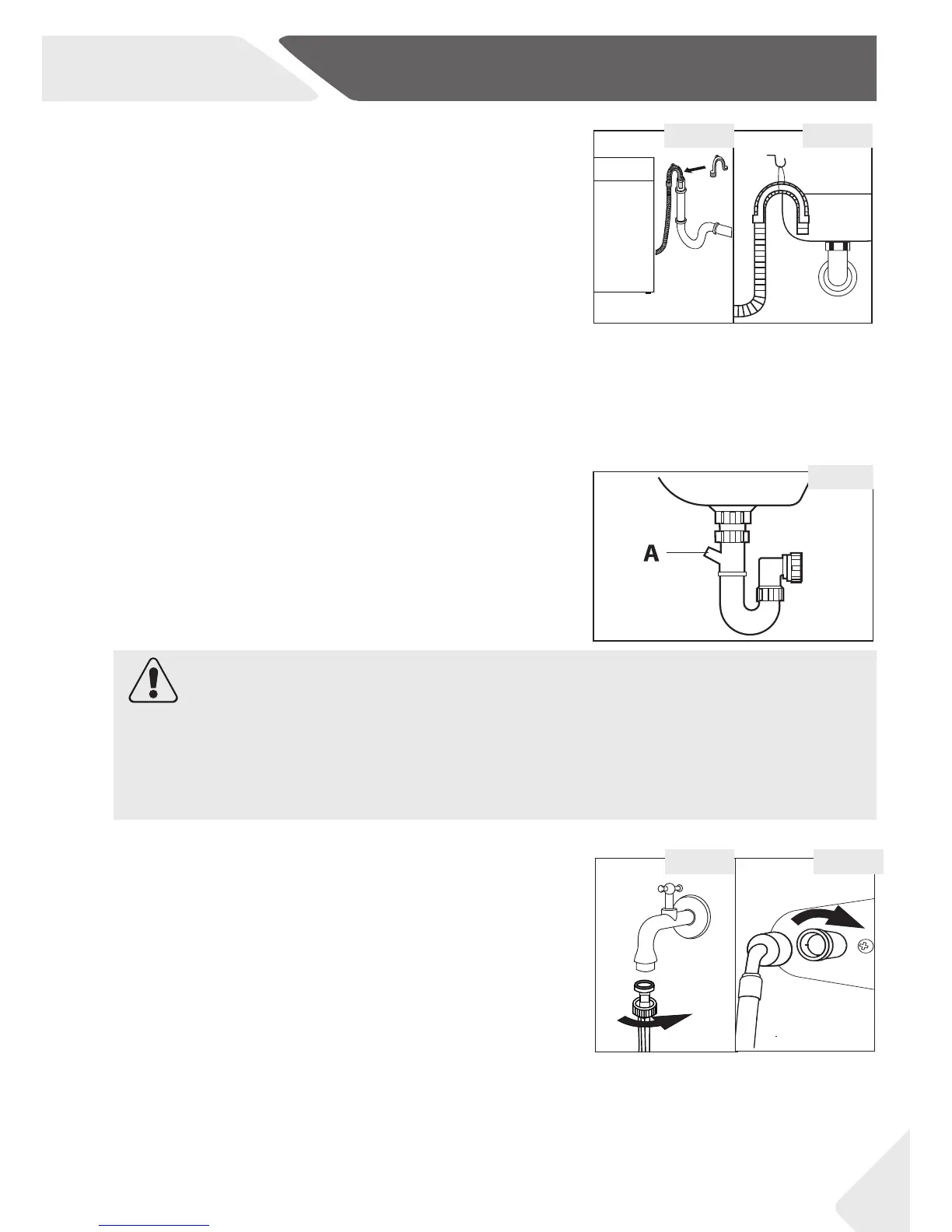

10.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 10-6.1).
▶ Protect the U-support suciently against slip-
ping.
10.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
▶ Put the drain hose for approx. 80 mm in the
wastewater pipe.
▶ Attach the U-support and secure it suciently
(Fig. 10-6.2).
10-6.2 10-6.1
CAUTION!
▶ The drain hose should not be submerged in water and should be securely xed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being lled (self-si-
phoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
10.6.3 Drain hose to sink connection
▶ The junction must lie above the siphon
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunc-
tion (Fig. 10-6.3).
▶ Secure the drain hose with a clamp.
10-6.3
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled end
to the appliance (Fig. 10-7.1). Tighten the screw
joint by hand.
2. The other end connect to a water tap with a 3/4“
thread (Fig. 10-7.2).
10.7 Fresh Water Connection
10-7.2 10-7.1
