HYCD-282/282A/282C_Service Manual
5

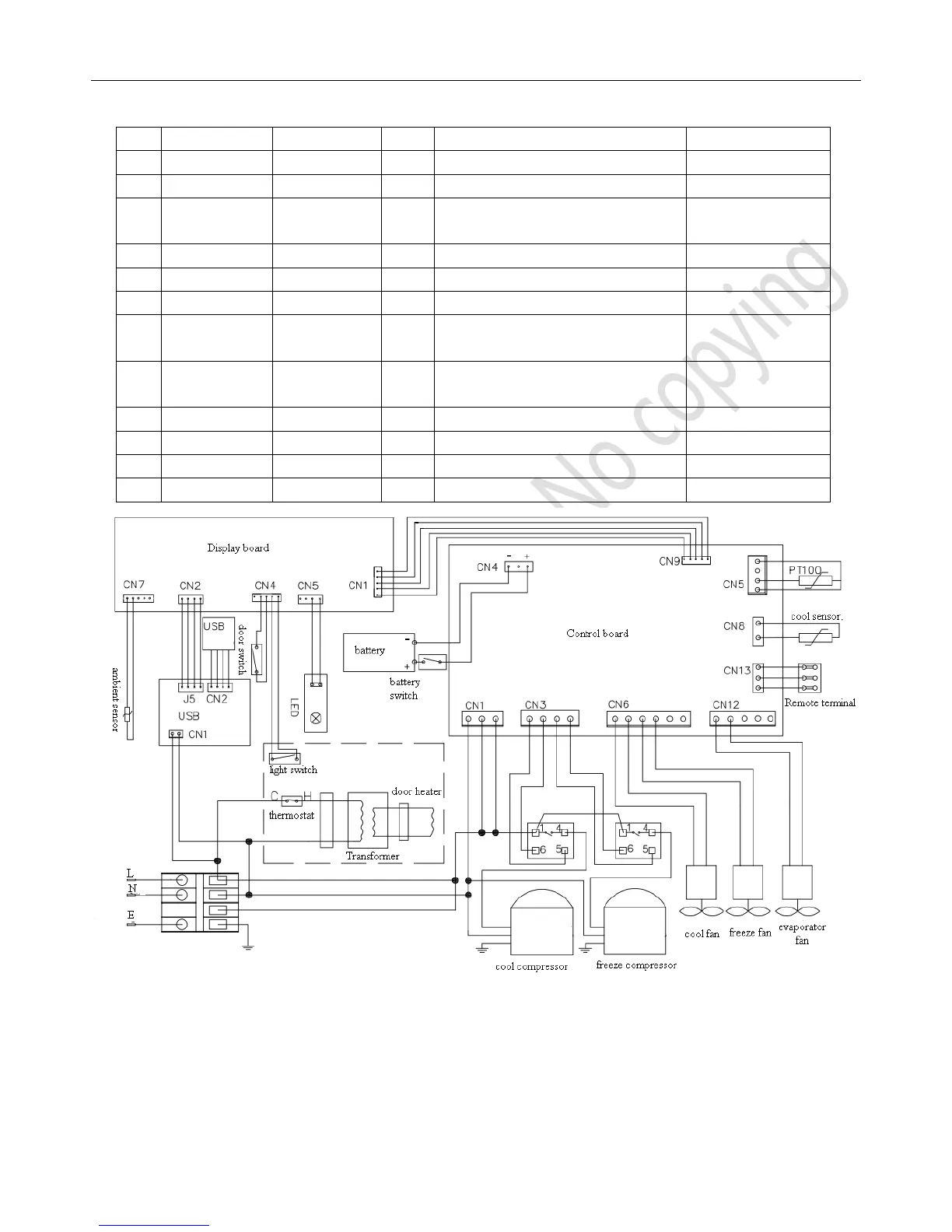

4. Electrical parts and circuit diagram
No. Part code Name QTY Specification Applicable models
1 0271800009 Display board 1
2 0271800008 Control board 1
3 0271800064 USB board 1 10years HYCD-282C
optional
4 0074091430 Battery 1 12V
5 0274000232 Printer - 8000 Pcs data Only in china
6 0064001173 LED 1 5V
7 0070401365 Transformer of
door heater
1 AC/33V Only HYCD-282A
8 0270800323 Glass door
with heater
1 AC/40V/25W Only HYCD-282A
9 0274000087A Thermostat 1 Only HYCD-282A
10 0074090544 Evaporator fan 1 EBM fan-motor/19W
11 0074090544 Condenser fan 2 EBM fan-motor/19W
To Next Page
