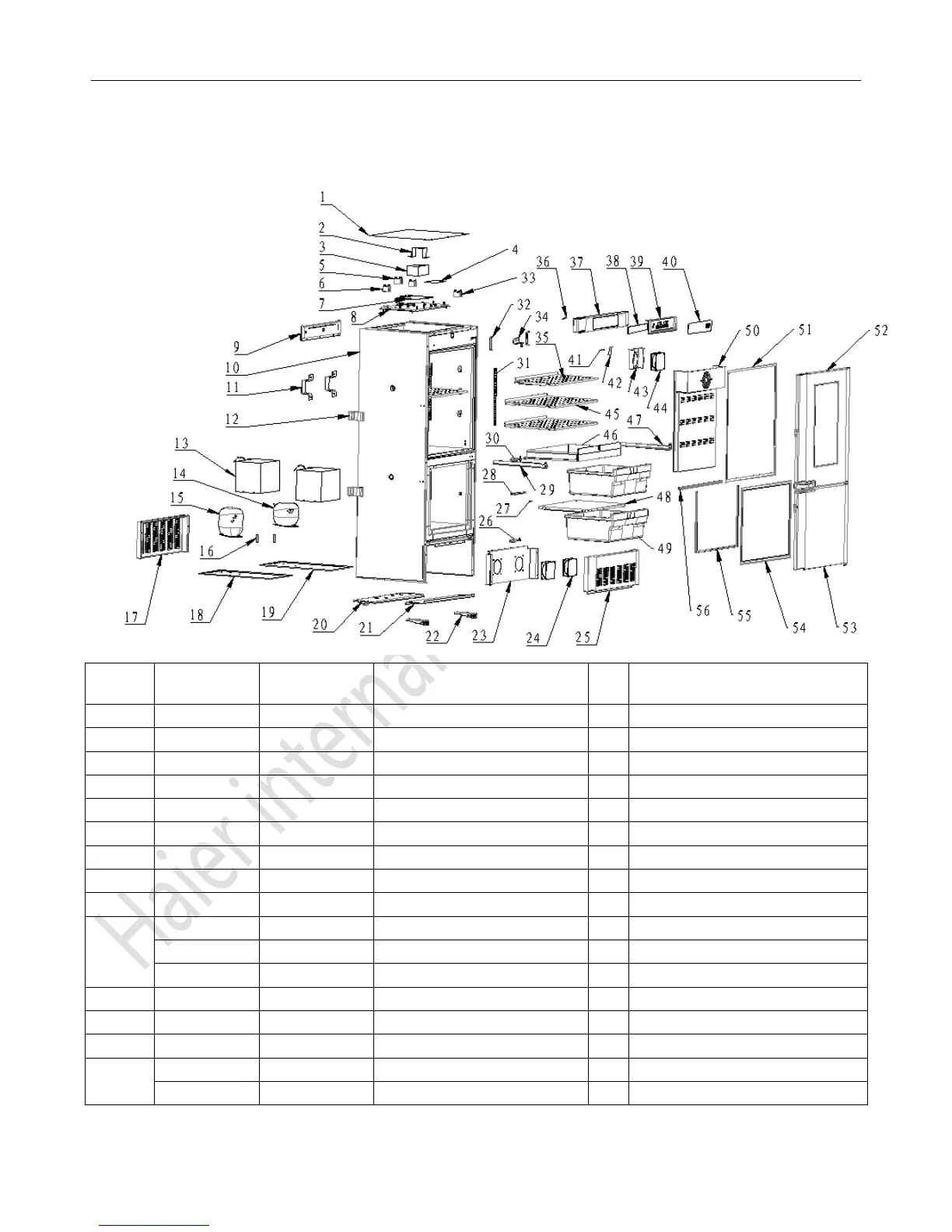

6. Spare part list and exploded view
No. Code CN Name English name QTY Remark
1 0270100499 电控箱上盖 Top cover of electrical box 1
2 0070107468 电池固定夹 The battery clip 1
3 0074091430 电池 Battery 1
4 0271800064 USB 板 Usb board 1 HYCD-282C，optional
5 0034000993 继电器 Relay 2
6 0274000087A 机械温控器 Thermostat 1 HYCD-282A，only
7 0271800008 主控板 Control board 1
8 0270100491 电器支架 PCB support 1
9 0270100496 电控箱后盖 Back cover of electrical box 1
10 0270800305 箱体 Main body 1 HYCD-282
0270800327 箱体 Main body 1 HYCD-282A
0270803505 箱体 Main body 1 HYCD-282C
11 0070102180 止推架 Stopper 2
12 0270200052 锁扣 Lock catch 2
13 0070701944 冷凝器 Condenser 2
14 0074091262 冷藏压缩机 Cool compressor 1 L88CY,220V/50Hz
0074000035 冷藏压缩机 Cool compressor 1 GVY57AG，220V/60Hz
