14

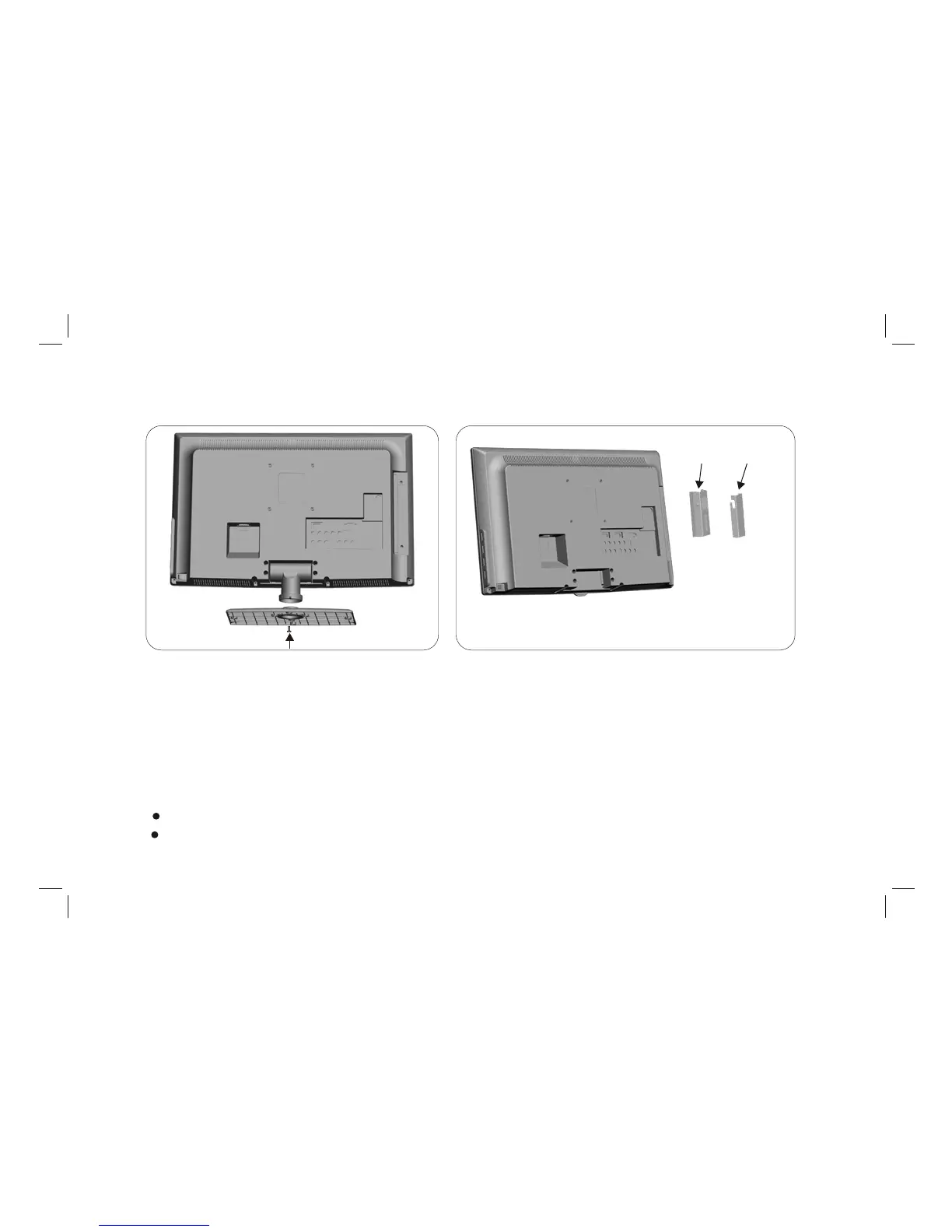

Base installation
Base equipment act as the picture. Equip the base with the machine according to arrow point, and lock the bolt tightly.
Wall Mounting subassembly installation
Installation for VESA Wall Mounting
1. Take off the base subassembly
2. Fasten the wall mounting board. ( The height can be confirmed by the user)
3. Fasten the wall mounting stand at the position of VESA on the rear cover with bolts.
4. Spin M4 bolts into the left-right nuts on the wall mounting stand. 3-4 mm of depth from bolts washer to stand is
recommended.
5. Hang the machine onto the slot of the wall mounting board. Then lock the two bolts on the sides.
Note: Installation method is different because of Hanging arm hardware's structure.
Must install the wall pendant on firm wall surface, please do not install this machine on ceiling or vehicles.
Wall Mounting Stand
Wall Mounting Board
