Haier L26F6 Owner's Manual

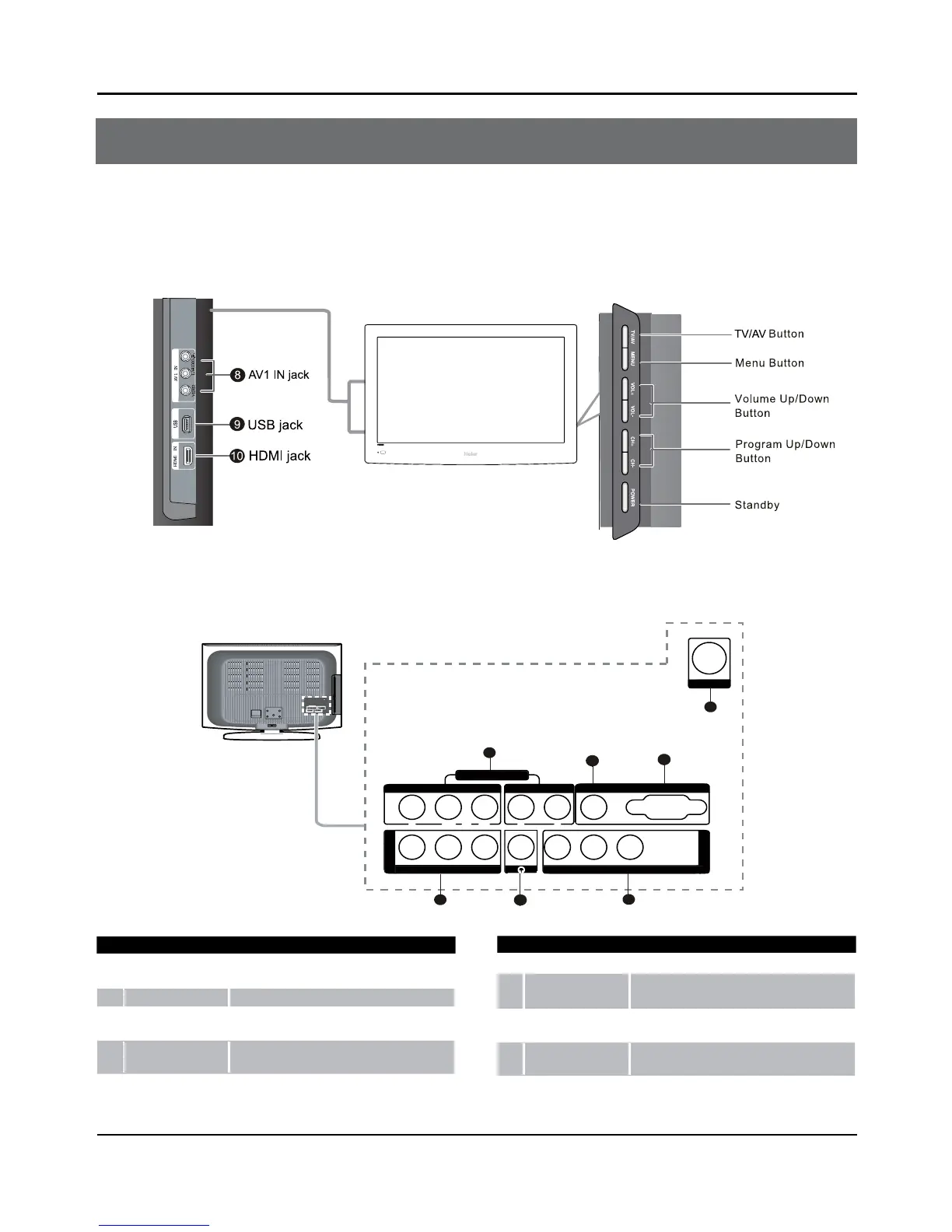

Panel Control and Rear Terminals Control
6 LCD television Owner’s Manual
Panel Control and Rear Terminals Control
- This is a simplified representation of front panel.
- Here shown may be somewhat dierent from your TV.
Panel Control
Rear Terminals Control
VIDEO
VIDEO
ANT
L AUDIO R
VIDEO
PC
L AUDIOR
AV 2IN
AV
OUT
YPbPrLR
PCAUDIO
GOMPONENY
1
2
3
4
5
6
L
R
Y
Pb
Pr
PC/DVI AUDIO
AV OUT
VIDEO
ANT.
AUDIO
PC
AV2 IN
VIDEO
AUDIO
L
R
VIDEO
AUDIO
LR
COMPONENT IN
7
1
COMPONENT In
Connect a component Video/Audio device to
these jacks
2
PC/DVI AUDIO Connect a PC/DVI Audio device to these jacks
3
PC
Connect a VGA cable from a computer to this
jack
4
AV2 IN
Connect Video/Audio out from an Video/Audio
device to these jacks
5
Earphone Earphone audio output terminal.
6
AV OUT Video/Audio output terminal
7
ANT IN
Connect cable or antenna signal to the TV, either
directly or through your cable box
8
AV1 IN
Connect Video/Audio out from an Video/Audio
device to these jacks
9
USB jack Connect USB storage device to this jack
0
HDMI jack
Connect a HDMI device to receive digital Audio
and un compressed digital video

Haier L26F6 Specifications

General

Screen Size	26 inches
Display Technology	LCD
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	170° (H) / 160° (V)
Resolution	1366 x 768
Input Ports	HDMI, Component, Composite, VGA
