-6-

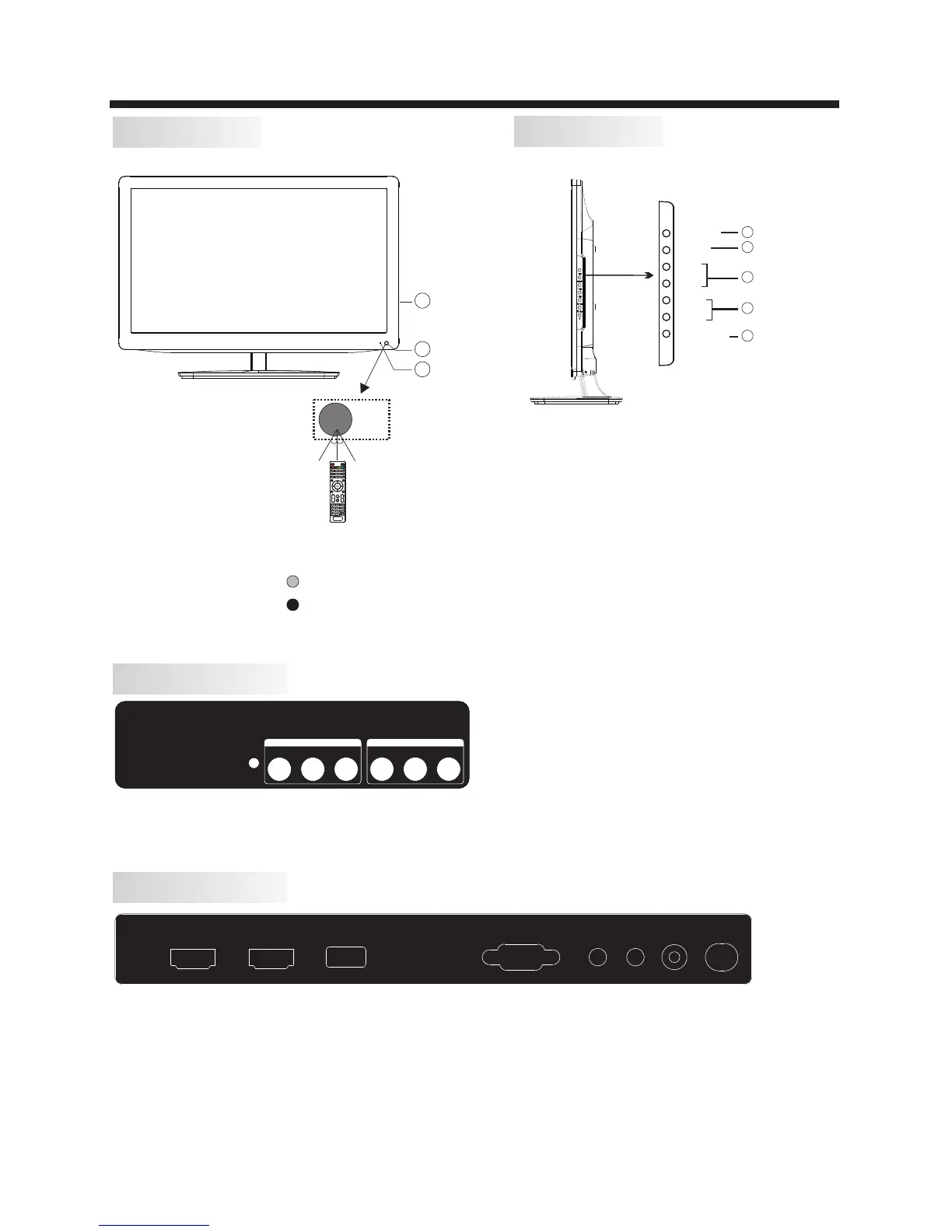

INSTALLATION
Front panel
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3:
Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
REAR Connections
All the terminals are (from left to right):
AUDIO INPUT, VIDEO, YPbPr INPUT
Note: AV and Component(YPbPr) share the R and L audio inputs.
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.
Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must be
connected to the YPbPr/AV audio input.
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2
USB
30 30
1
3
2
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1
2
3
4
5
Y
Pb
Pr
COMP ONENT
VIDE O
R L
COMP OSITE
