Haier LE32B7500 User Manual

-6-

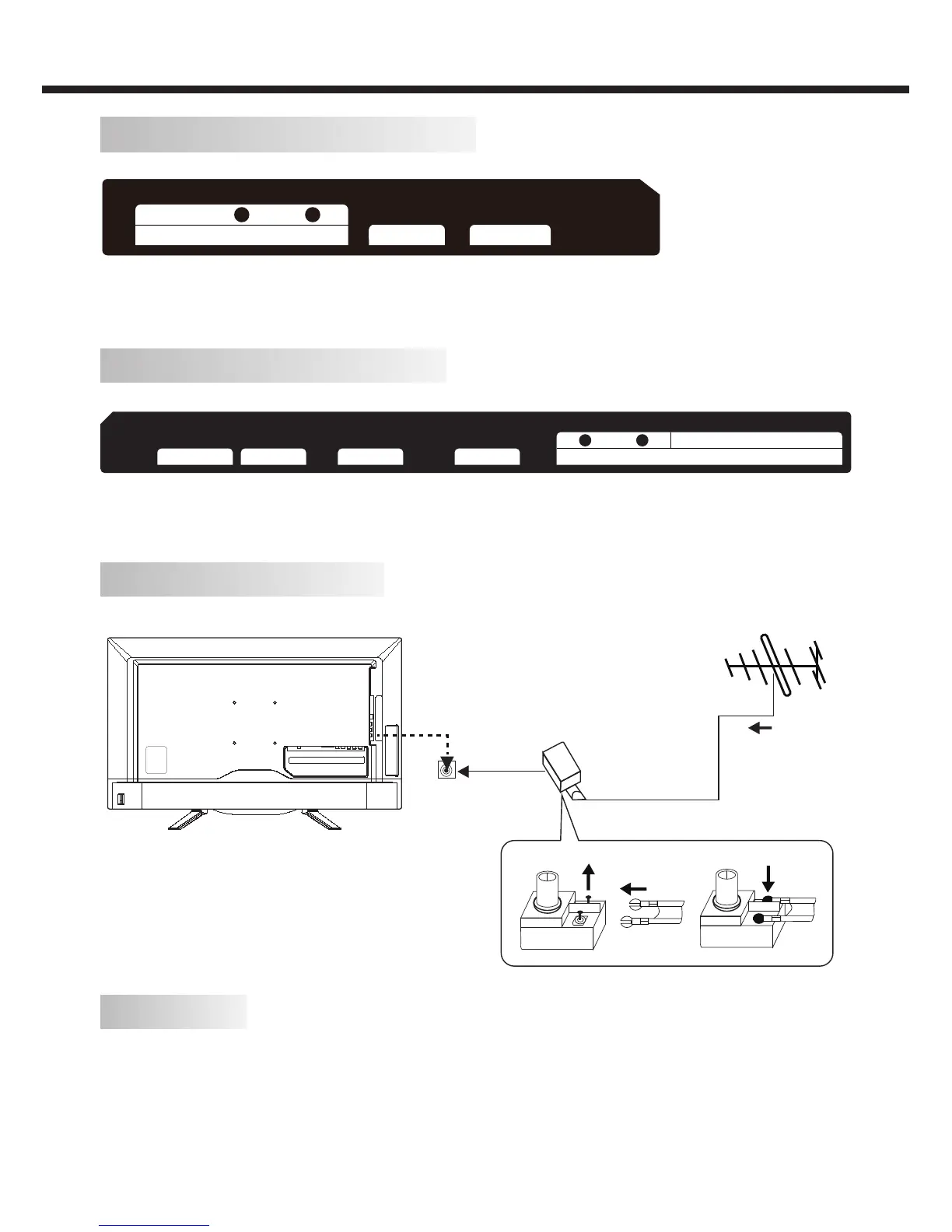

REAR AV Connections(SIDE)
USB
AntennaAV Input
Video
L
- audio -
R
All the terminals are (from up to down):
USB, ANTENNA, AV INPUT(AUDIO L/R ,VIDEO).
REAR AV Connections
HDMI 1 VGA INPUTAV OUTPUT
Component Input
Y
Pb Pr
HDMI 2
L
- audio -
R
All the terminals are (from left to right):
AV OUTPUT, HDMI 1, HDMI 2,VGA INPUT, Component Input ( AUDIO L/R, Y/ Pb/Pr).
ANTENNA
Loosen the screws Insert the feeder in Wires
Note:
Aerial connections: IEC (female).
Input impendance: 75Ω unbalanced.
Plug
An outdoor antenna
An outdoor antenna
CATV net
TWIN-LEAD FEEDER(300Ω)
ANT 75Ω
Adaptor (NOT SUPPLIED)
Tighten the screws
PC
STEPS:
Be sure both the TV and computer are Power off.
1. Connect VGA.
2. Connect power cord.
INSTALLATION
