Haier LE32C430 User Manual

-5-
INSTALLATION

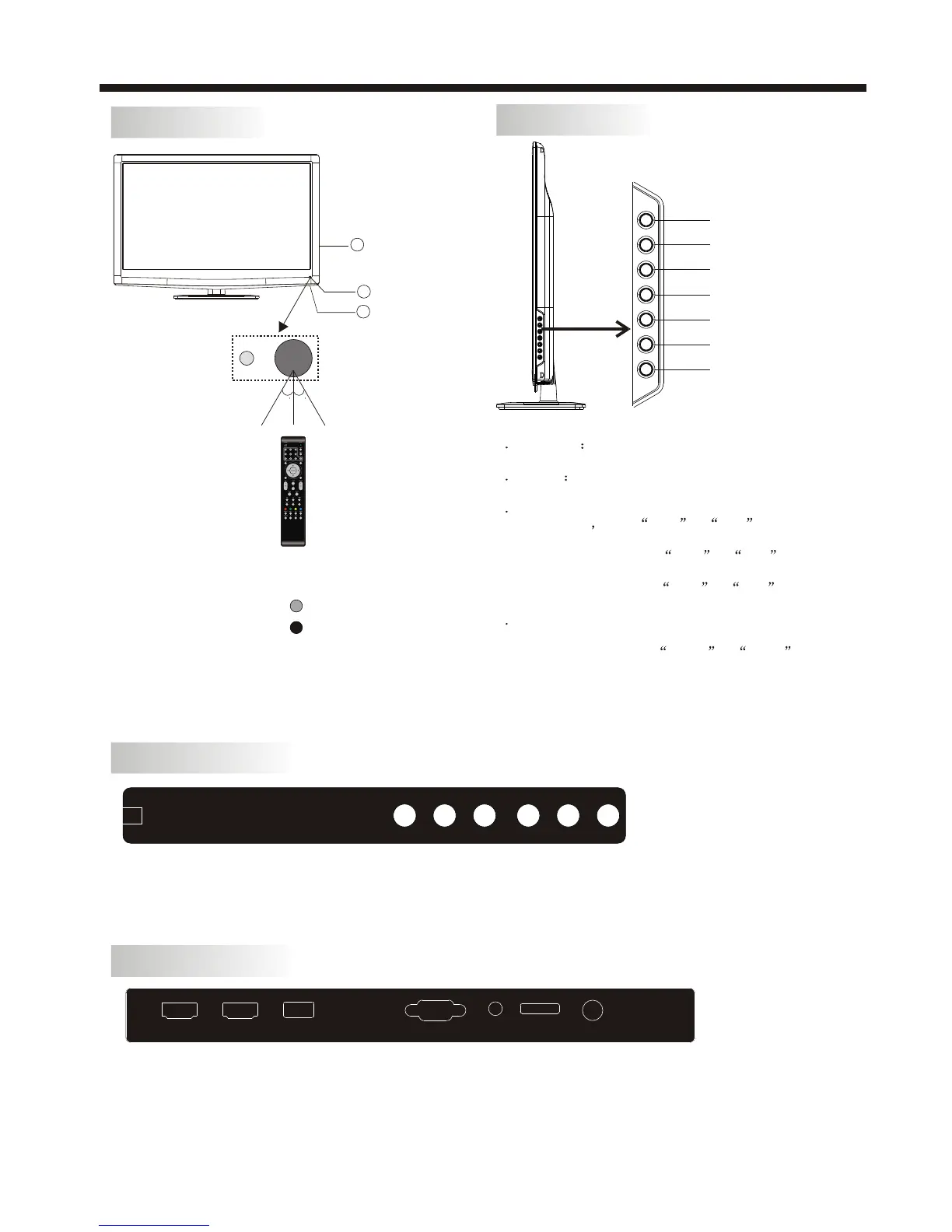

Front panel
KEYBOARD
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Key board
1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items.
In standby mode, press CH+ or CH- to turn
on the TV.
4 VOL+/VOL-
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
3
1
2
30 30
SOURCE
MENU
CH+
CH-
VOL+
VOL-
ST ANDBY
REAR AV Connections
All the terminals are (from left to right):
POWER SOCKET, AV, AUDIO INPUT, YPbPr INPUT.
Note: AV and YPbPr share one audio channel.
REAR AV Connections (SIDE)
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, AV2 IN/AV OUT, RF.
Note: When HDMI1 port get DVI signal, the audio signal receives from the PC
Audio channel.
Y Pb Pr
AV L R
AC-INPUT
100-240V~50/60Hz
HDMI1 HDMI2
USB
VGA
PC AUDIO
AV2 IN/AV OUT
RF
