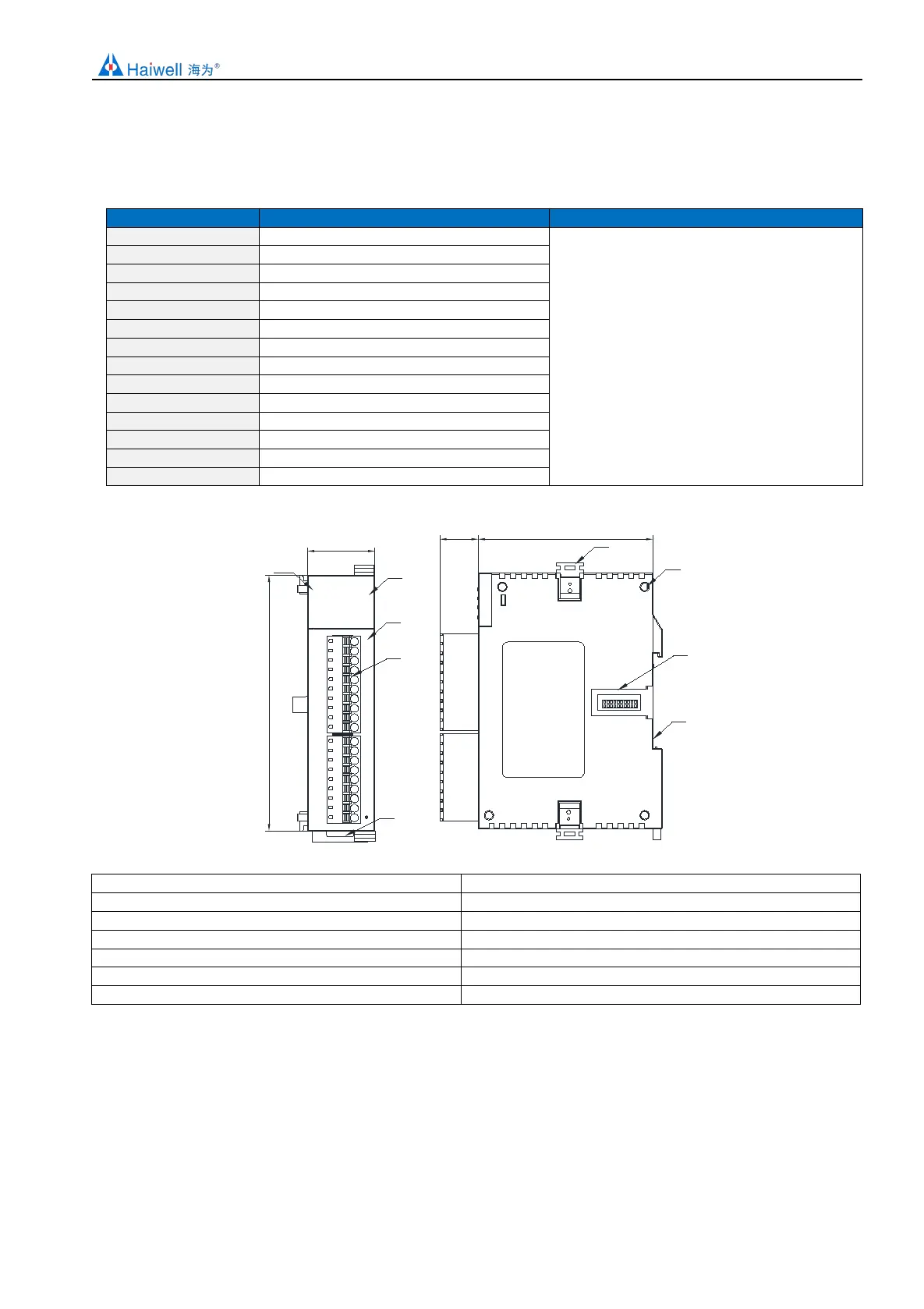

www.haiwell.com A Series Card-type PLC - Digital Module User Manual
3 / 6
Digital module user manual
1. Product Model List and Dimension
Model
power(24V)
Dimensions
A08DI
DC24V~0.1A MAX
25*95*68
A08DOR
DC24V~0.2A MAX
A08DOT
DC24V~0.2A MAX
A08DOP
DC24V~0.2A MAX
A08XDR
DC24V~0.1A MAX
A08XDT
DC24V~0.1A MAX
A08XDP
DC24V~0.1A MAX
A16DI
DC24V~0.1A MAX
A16DOR
DC24V~0.35A MAX
A16DOT
DC24V~0.35A MAX
A16DOP
DC24V~0.35A MAX
A16XDR
DC24V~0.2A MAX
A16XDT
DC24V~0.2A MAX
A16XDP
DC24V~0.2A MAX
A16DI
0
4
8
12
1
5
9
13
2
6
10
14
3
7
11
15
PWR
RUN
1
3
S/S
X0
X1
X2
X3
X4
X5
X6
X7
X8
S/S
X9
X10
X11
X12
X13
X14
X15
4
5
2
6
7
8
9
95.0
25.0
65.014.0
1.Digital channel indicator
2.PWR power indicatorlink running indicator
3.Terminal definition
4.Removable terminal
5.Rail buckle
6.Module hook
7.Module connection positioning hole
