www.haiwell.com A Series Card-type PLC - Digital Module User Manual
5 / 6

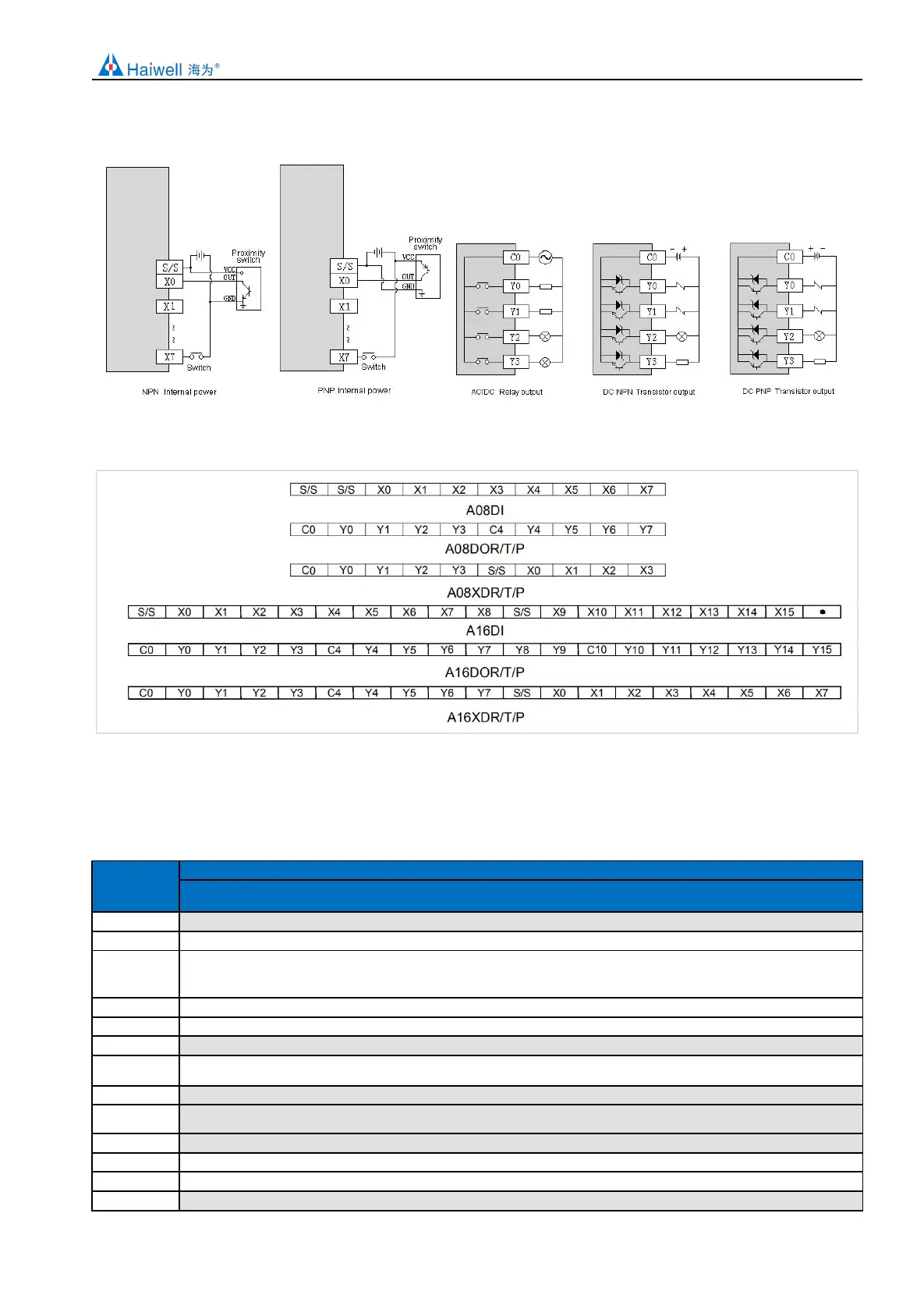

7. Digital Input/Output (DI/DO) Wiring Diagram
8. Terminal Wiring Diagram
9. Module Parameter Table
(CR code is corresponding to the Modbus register address)
Note: CR code is corresponding to the Modbus register address, the gray parts are read-only ,the white parts are readable
and writable.
CR 号
功能说明
A08DI、A08DOR、A08DOT、A08DOP、A08XDR、A08XDT、A08XDP、
A16DI、A16DOR、A16DOT、A16DOP、A16XDR、A16XDT、A16XDP
00H
Low byte for module code, and high byte for module version number.
01H
Communication address
02H
Communication protocol: The low 4-bit of the low byte: 0 - N,8,2 For RTU，1 - E,8,1 For RTU，2 - O,8,1 For RTU，3 - N,7,2 For
ASCII，4 - E,7,1 For ASCII，5 - O,7,1 For ASCII，6 - N,8, 1 For RTU
The high 4-bit of the low byte: 0 – 2400，1 – 4800，2 – 9600，3 – 19200，4 – 38400，5 – 57600，6 - 115200
03H~06H
Module name
07H~08H
Default IP address: 192.168.1.111
09~0AH
Reserve
0BH
High byte subnet mask (b3~b0,1indicates 255, 0 indicates 0, for example, subnet mask255.255.255.0，b3~b0=1110), low byte
Reserved
0CH~0EH
Reserve
0FH
Error code: 0-Normal, 1-Illegal firmware identity, 2-Incomplete firmware, 3-System data access exception, 4-No external 24V
power supply
10H~4FH
DI channel 1~64 input value
50H~8FH
DO channel 1~64 output value
90H
DI filter time ms，0 - 0.8、1 - 1.6、2 - 3.2、3 - 6.4、4 - 12.8、5 - 25.6、6 - 51.2
91H~9FH
Reserve
