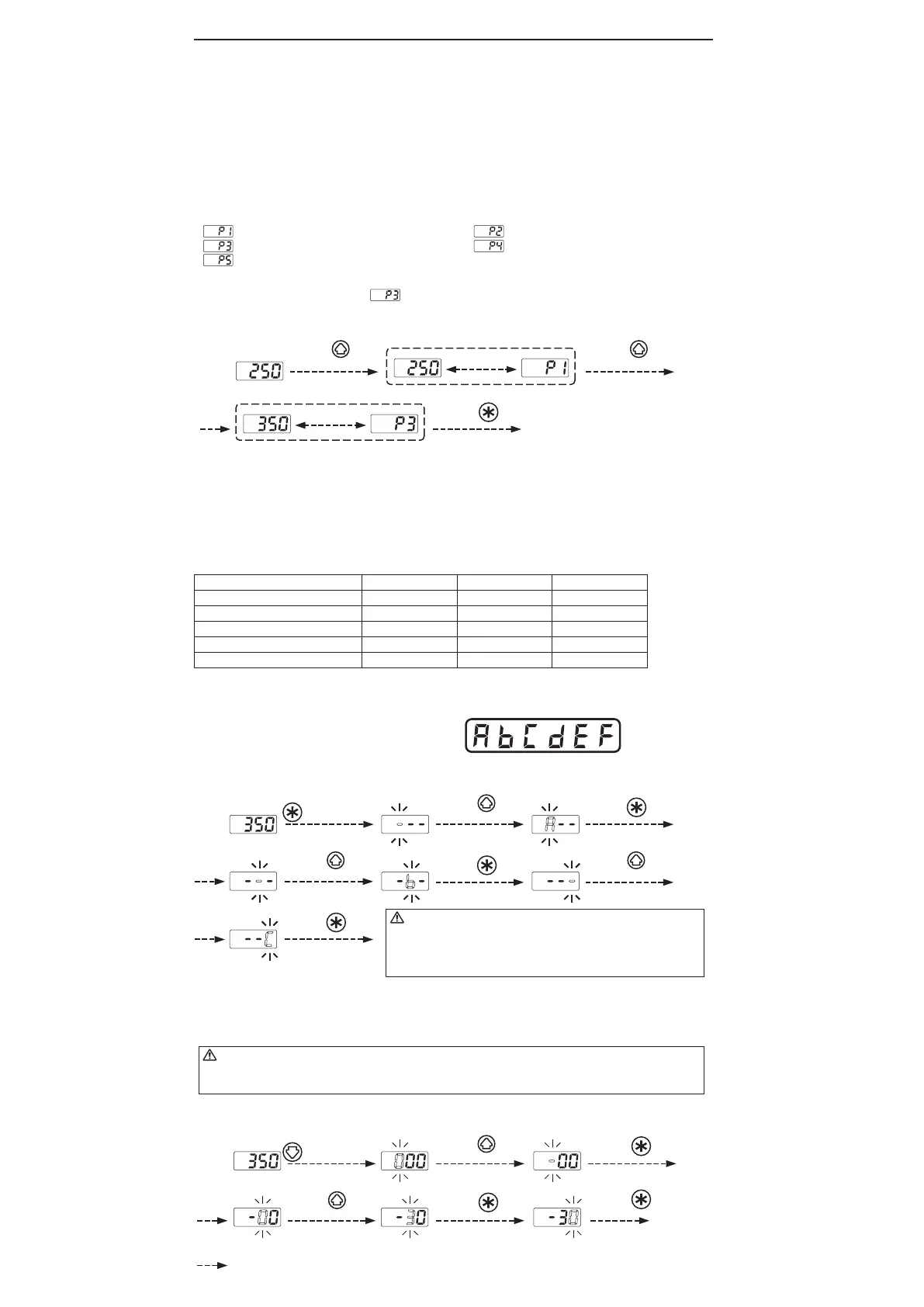

5. OPERATION
In addition to the procedure described remove above, HAKKO FR-810 includes a preset mode allowing the
selection of temperature, time, and airflow from the options you define (up to 5 temperature/time/airflow
settings can be programmed). Enter the parameter setting to change the mode.
(Please refer to [● Changing Parameter Settings])
Initial preset settings:
The initial number of active presets is set to 5 at the factory.
The default selected preset is set to at the factory.
Example : Changing preset selection from preset No.1 to No.3.
Control will begin with new preset setting.
The procedure for making changes to the preset temperatures, timer and air flow is the same as the
“Setting/Changing the Temperature and Timer” and “Setting of the air flow”.
Example:
Changing the offset setting from 0℃ to -30℃
*Preset selection screen
● Preset mode
●
Offset mode {Setting is available within the range of ±50°C (90°F)}
Be displayed
alternately.
Be displayed
alternately.
Each of the set values is displayed for two seconds,
and each change is finalized.
Temp. : 100℃ (212℉) Timer : “−−−” Air flow : 5
Temp. : 300℃ (572℉) Timer : “−−−” Air flow : 5
Temp. : 500℃ (932℉) Timer : “−−−” Air flow : 5
Temp. : 200℃ (392℉) Timer : “−−−” Air flow : 5
Temp. : 400℃ (752℉) Timer : “−−−” Air flow : 5
CAUTION
If the total of a set value and an offset value exceeds 600°C, the exceeding portion in the offset value is
not effective.
* Timer function
In this product, setting the timer allows you to control the time during which hot air is blown.
Either of the following two modes is selectable by parameter setting: Open Timing in which count is
started from the time when temperature reaches the set temperature and Closed Timing in which count is
started upon start. The timer setting range is 001 to 999 seconds.
(When not using the timer function, select “---”. When set in the timer setting “000” , don't work. )
● Restriction on setting changes (Password function)
It is possible to restrict certain setting changes to the unit.
There are three choices for the password setting.
Enter the parameter settings to change the mode. (Please refer to [● Changing Parameter Settings])
○ : You can make changes without entering a password.
△ : You can choose whether or not a password is needed to make changes.
×: A password is required to make changes.
Select and input three letters for password
from six letters on the right.
Example: The procedure for changing the set temperature when the unit is restricted by a password.
(Password is "AbC")
The unit will move to the change setting screen for each mode after entering the password. Please change
the setting for each mode according to the procedure covered in this manual.
The letters
for password
Switch to the parameter setting mode
Switch to the temperature setting mode
Switch to the preset selection mode
Switch to the offset setting mode
Make airflow adjustments
0 : Open
○
○
○
○
○
1 : Partial
×
△
△
△
△
2 : Restricted
×
×
×
×
×
Press the
button once.
Press the
button twice.
Press the
button.
Press and hold the
button for more
than one second.
Press and hold the
button for more
than one second.
Press the
button once.
Press the
button once.
Press the
button twice.
Press the
button three times.
Press the
button thrice.
Press the
button.
Press the
button.
Press the
button.
Press the
button.
Press the
button.
Press the
button.
CAUTION
・If the password you entered is incorrect, the display will show
three dashes for you to re-enter the password.
・If you enter the password incorrectly twice in a row, the display
will return to the previous screen.
