10

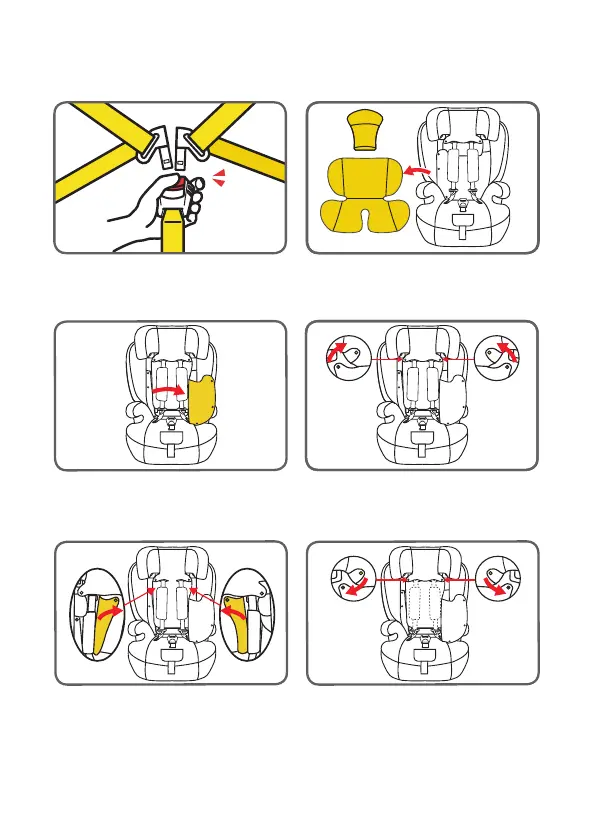

Open the 3 snap fasteners, these are
on the left-hand side of the backrest
cover. Once opened, flap the cover to
the right.
Open the 2 side snap fasteners on
the flap section of the headrest cover.
You do not need to open the middle
snap fastener.
Once the shoulder straps are
securely behind the cover, refasten
the 2 side snap fasteners on the
headrest cover.
Flap back the cover of the lower part of
the headrest cover. Place the shoulder
straps including padded covers behind
this part of the cover. Ensure the small
side flaps on the backrest cover are
also in front of the straps, these have
green tags sewn into them.
6. INSTRUCTIONS FOR STORING THE 5-POINT
SAFETY HARNESS WHEN NOT REQUIRED.
(SUITABLE FOR CHILD HEIGHT 100CM-150CM)
Press the red button to disengage
the buckle.
Remove the inner cushion as well as
the padding around the 5-point
harness buckle. Store these safely
for any future use.
