5
4. SEAT ASSEMBLY

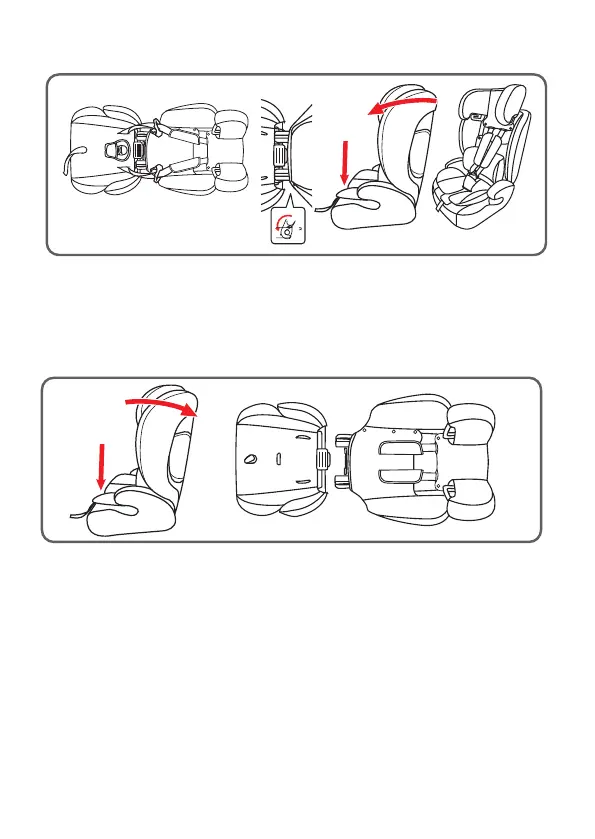

Backrest removal: To disconnect the backrest from the base, push down on
the seat base with one hand and push back on the headrest of the seat. Note
you will need to push quite hard on the headrest to get it to unclip. Once the
seat is flat, the base and backrest can be unclipped.
Seat assembly: Lay the seat flat as shown. Hook the backrest into the base
and pull it forward until it is secured in an upright position. Secure the buckle
on the 5-point safety harness, do this by combining the two buckle pieces
together. Insert the buckle ends into the 5-point harness buckle.
