Haltech NEXUS R5 - Page 4

4

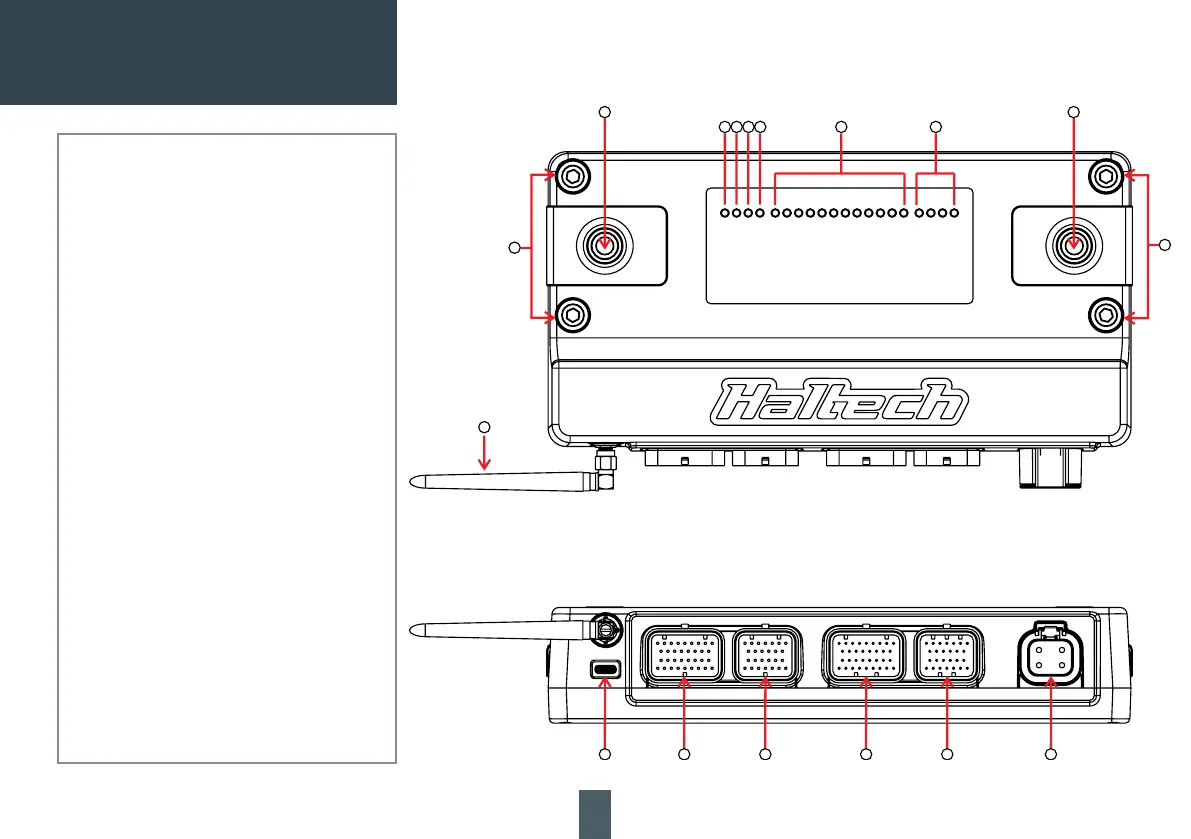

1 Power LED
2 DTC LED
3 Wi-Fi LED
4 Datalog LED
5 8A HCO LEDs
6 25A HCO LEDs
7 Battery Negative Stud
8 Battery Positive Stud
9 Wi-Fi Antenna (RP-SMA)
10 USB-C Port (Comms)
11 Connector A (Superseal 34-pin Keyway 1)
12 Connector B (Superseal 26-pin Keyway 1)
13 Connector C (Superseal 34-pin Keyway 2)
14 Connector D (Superseal 26-pin Keyway 3)
15 Connector E (DTP-4)
16 Mounting Holes
10 11 12 13 14 15
1 23 45
6
7
8
9
16
16
NEXUS R5 OVERVIEW
