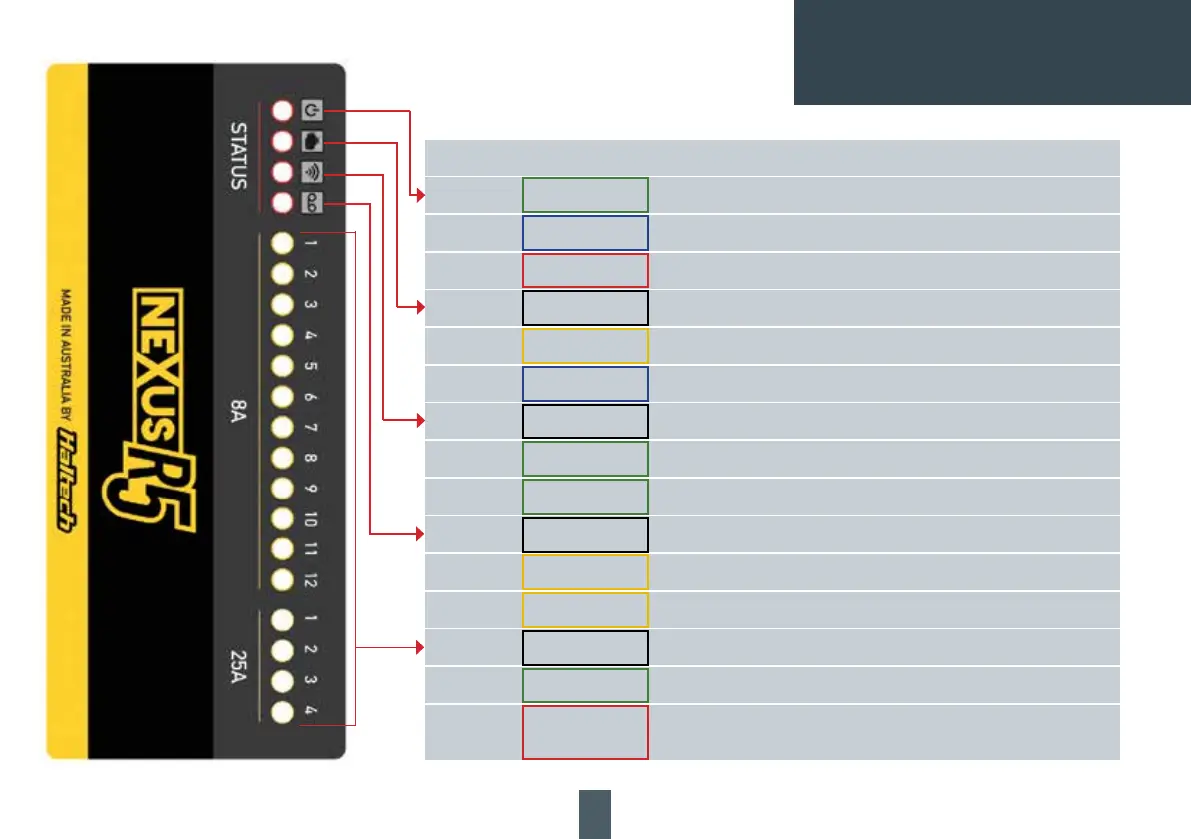

NEXUS R5 LED BEHAVIOUR
LED COLOUR CONDITION
Power Green Normal operation (on main power or low power mode)
Blue Connecttounitandinstallrmware
Red Hardware fault
DTC None DTCs not present
Yellow A DTC is present (of any kind, past/present/not severe/severe)
Blue PDMinbootmode-connecttounitandinstallrmware
WiFi None Wi-Fi is disabled
Green solid Wi-Fi is enabled
Green ashing Wi-Fi is enabled and connected to NSP
Datalog None Unit is not logging
Yellow ashing Unit is logging, unit is not looping or not full
Yellow Logging, unit is looping or full
HCO (all) None Channel is off
Green Channel is on - duty cycle is >0% and operating correctly
Red Channel is not allowed to be driven. Usually caused by (but not limited to)
an overcurrent this drive cycle
