ECU Pinout
Looking into ECU connector
Figure 17 – Platinum Pro Plug-in Hyundai Genesis BK Theta
3. Using the Haltech mounting kit provided mount the Platinum Pro Plug-in ECU to the
mounting bracket with the 4x captive nuts and screws as shown below.

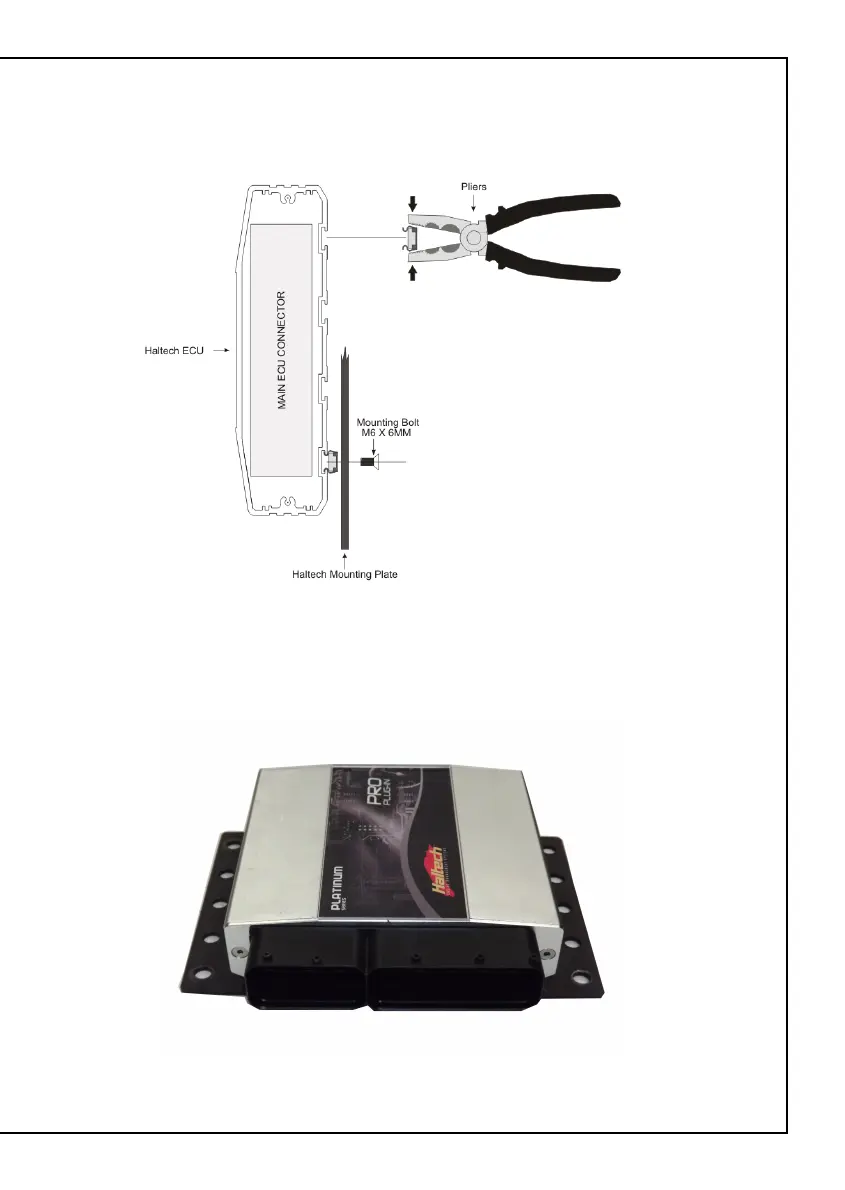

Figure 3 – Mounting bracket captive nut attachment
and assembly
Figure 4 – Platinum Pro Plug-in ECU mounted on
Haltech mounting bracket
