Hamlet Solution User Manual

Hamlet Solution Wood & Multifuel Stoves 13
INSTALLATION

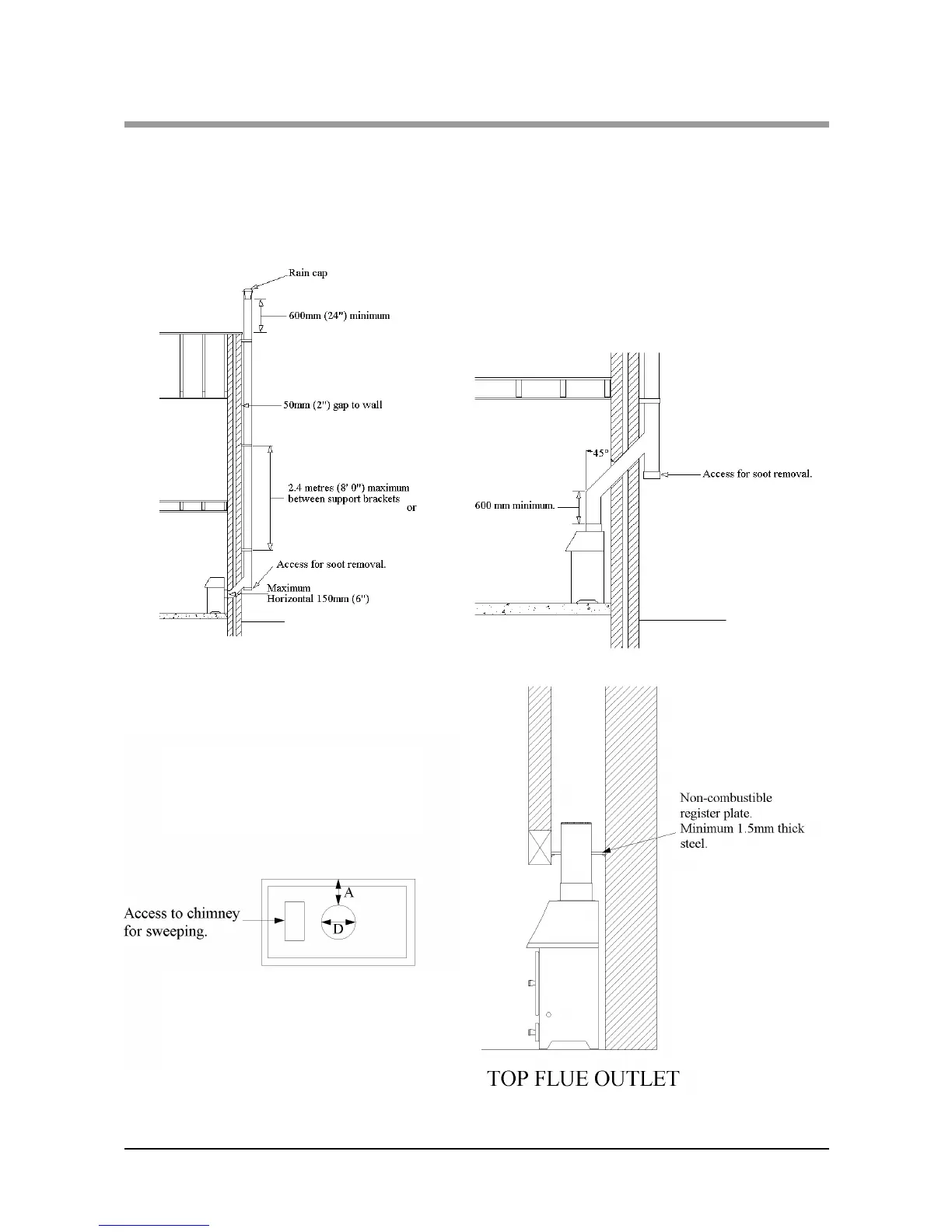

PLAN VIEW OF REGISTER PLATE AND
CLEARANCES FOR NON INSULATED
FLUES
TYPICAL METAL INSULATED CHIMNEY SYSTEM
T
O BE INSTALLED TO THE CHIMNEY MANUFACTURERS INSTRUCTIONS IN COMPLIANCE
WITH BUILDING REGULATIONS AND BS7566 P
TS 1-4
A is minimum clearance for non-insulated flue =
1.5 x D to a non-combustible surface/material
or
3 x D to combustible surface/material
Fig. 3. A Typical Top Flue Layout

Hamlet Solution Specifications

General

Material	Steel
Heat Output	5kW
Flue Size	125mm
DEFRA Approved	Yes
Type	Wood Burning
Flue Outlet	Top
