MULTIFUEL STOVE VERSION-
MULTIFUEL GRATE
GRATE
The grates in the Hamlet Solution multifuel units
comprise a series of reciprocating cast iron bars
seated on a pivoted "comb". All bars in the grate are
identical, but every other bar is turned through 180
degrees, with the ends of the bars marked "H" sit-
ting on the high sections of the comb, and the ends
marked "L" sitting on the low sections.
ASSEMBLING THE GRATE
To assemble the grate, fit bars to low sections of the
comb first, inserting end marked "H" into rear
channel with groove on underside of bar located on
upstand tab, and then lowering end marked "L"
onto the low section of the comb, see fig. 7. The
upper bar is fitted in a similar manner, but with the
end marked "L" inserted in the rear channel, and
the end marked "H" seated on the high section of
the comb. See fig. 8. for the assembled grate layout.
GRATE BAR REPLACEMENT
After extended use it may be necessary to replace
some of the grate bars. Periodic inspection of the
bars is recommended and the removal of any nails
or wire that may be present after burning wood. All
the grate bars in each appliance are identical and
can easily be lifted out after removal of the fuel
retainers. Remove damaged grate bars and replace
with casting of the same type, fitting as per
instruction above. When re-ordering replacement
grate bars, see page 31of these instructions for the
correct spare part code.
Hamlet Solution Wood & Multifuel Stoves 15
INSTALLATION

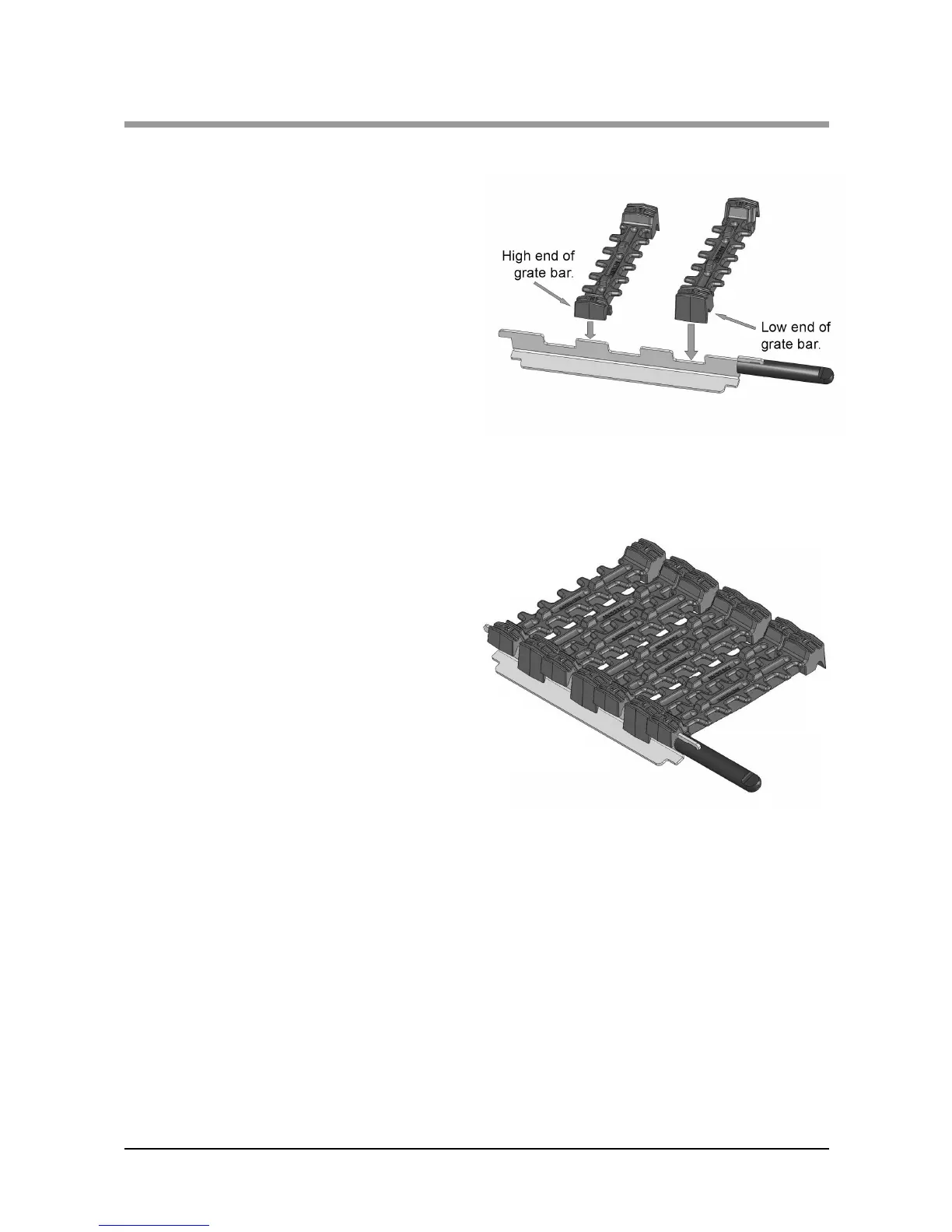

Fig. 7. Fitting the grate bars
Fig. 8. Assembled grate
