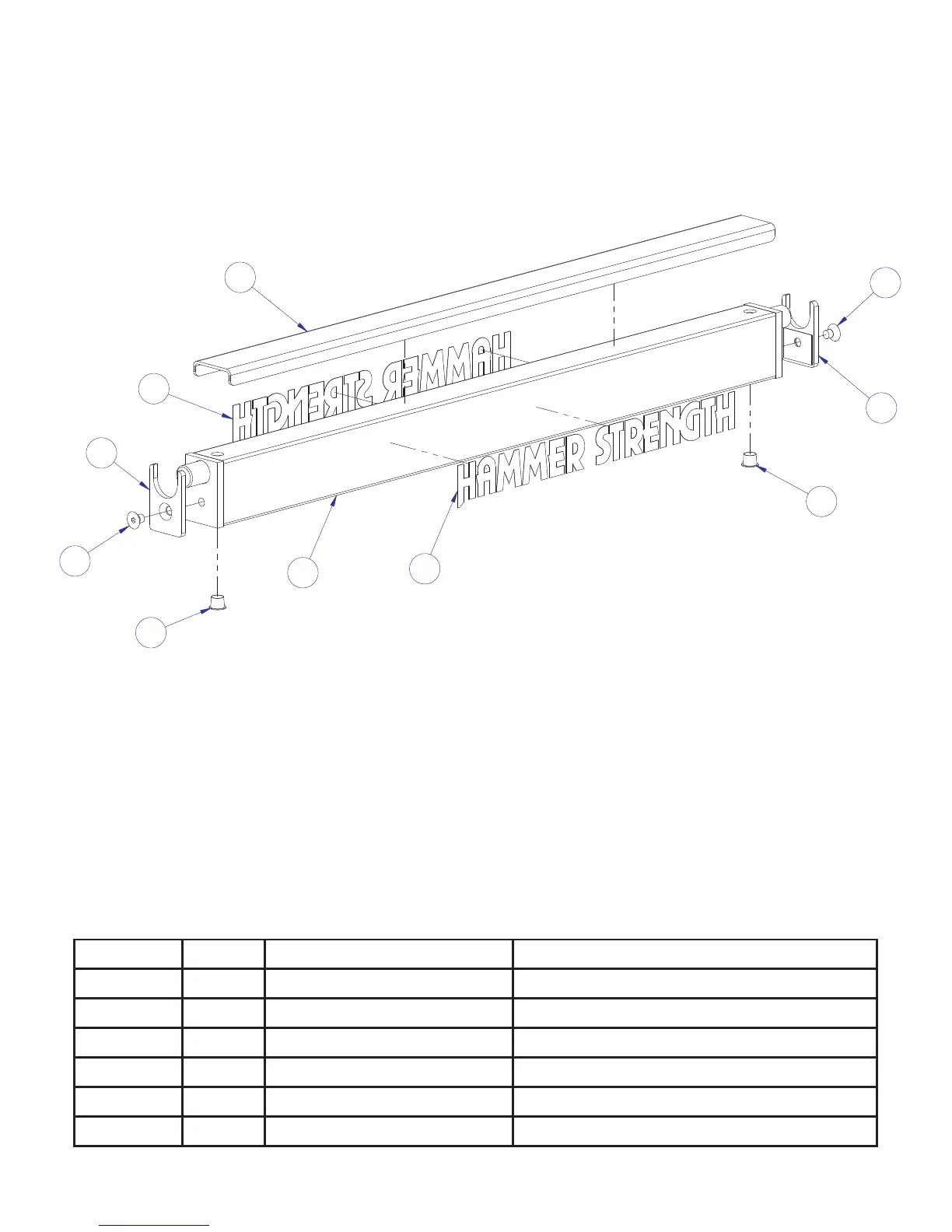

BAR CATCH ASSEMBLY - HDPR8-CBC-0
HDPR8 HEAVY DUTY 8 FOOT POWER RACK
3
5
4
1
6
2
6
3
5
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 HDPR8-BC-0 WLDMT, BAR CATCH
2 1 HD-BC-PNT-GRD-LG-00 PAINT GUARD, BAR CATCH TOP
3 2 HD-BC-PNT-GRD-END-00 PAINT GUARD, BAR CATCH END
4 2 H-LOCK-PLUG 9/16" HOLE PLUG
5 2 3/8 X 1/2 FHSCS 0.375 X 1/2" FLAT HEAD CAP SCREW
6 2 H-DECAL-LOGO HAMMER STRENGTH LARGE DECAL
