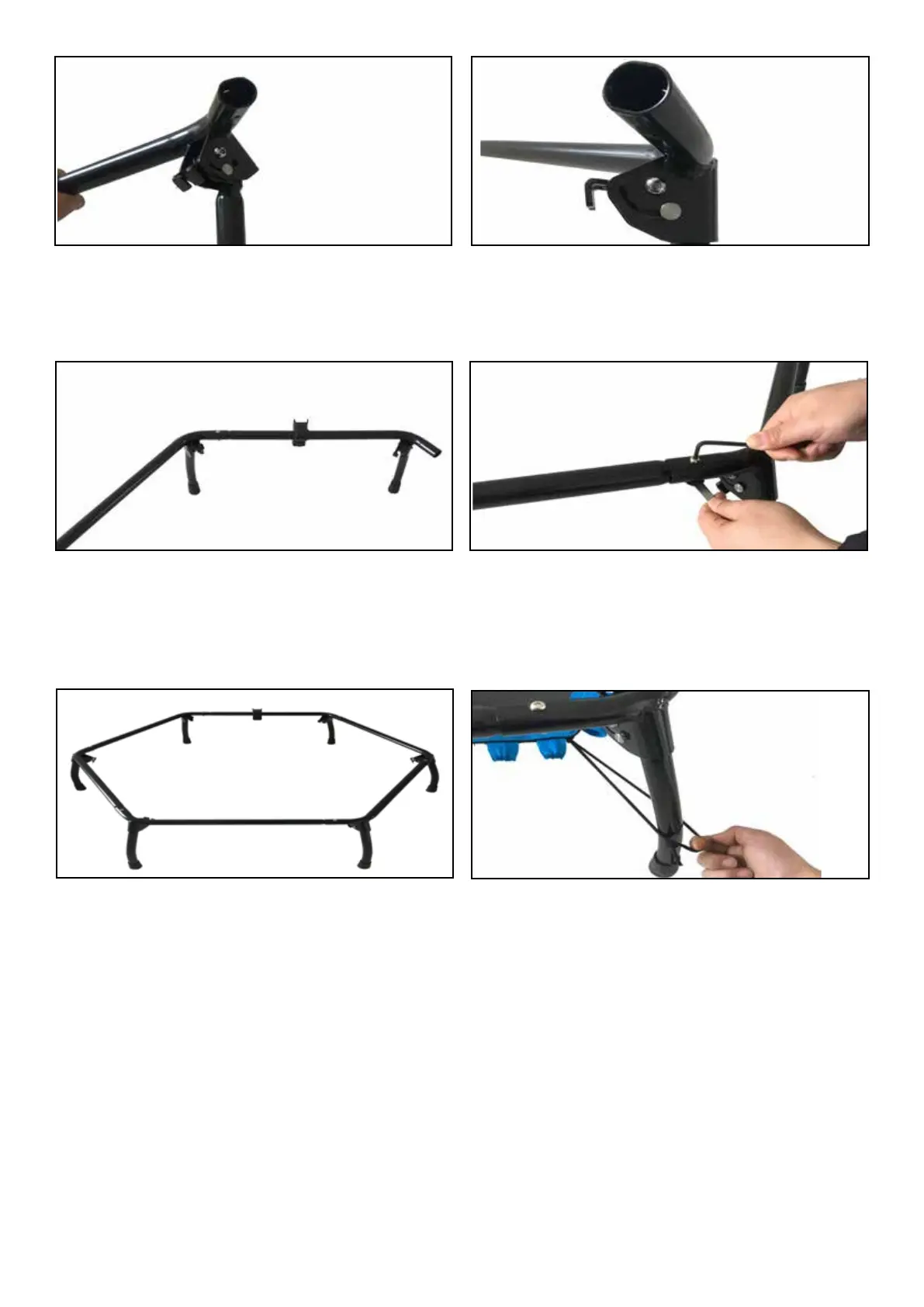

2. Verbinden Sie nun alle Rahmenteile und xieren immer zwei Rohre mit einer Innensechskantschraube (13),
zwei Unterlegscheiben (14) (1x oben und 1x unten) und einer Mutter (15).
2. Connect now all rails, each connection with an allen screw (13), two washers (14) (one on top side and the
second one on bottom side) and secure it with a nut (15).
4. Hängen Sie den dünnen Gummizug von unten auf
einer Seite am Fuß ein, und führen diesen nach oben.
Es sind 6 schwarte Gummizüge. An jeder Ecke einer.
4. There are six black ropes on jumping mat , each
corner has one and have them go thru the leg to atta-
ched to the frame
3. Fertiger Rahmen
3. Final frame
03
1. Entriegeln Sie alle Standfüße bei den Rahmenteilen. Klappen Sie diese auf bis sie hörbar einrasten.
1. Unfold all feet till you hear a klick and they are secured!
