10 4.3 AMP DRYWALL SCREW GUN
OPERATING INSTRUCTIONS

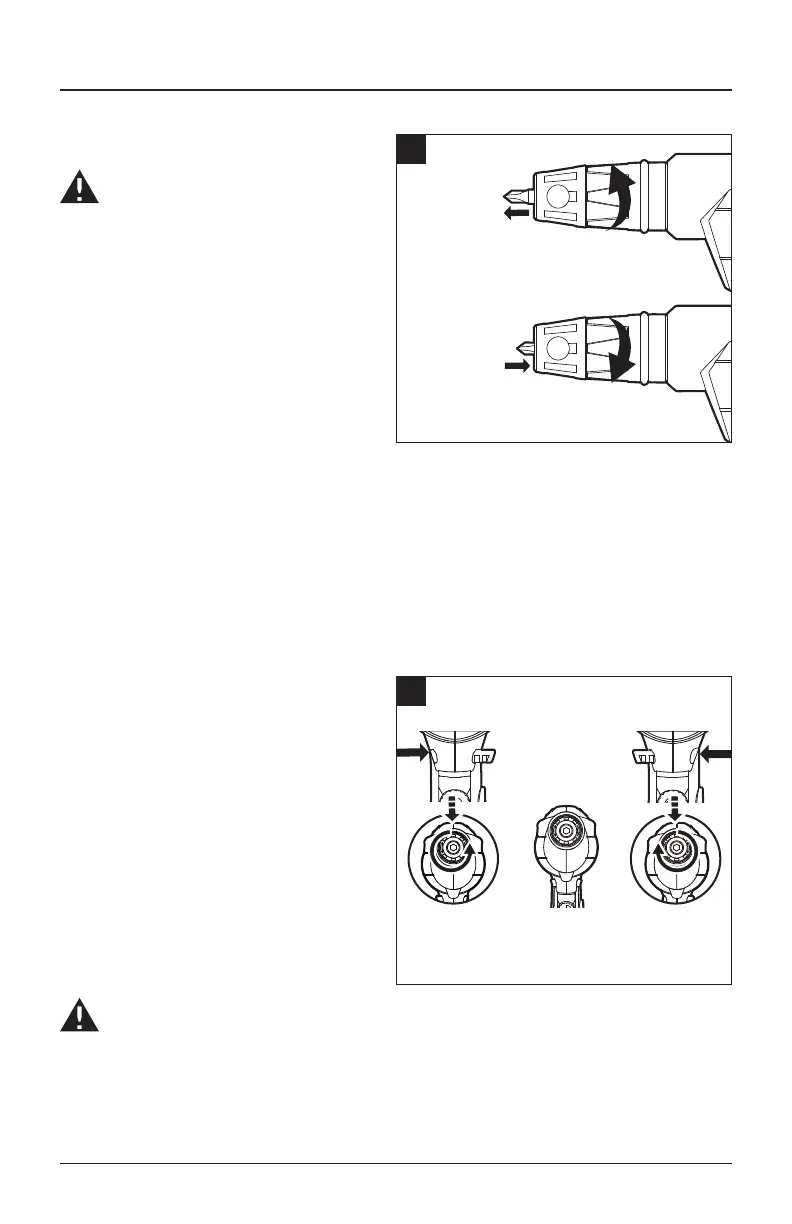

1. Installing and removing bits
WARNING: Always ensure that the
hammer drill is switched off and plug is
removed from the power point before
making any adjustment.
a) Insert the bits into depth
adjustment head, there is a
magnet inside the output shaft, it
could fix the bits.
b) Ensure the bit is fully inserted in.
c) Slight adjustment
To increase the screw depth
Hold the depth adjustment knob, rotate it clockwise(view from operator's working
position), the screw will go deeper into the wall.
To decrease the screw depth
Rotate it anti-clockwise (view from operator's working position), the depth of screw
go into the wall will be shallower than previous setting.
d) To move the bits. Just take out bit.
2. Forward/reverse adjustment
a) For forward (clockwise) rotation,
push the forward /reverse switch
to the left position. (view from
operator's working position)
b) For reverse (counterclockwise)
rotation, push the forward/reverse
switch to the right position. (view
from operator's working position)
Although an interlock prevents
reversing the tool while the motor
is running, allow it to come to a
full stop before reversing.
WARNING: If forward/reverse switch is on the central position, the tool can not be
switched on.
1
2
To increase the depth
To decrease the depth
Forward rotation
Cannot switch on
Reverse rotation
