7
Owner’s Manual

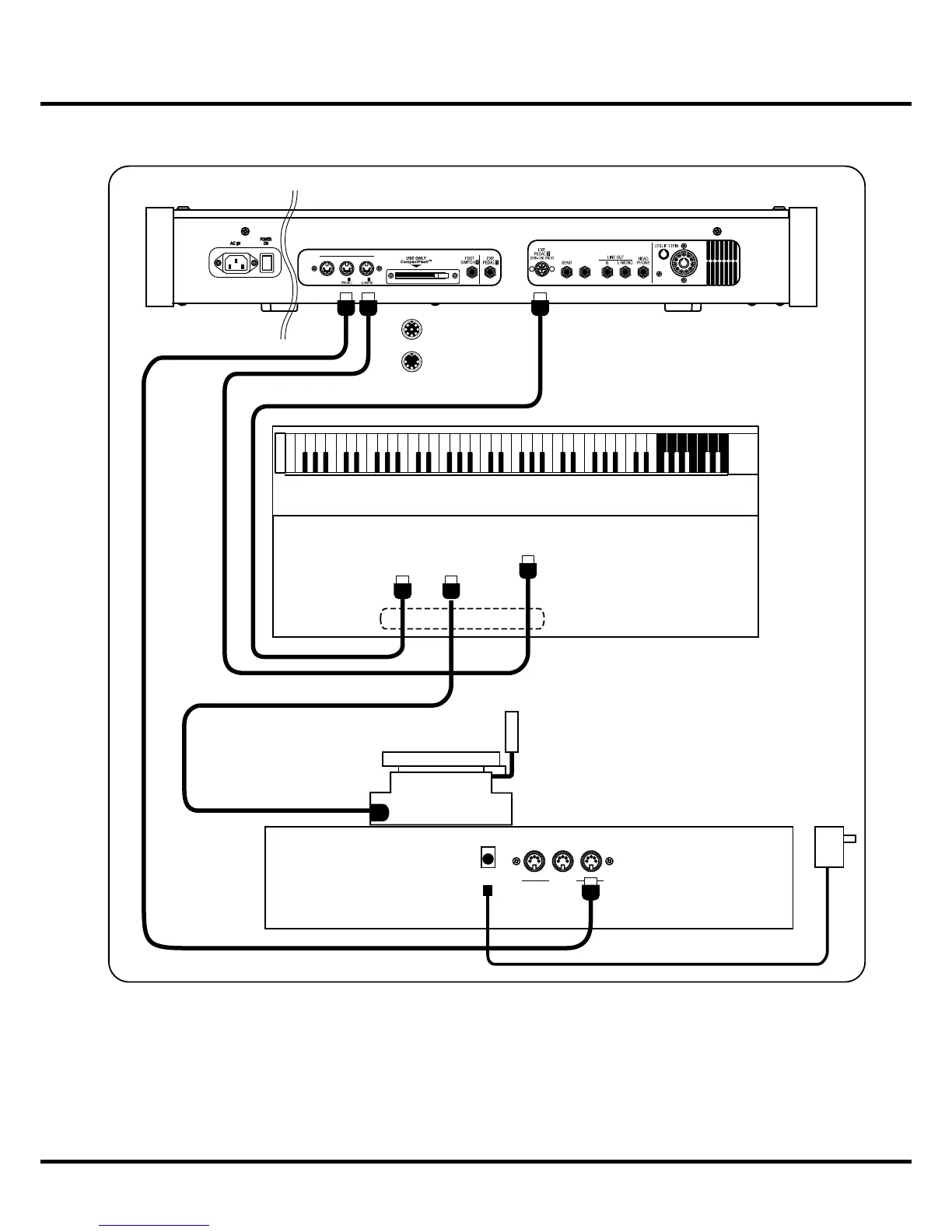

 A Hook-up example of the XK-3/3C and the XLK-3
IN 1 IN 2 OUT
MIDI
DC IN
OUT IN 1 IN 2
MIDI
RETURN/
EXT IN

MIDI PEDALBOARD

FROM
ORGAN
EXP. 2
TO
EXP.
PEDAL
MIDI
OUT
8-Pin Cable
MIDI Cable
MIDI Cable
MIDI Cable
8-Pin Cable
LOWER KEYBOARD 
Bottom Hole
EXPRESSION PEDAL

(optional)
AC Adaptor
 Connect the MIDI OUT on this unit to the MIDI IN (PEDAL) of the XK-3 by means of a MIDI cable.
 Connect the AC adaptor AD1-1508 / AD3-1508 to the DC IN on this unit.
  e power on this unit is not turned “On” or “O ” with the XK-3. Pull out the AC adaptor from the AC outlet a er
each use.
