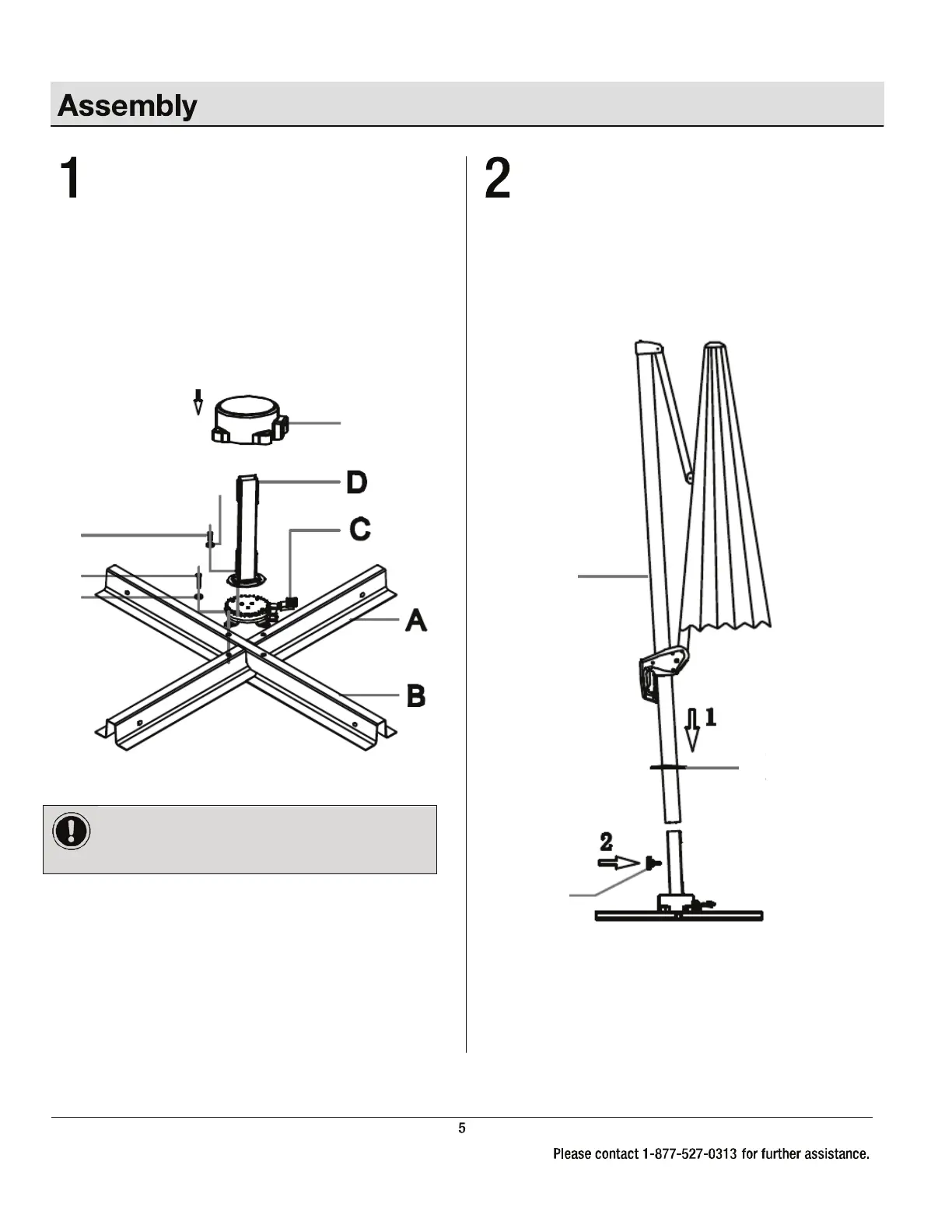

HAMPTON BAY A001N - Assembly; Step 1: Base Assembly; Step 2: Attach Main Umbrella

- Secure Cross Bases (A) and (B) with hardware.
- Secure Bottom Pole (D) and Base Cover (C) to Cross
Bases (A) and (B) with hardware.
www.homedepot.ca
- Insert Main Umbrella (E) into Bottom Pole (D).
- Tighten Main Umbrella (E) into Bottom Pole (D) with
Lock (G).
JJ
KK
LL
LL
I
E
H
G
NOTE: Secure cross base in desired position at this
time, with screws, weights, umbrella base blocks, ect (All
sold separately).
