Figure 10
Registration
slot
Figure 9
Lead Wires
Ball/downrod
Assembly
Canopy
Lock Pin
Couping cover
Canopy cover
Hitch Pin
Tighten
Screws
Firmly

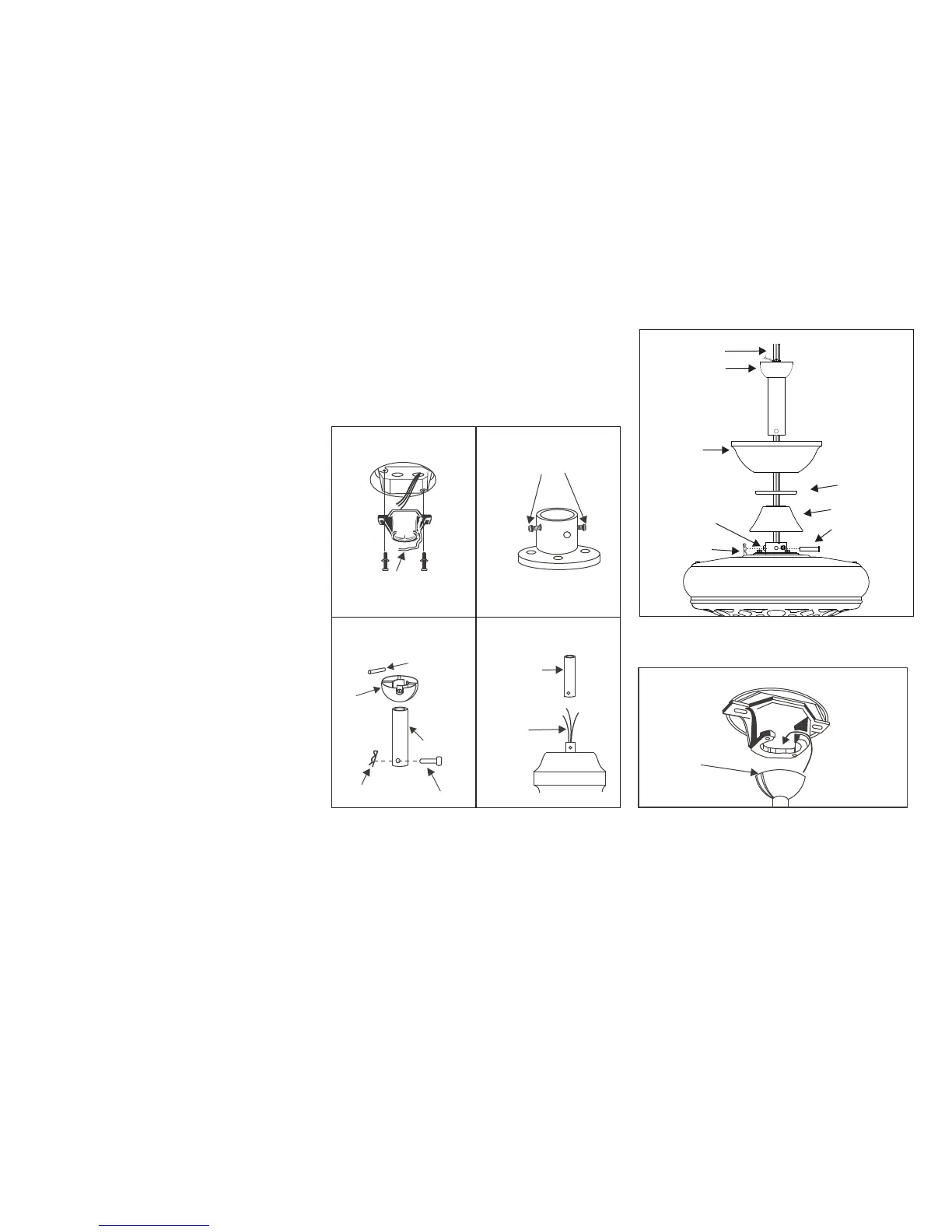

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1.
3.
Remove hanger ball
from downrod assembly by loosening set screw,
removing the cross pin, and sliding ball off rod.
(Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto downrod, make sure
that cross pin is in correct position, set screws
are tighten and wires are not twisted.
Secure the mounting bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
(Figure 5)
2. Loosen the two set screws from the
motor assembly. (Figure 6)
Remove the hitch pin and lock pin from
the downrod assembly.
6. Now lift motor assembly into position and place
hanger ball into mounting bracket. Rotate until the
check groove
should not rotate
if this is done correctly.
drops into the registration slot and
seats firmly. (Figure 10) Downrod
Figure 6
Downrod
Supply
wires
Figure 8
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Mounting bracket
Hitch
pin
Lock
pin
Set
screws
4
