10
Assembly - Attaching the Fan Blades
1

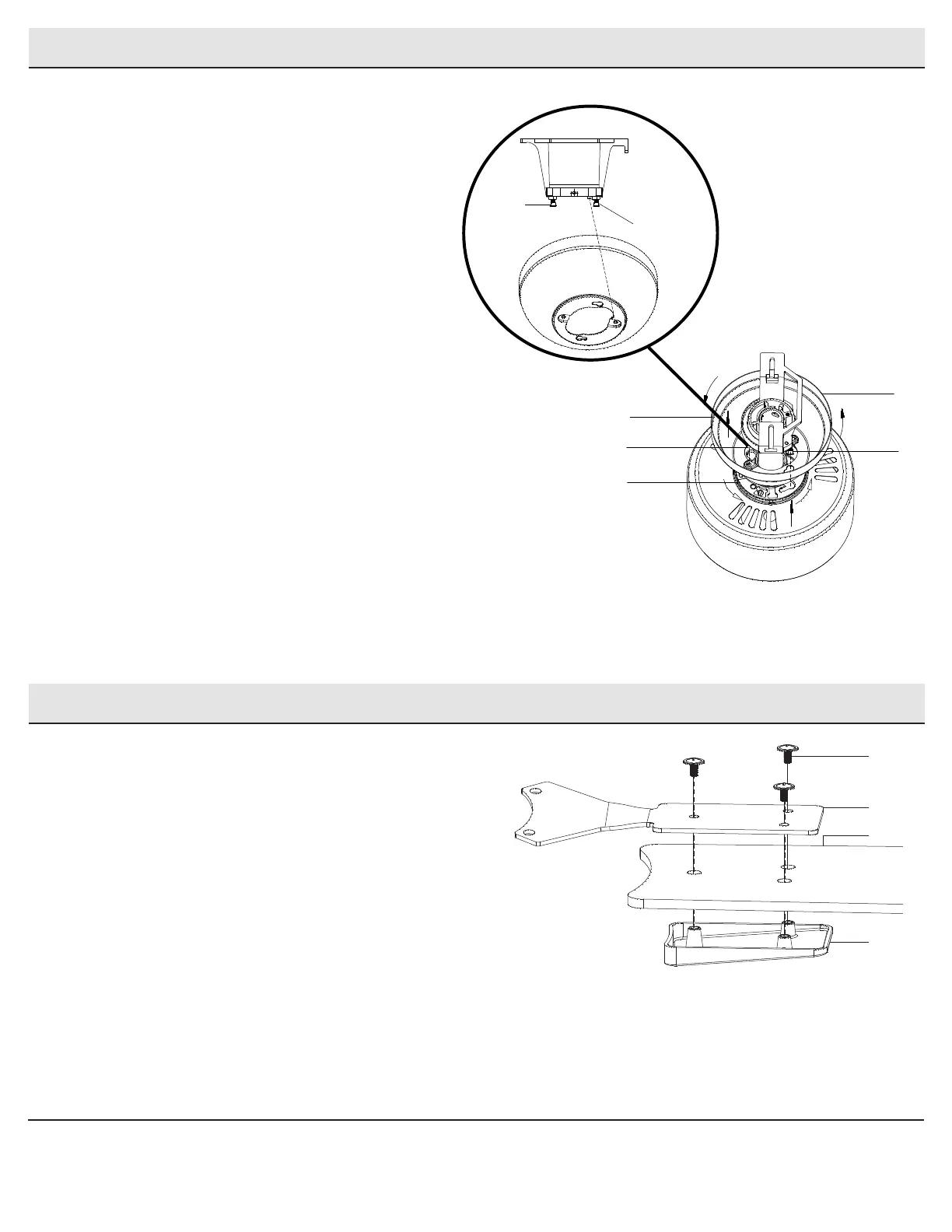

Attaching the canopy
□ Align the locking slots of the canopy (B) with the two screws
(PP) and alignment post (II) in the mounting bracket (A).
□ Push up the canopy (B) and turn clockwise until the alignment
post (II) engages to the round hole and the screws (PP) engage
to the key slots.
□ Firmly tighten the two mounting screws (PP).
□ Install the decorative bottom cover (C) by aligning the cover
slots with screws in the bottom of the canopy (B). Rotate the
bottom cover (C) clockwise to lock in place.
5
Attaching the blades to the
blade brackets
□ Attach a blade (K) to the blade bracket (J) by aligning the
holes on the blade support plate (L) with the holes on blades
(K) and blade bracket (J), inserting the screws (DD) into the
holes in the blade support plate (L) and through the blade (K)
and blade bracket (J).
□ Tighten each screw to secure the blade (K).
□ Repeat this step for each blade (K) and blade bracket (J).
Assembly - Hanging the Fan (continued)
A
PP
B
II
C
II
PP
DD
J
K
L
To Next Page
