HAMPTON BAY CRESTRIDGE - Chair Assembly Instructions; Assemble Right Arm Components; Assemble Left Arm Components

6
HOMEDEPOT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

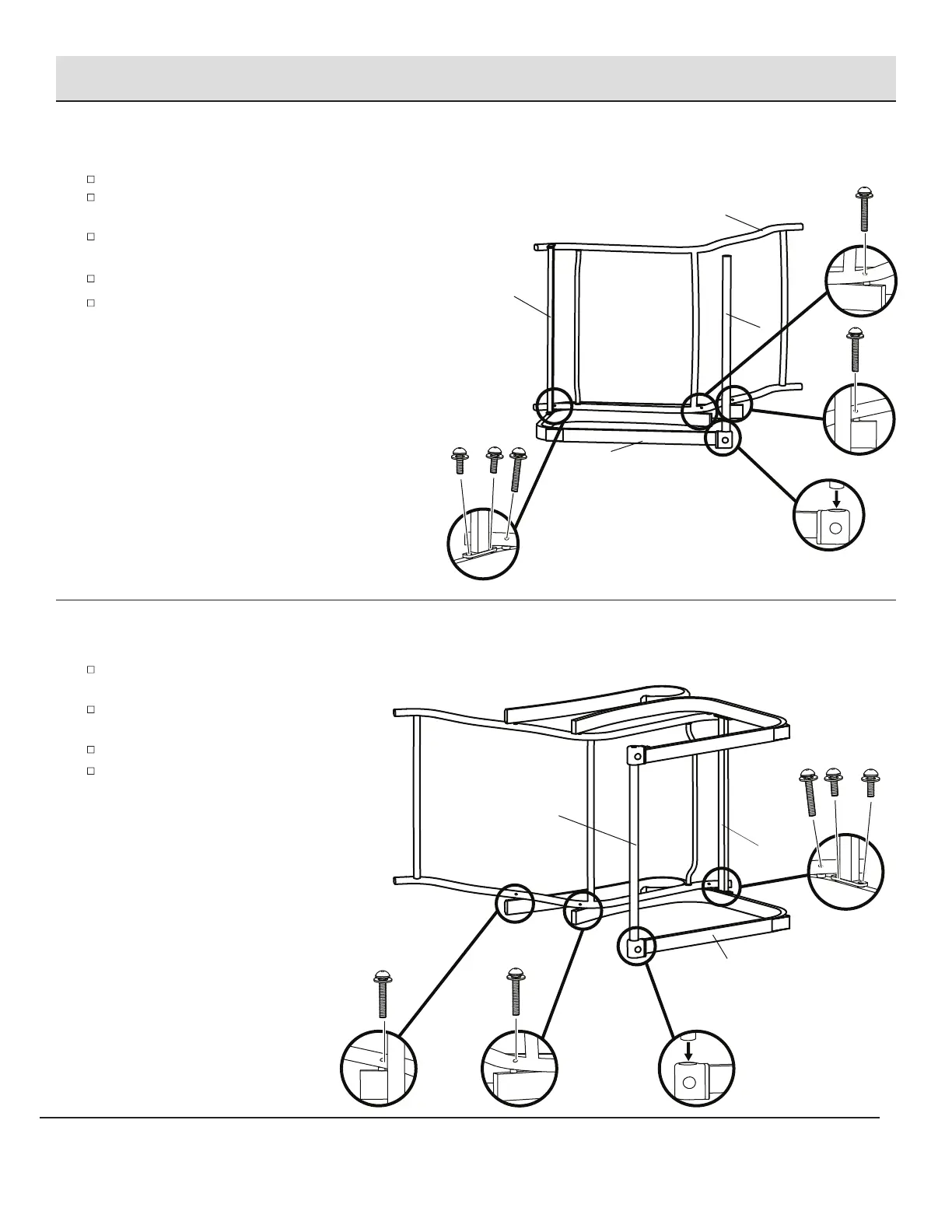

Chair Assembly
1
Connecting The Sling Bucket, Connector Bar And Support Bar To The Right Arm
2
Connecting The Sling Bucket, Connector Bar And Support Bar To The Left Arm
Attach the sling bucket (A) to the left arm (C)
using M6x30 combination bolts (BB).
Attach the connector bar (D) to the left arm (C)
using M6x15 combination bolts (AA).
Insert the support bar (E) to the left arm (C).
Do not tighten all bolts at this step.
Place the right arm (B) on a soft surface.
Attach the sling bucket (A) to the right arm (B)
using M6x30 combination bolts (BB).
Attach the connector bar (D) to the right arm (B)
using M6x15 combination bolts (AA).
Insert the support bar (E) to the right arm (B).
Do not tighten all bolts at this step.
D
A
E
BB
BB
B
AA
AA
BB
BB
AA
AA
BB
C
BB
BB
E
D
