HAMPTON BAY CRESTRIDGE - Table Assembly Instructions; Attach Table Legs and Support Tubes; Connect Table Leg Connector

8
HOMEDEPOT.CA
Please contact 1-855-HD-HAMPTON for further assistance.
Table Assembly
1
Attaching The Table Legs And The Support Tubes To The Table Rim
2
Attaching The Leg Connector To The Table Legs And Support Tubes

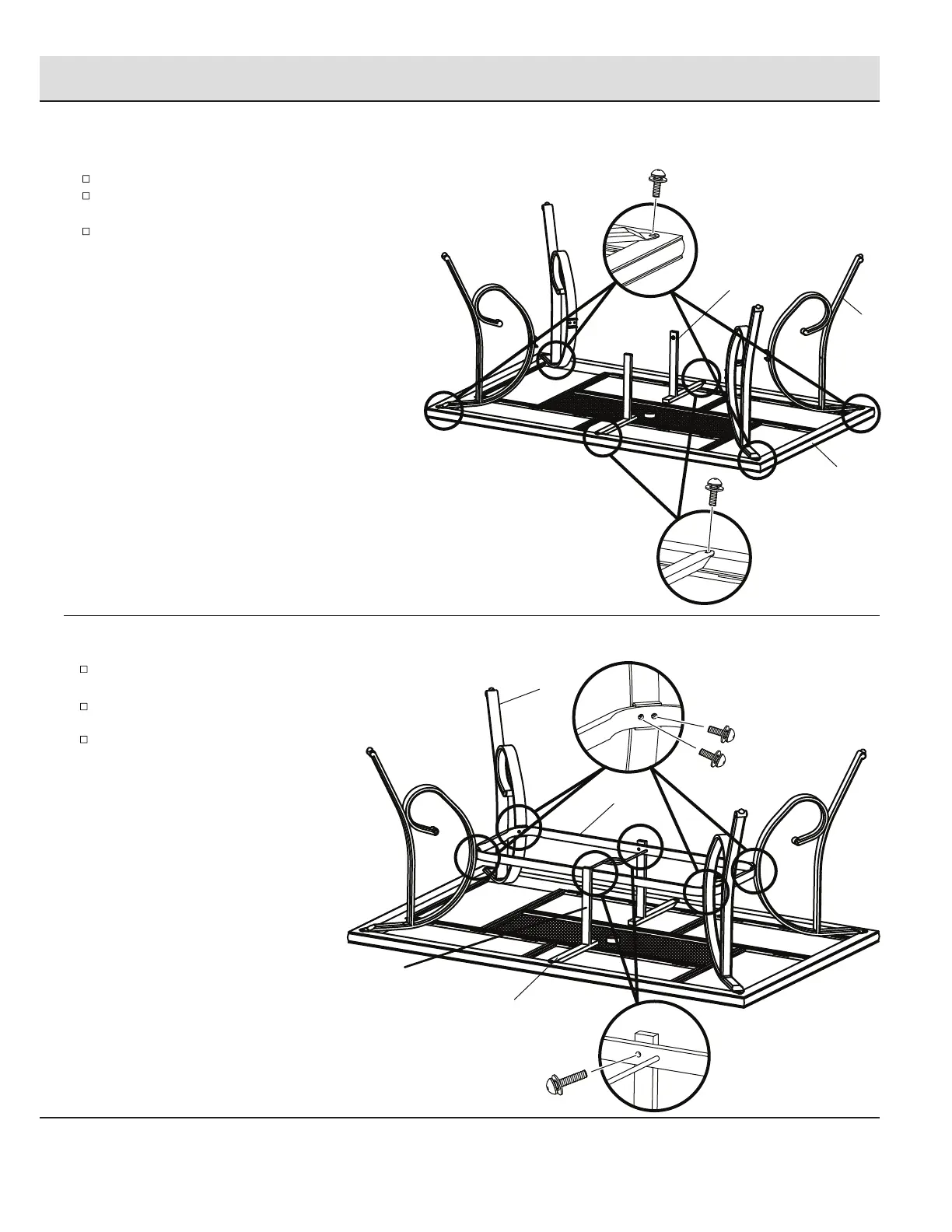

Place the table rim (F) upside down on a soft surface.
Attach the table legs (G) and support tubes (H) to the table rim (F)
using M6x15 combination bolts (AA).
Do not tighten all bolts at this step.
Attach the leg connector (I) to the table legs (G)
using M6x15 combination bolt (AA).
Attach the leg connector (I) to the support tubes (H)
using M6x25 combination bolts (DD).
Do not tighten all bolts at this step.
AA
AA
F
G
H
I
AA
AA
DD
F
G
H
