Assembly (continued)
10

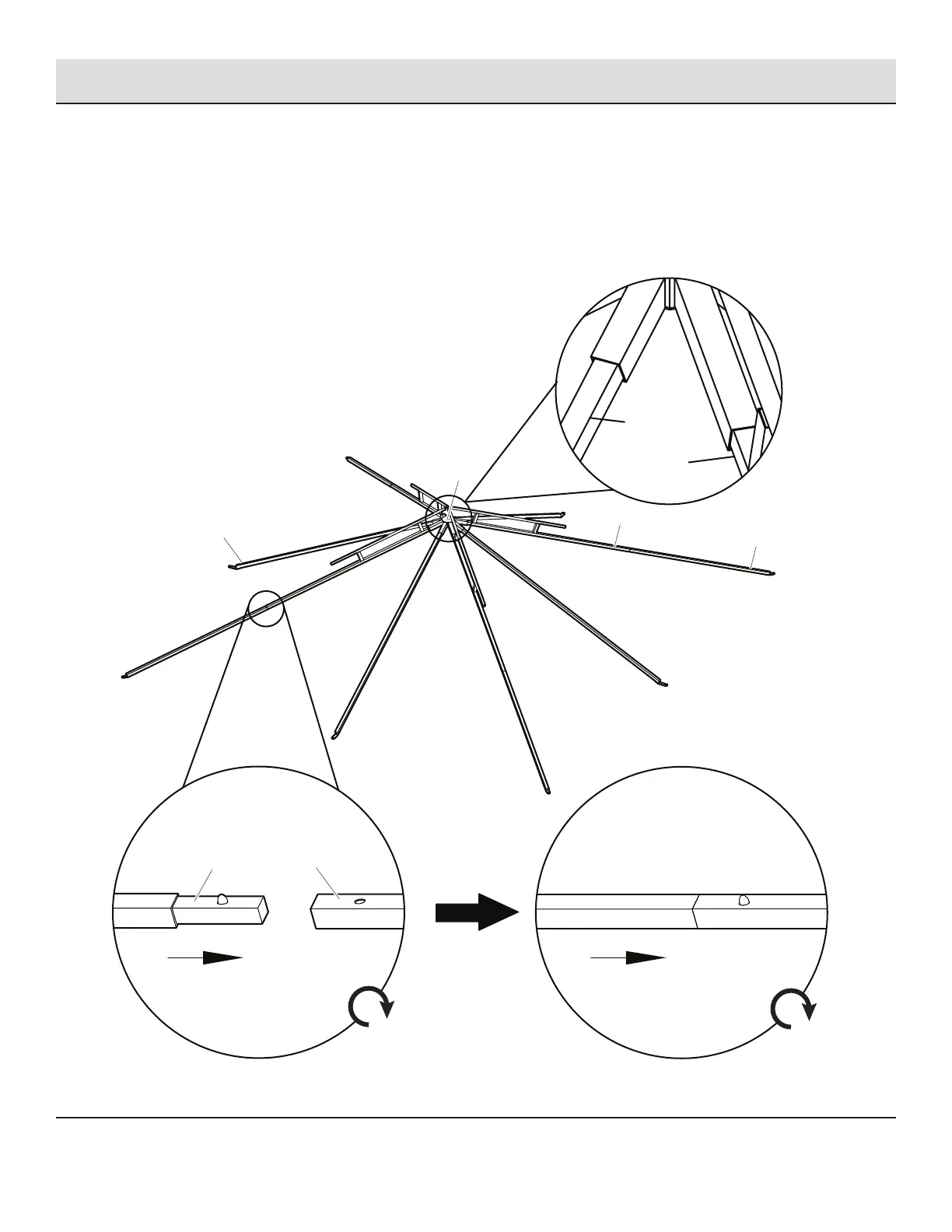

Assembling the roof
□ Connect a middle bar (Q) into every other connector on the top center connector (N) until the middle bars (Q) click into place.
□ Connect an upper corner bar (O) into the remaining connectors on the top center connector (N) until the upper corner bars (O)
click into place.
□ Slide a lower corner bar (P) onto the ends of each upper corner bar (O) until the lower corner bars (P) click into place.
x4
x4
P
O
Q
N
P
O
O
Q
