Assembly (continued)
3

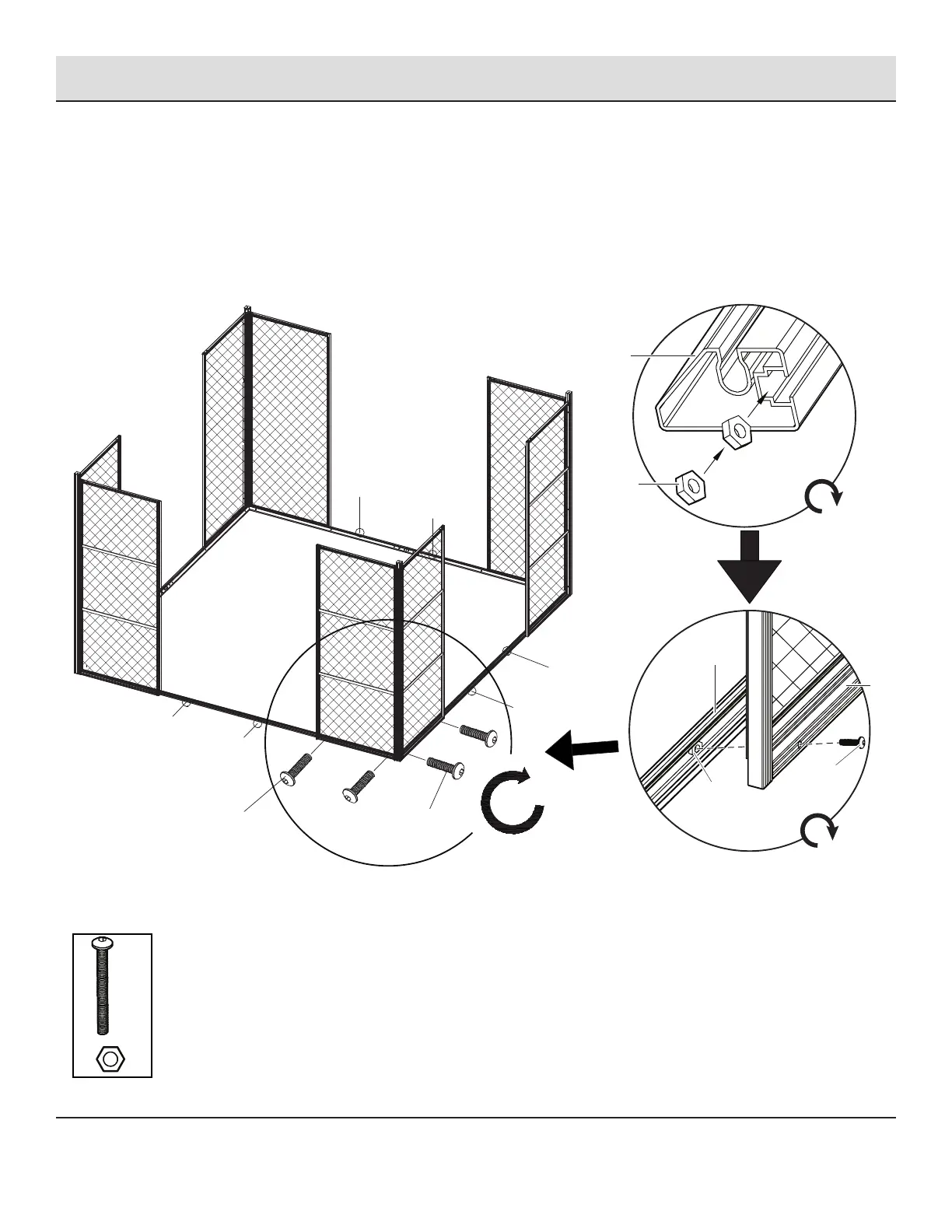

Attaching the lower slide rails
x4
H
I
I
H
H
I
DD
DD
DD
x16
EE
x16
□ Position the lower slide rail assemblies (H and I) along the bottom perimeter of the gazebo assembly.
□ Position two nuts (EE) into each left lower slide rail (H) and right lower slide rail (I), as shown.
□ Secure the lower slide rail assemblies (H and I) to the bottom corners of the screens (B and C) using M6x30 bolts (DD), ensuring
the bolts (DD) go through the screens (B and C) and into the nuts (EE) placed in the slide rail assemblies (H and I).
8
4
EE
H/I
H/I
C/B
DD
EE
