HAMPTON BAY FT-01C - Assembly Instructions; Assembling the Mesh Cover; Assembling the Stand

5 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
1

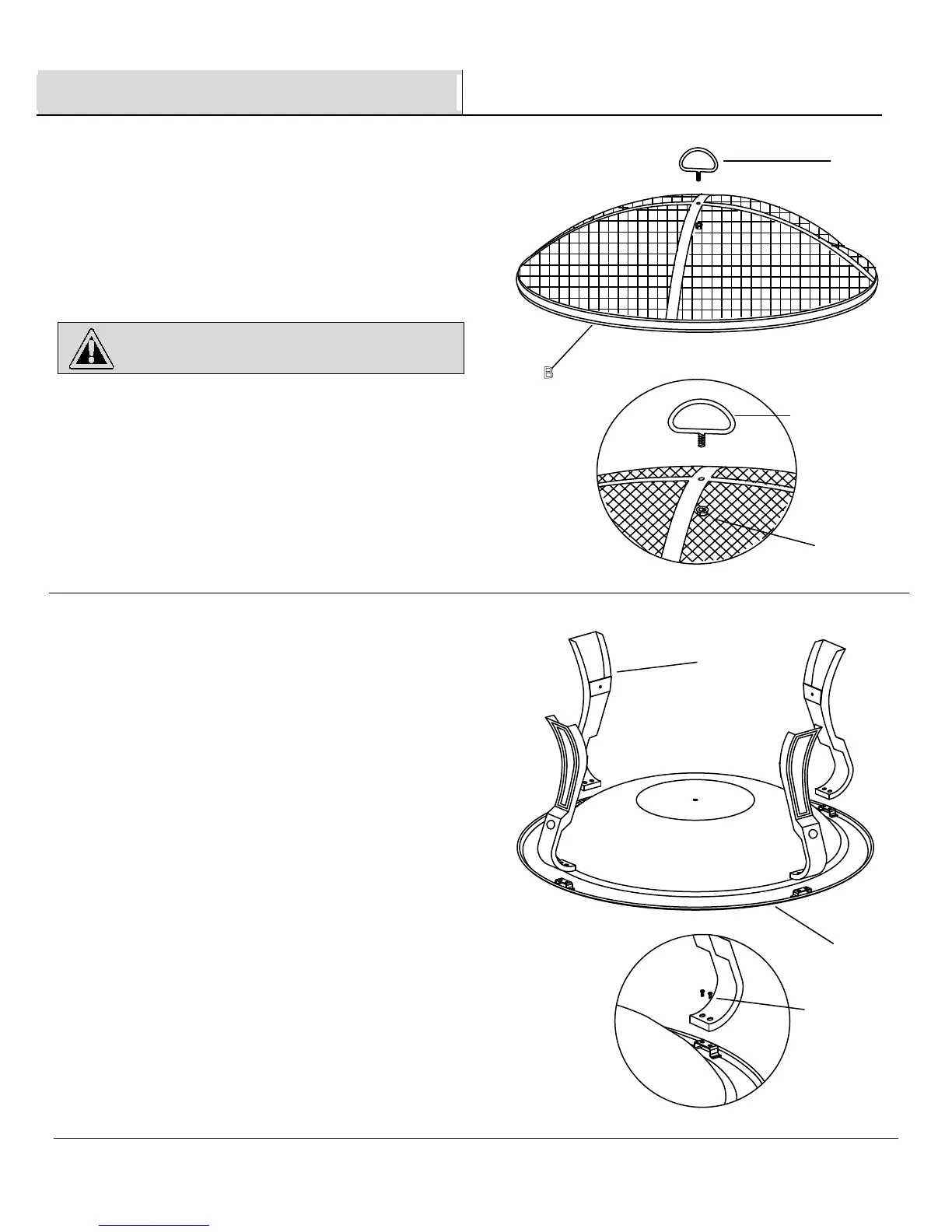

Assembling the mesh cover
□ Insert the handle (A) into the hole on the top of the
mesh cover (B).
□ Attach the handle (A) to the mesh cover (B) using a
nut (BB). Securely tighten with an M6 wrench (not
included).
CAUTION:
Wear gloves during assembly.
2
Assembling the stand
□ Attach the stand (E) to the fire bowl (D) using
M6x10mm bolts (AA).
□ Do not tighten the bolts at this step.
B
A
D
AA
B
Assembly
A
BB
E
