Assembly (continued)

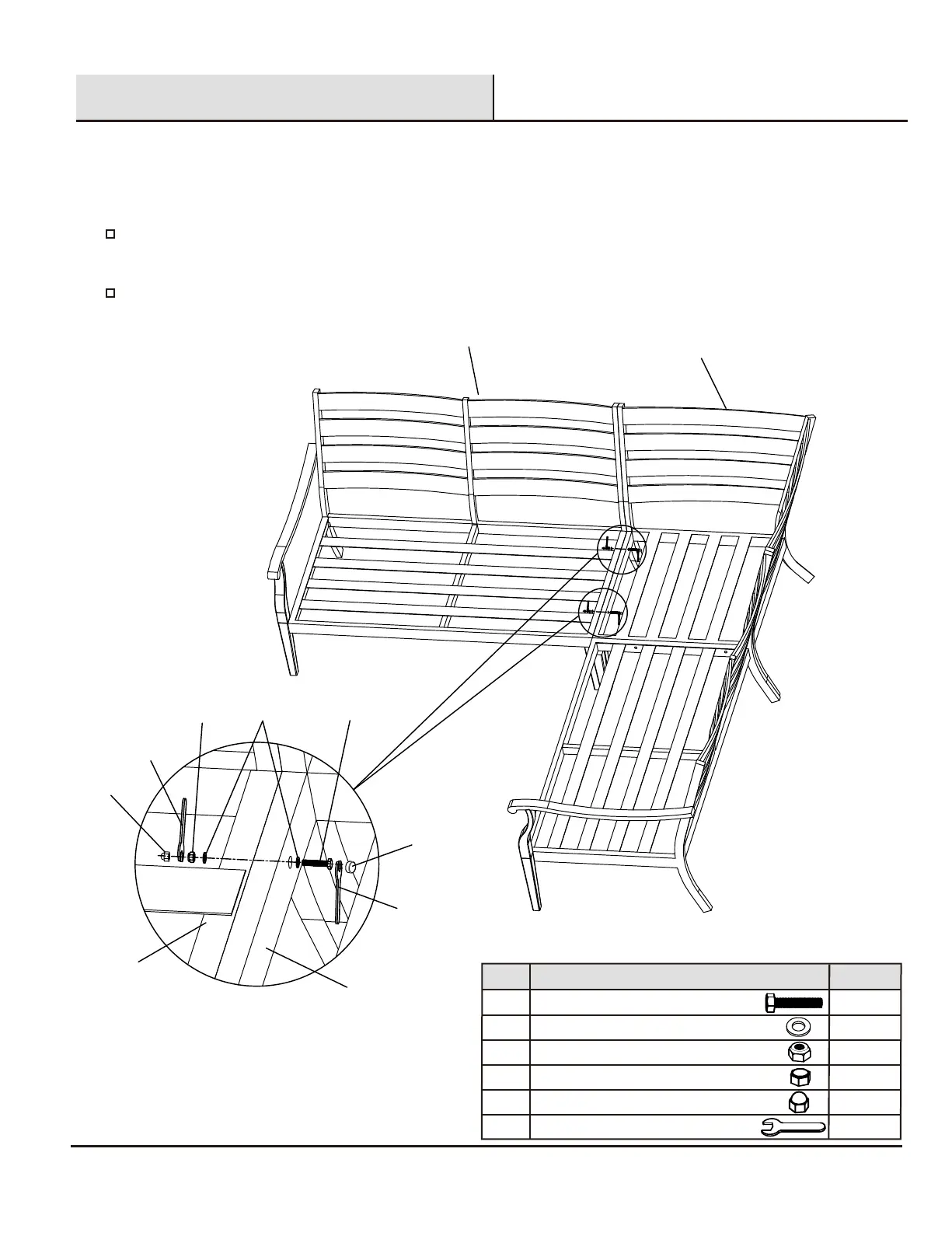

Attaching the right armed chair to the corner chair
Attach the right armed chair (C) and the corner chair (A) by using bolts (AA) with metal washers (BB) through the holes on the
right side of the corner chair seat (A) and the left side of the right armed chair seat (C), in the order of bolt (AA) matel washer (BB)
corner chair (A) right armed chair (B) matel washer (BB) and nut (CC).
Tighten all the bolts and nuts using the wrench (FF) and cover all bolts and nuts with provided caps (DD) and (EE).
C
A
A
C
AA
BB
CC
FF
FF
DD
EE
