WARNING
MAKE SURE THE TAB ON THE MOUNTING BRACKET PROPERLY SITS IN THE GROOVE IN THE
HANGER BALL BEFORE ATTACHING THE CANOPY TO THE BRACKET BY TURNING THE HOUSING
UNTIL IT DROPS INTO PLACE.
Tuck connections neatly into ceiling outlet box.
Slide the canopy up to mounting bracket and place the key hole on the canopy over the screw on the
mounting bracket, turn canopy until it locks in place at the narrow section of the key holes. (Fig. 10)
Align the circular hole on canopy with the remaining hole on the mounting bracket, secure by
tightening the two set screws. Note: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug.
1.
2.
3.
Finishing the Fan Installation

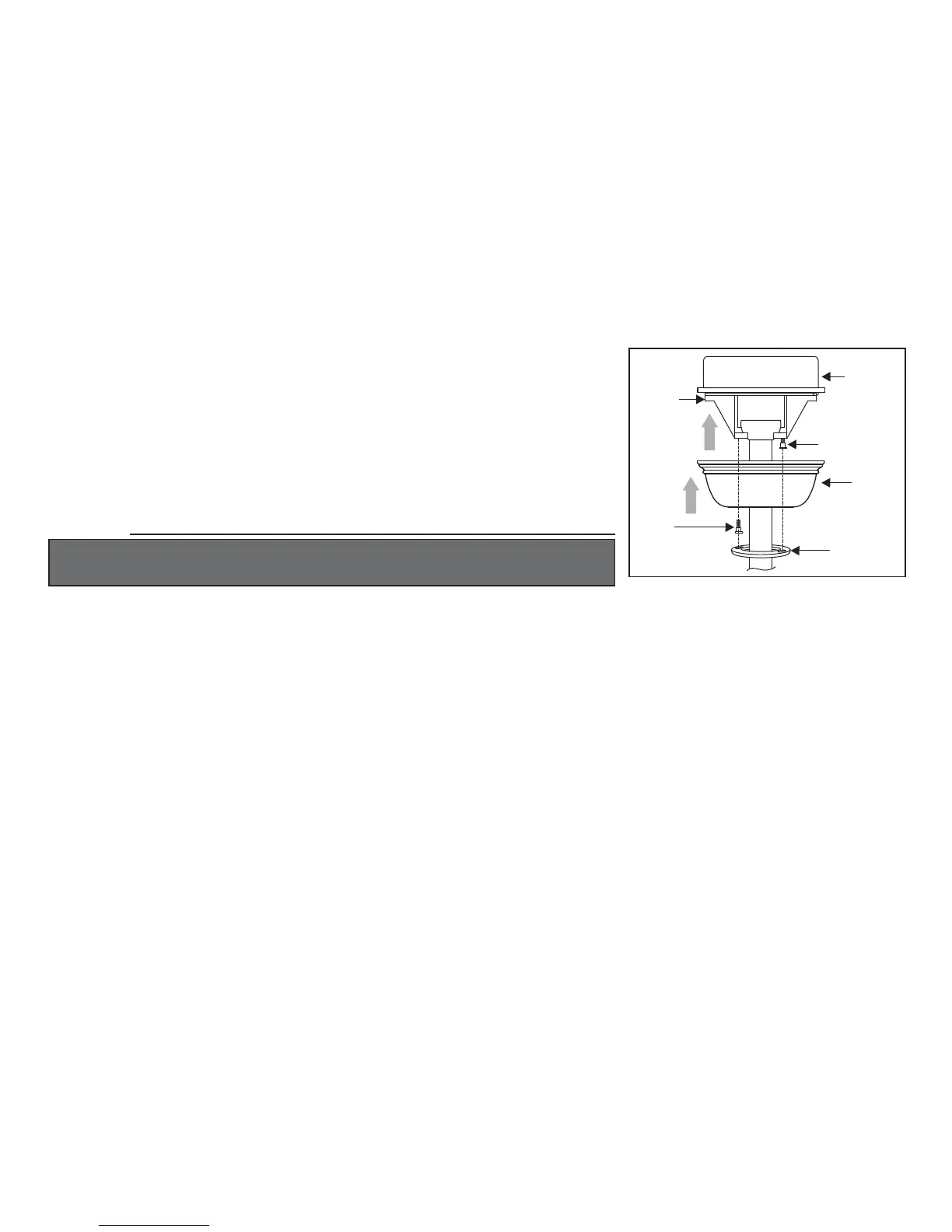

Figure 10
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover
