HAMPTON BAY SADLER - Product Assembly Instructions; Attach Support to Legs; Attach Upper Support Ring; Attach Poker Bracket to Mesh Cover

5
1

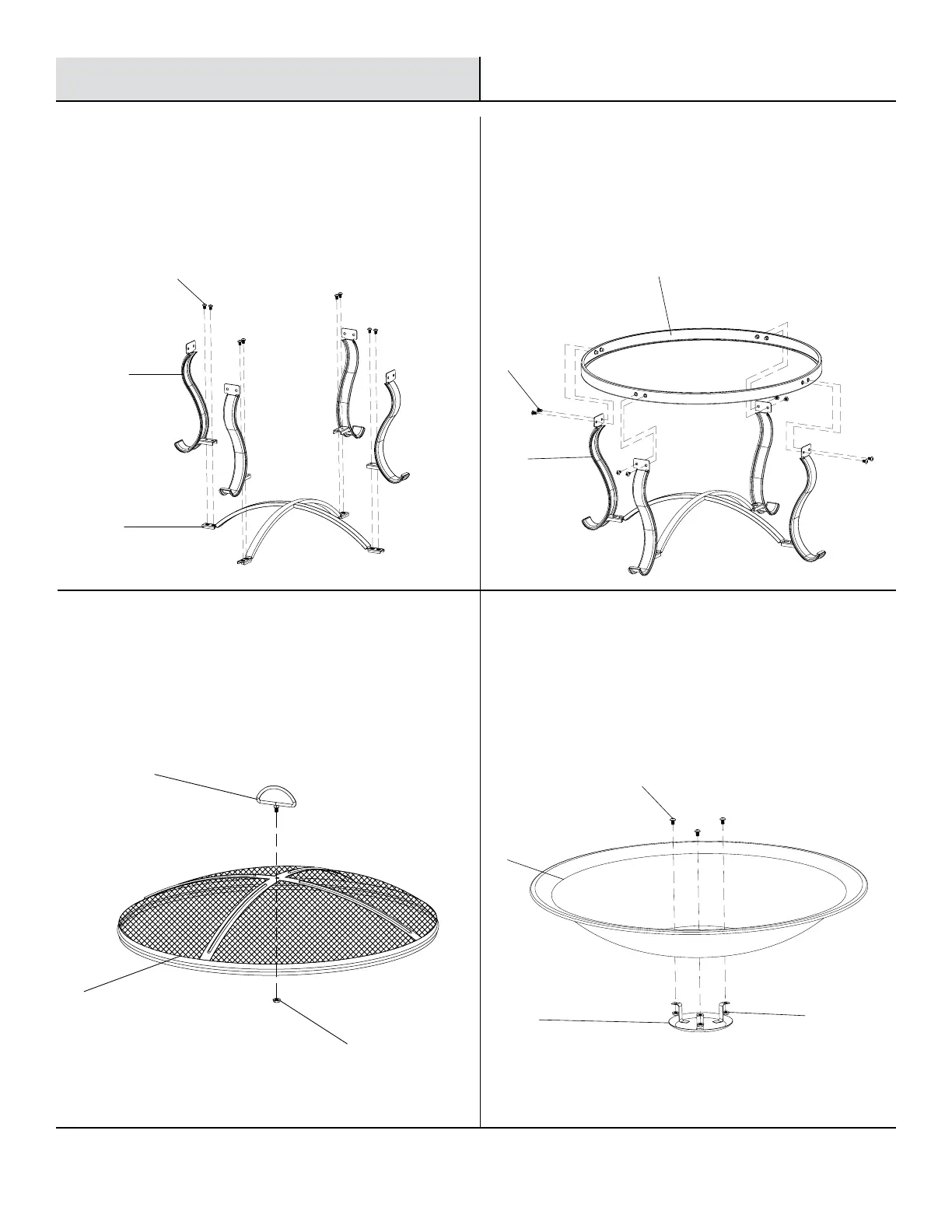

Attaching the support to the legs
c
Attach the legs (G) to the lower support (H) using eight M6X10mm
bolts (AA).
c
Hand tighten all of the bolts.
4
Attaching the ash catcher
c
Attach the ash catcher (E) to the fire bowl (D) using three M5X10mm
bolts (BB) and three M5 nuts (CC).
Assembly
3
Attaching the poker bracket to the mesh cover
c
Insert the poker bracket (A) into the hole in the top of the mesh cover
(B). Use the wrench (GG) to secure the M6 nut (DD) to the underside
of the mesh cover.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
2
Attaching the upper support ring
c
Attach the legs (G) to the upper support ring (F) using eight
M6X10mm bolts (AA).
c
Tighten all of the bolts from steps 1 and 2 with the wrench (GG).
AA
G
H
F
AA
G
A
B
DD
BB
E
CC
D
