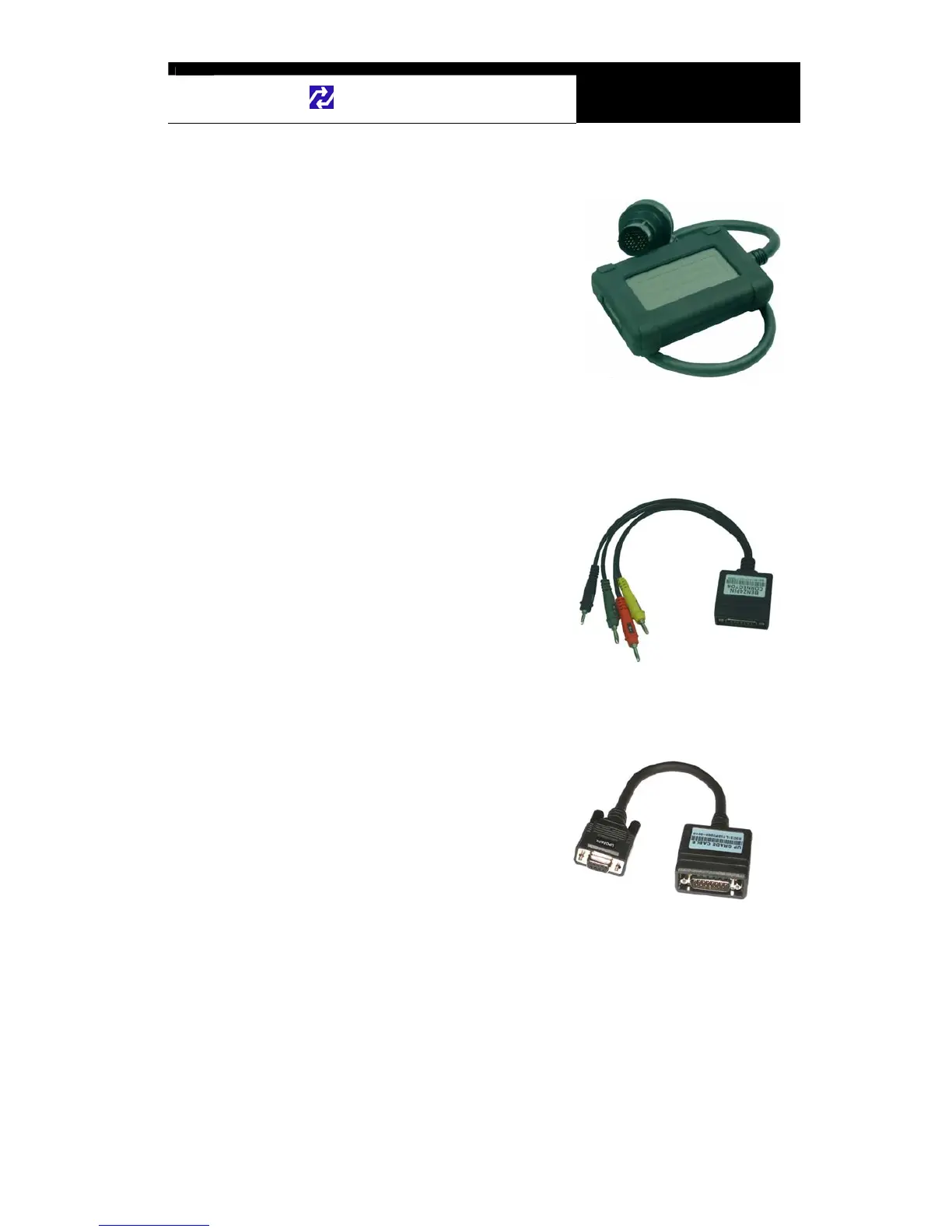

21. Mercedes Benz 38Pin Adapter
(P/N. 3001-0015)
Used for the communication with
Mercedes Benz cars equipped with 38Pin
vehicle side DLC.
Applied with C202, CLK208, E210, E124,
S140, SL129, SLK170, G463, G461.
22. Mercedes Benz 4Pin Adapter (P/N. 3001-0009)
Used for the communication with Mercedes Benz cars equipped with
8Pole or 16Pole vehicle side DLC.
(Red: Battery +, Gray: K Line,, Yellow :
Ignition check, Black: Ground)
Applied with C201, E124, S126, SL107,
G463
23. Upgrade cable
(P/N. 3000-0010)
To be connected to main data link
cable for updating your
MULTISCAN P2 software by
downloading updated codes from
your PC. Refer to the related
chapter in this manual.
