In addition to the indicator lights on the lift, the
charger has an indicator light as well. When
ORANGE, it indicates that the that the lift is on
the charger and charging. Refer to figure 9A.
When the lift is fully charged light on the
charger will change to GREEN.
Note: In some circumstances it may be neces-
sary to mount the charger out of view.

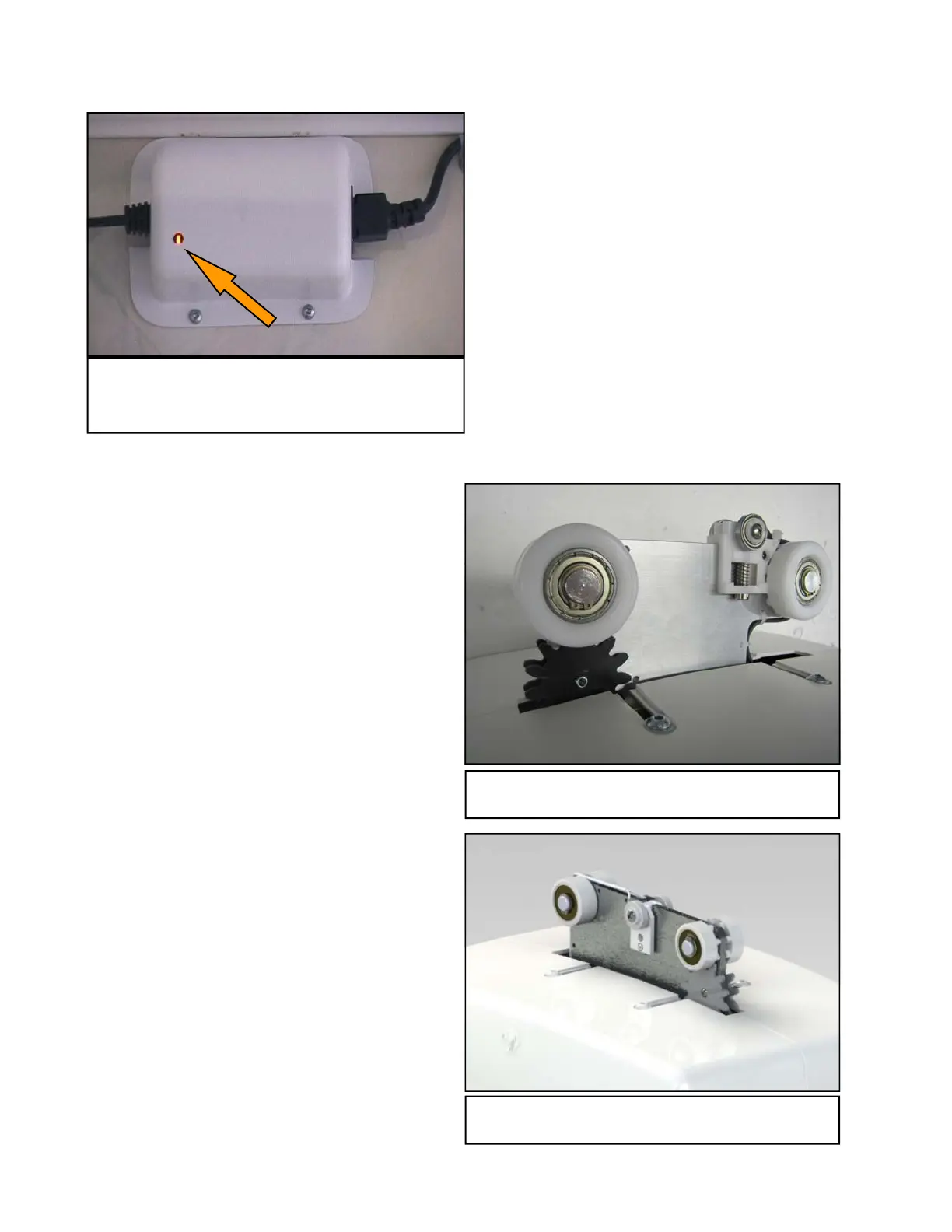

Figure 11A - Charger with ORANGE light indicating that
the lift is connected and charging. When the lift is fully
charged this light will turn GREEN.
Constant Charger
The constant charger system has two metal
roller bearings (Figure 11B & C) that contact
charging strips that run along the inside of the
track. When the lift is over a section of track
with charging strips it will automatically start to
charge and the light be ORANGE.
Note: Constant charge units don’t turn off,
since they are constantly connected to the
charger.
The Constant Charger can be attached to all
operating C-1000 lifts. The batteries can
remain connected to the charger indefinitely,
since the charger has a built-in regulator, the
danger of overcharging is eliminated.
Figure 11B - The Constant Charger attachment to the C-
1000 patient lifts.
Figure 11C - The Constant Charger attachment to the C-
1000 (Rev.G) patient lifts.
