38 HANDICARE SIMPLICITY INSTALLATION MANUAL
Angle 37° 38° 39° 40° 41° 42° 43° 44° 45° 46° 47° 48° 49° 50°
Horizontal Track Overhang* A 141 141 140 139 138 138 137 136 135 135 134 133 132 132
Ground Track Intrusion B 352 349 346 343 340 336 333 330 327 324 321 318 315 312
Top Nose to Ground C
Track Extension from Nose* D 178 180 182 184 186 189 191 193 195 198 200 202 204 206
Track Cut Length (
C
+
D
) E
Angle 45°
A 135
B 327
C 3250 D 195
E 3445
*Minimum figures – when top intrusion is critical.
Example

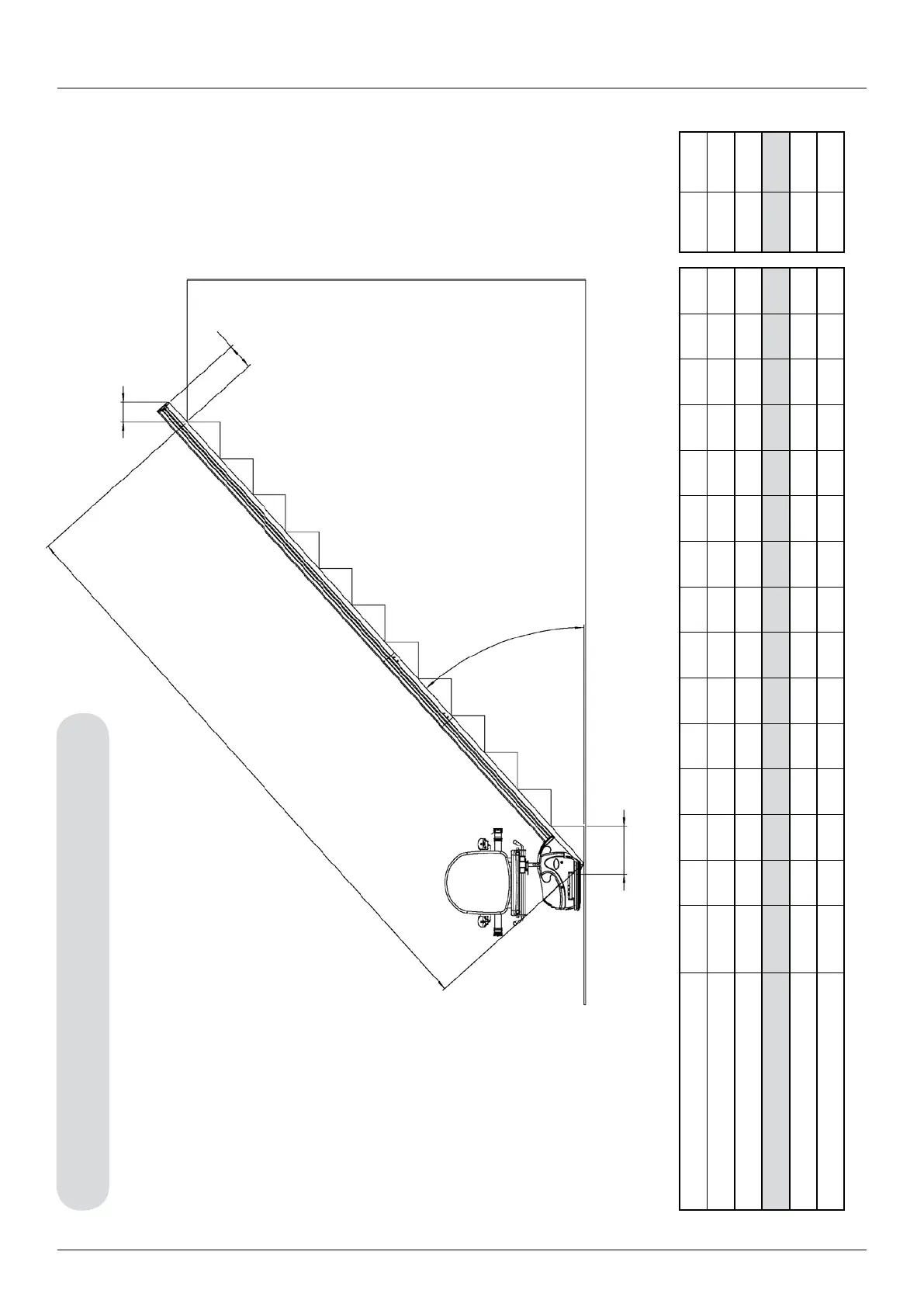

Simplicity – track details
Appendix 5
Stair Angle
A
B
C
D
