H&S 175 - Page 29

FIGURE 5
H &S MODEL 175
HYDRAULIC TAILGATE

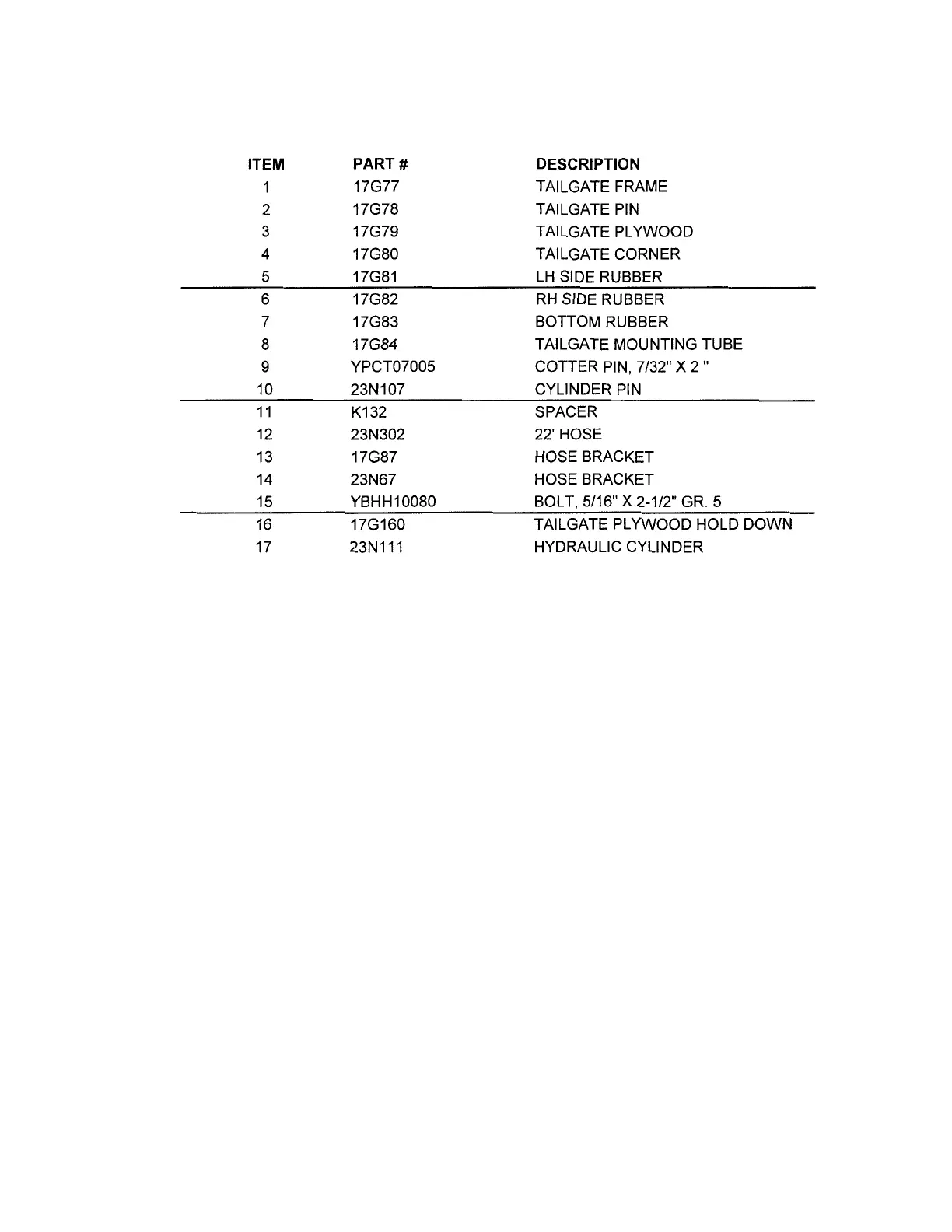

ITEM PART NO. DESCRIPTION
1. 17G77 Tailgate Frame
2. 17G78 Tailgate Pin
3. 17G79 Tailgate Plywood
4. 17G80 Tailgate Corner
5. 17G81 LH Side Rubber
6. 17G82 RH Side Rubber
7. 17G83 Bottom Rubber
8. 17G84 Tailgate Mounting Tube
9. 23N108 Cotter Pin
10. 23N107 Cylinder Pin
11. K132 Spacer
12. 23N302 22’ Hose
13. 17G87 Hose Bracket
14. 23N67 Hose Bracket
15. S84 5/16’’ x 2-1/2’’ Bolt GR.5
16. 17G160 Tailgate Plywood Hold down
17. 23N111 Hydraulic Cylinder
-29-
