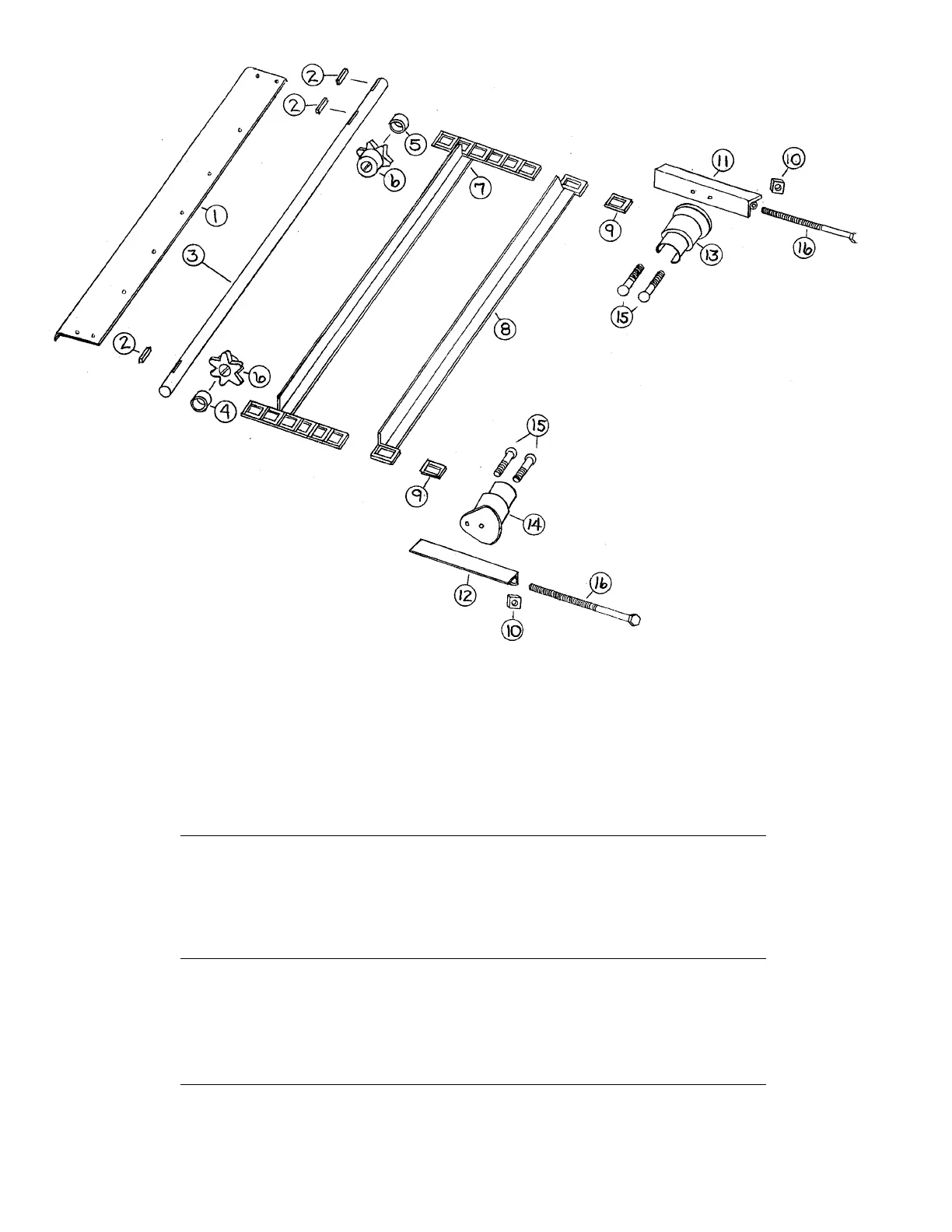

H&S 175 - FIGURE 6: APRON CHAIN ASSEMBLY

ITEM PART NO. DESCRIPTION
1. 17G88 Drive Shaft Shield
2. A32 3/8’’ x 1-3/8’’ Sq. Key
3. 17G89 Drive Shaft
4. 17G90 Spacer
5. 17G91 Spacer
6. 23N122 6T Sprocket
7. 17G92 Apron Chain 15 Slats, 188 Links
8. 17G93 Slat w/Att. Links
9. S55 T-Rod Standard Link
10. A20 1/2’’ Sq. Nut
11. 17G94 Chain Slide Angle LH
12. 17G95 Chain Slide Angle RH
13. 17G96 T-Rod Slide LH
14. 17G97 T-Rod Slide RH
15. 17G98 1/2’’ x 2-1/2’’ Carriage Bolt GR.5
16. A7 1/2’’ x 9-1/2’’ Bolt
-30-
FIGURE 6
H&S MODEL 175
APRON CHAIN ASSEMBLY
