H&S 175 - Page 31

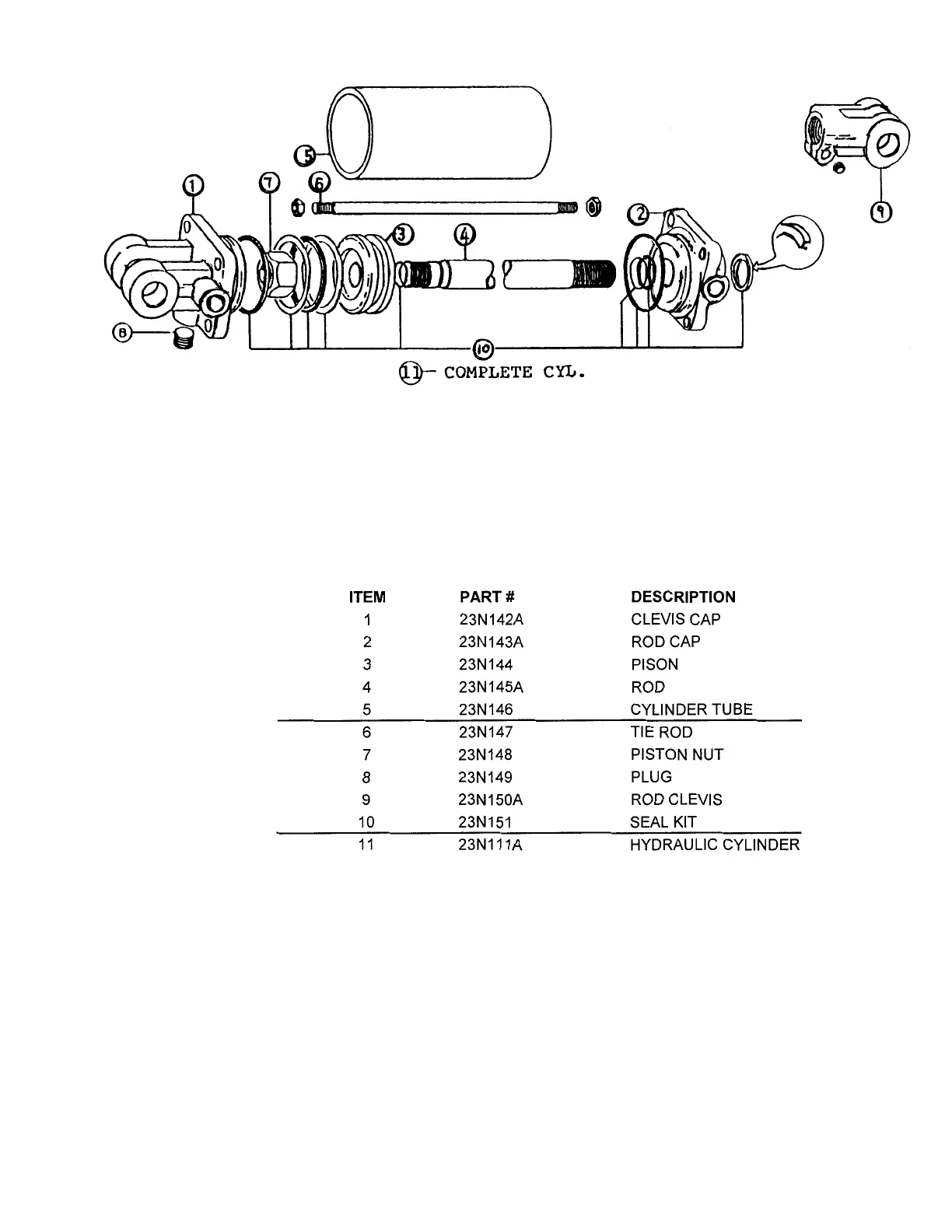

FIGURE 7
H&S MODEL 175
HYDRAULIC CYLINDER
ITEM PART NO. DESCRIPTION
1. 23N142A Clevis Cap
2. 23N143A Rod Cap
3. 23N144 Piston
4. 23N145A Rod
5. 23N146 Cylinder Tube
6. 23N147 Tie Rod
7. 23N148 Piston Nut
8. 23N149 Plug
9. 23N150A Rod Clevis
10. 23N151 Seal Kit
11. 23N111A Hydraulic Cylinder
-31-
