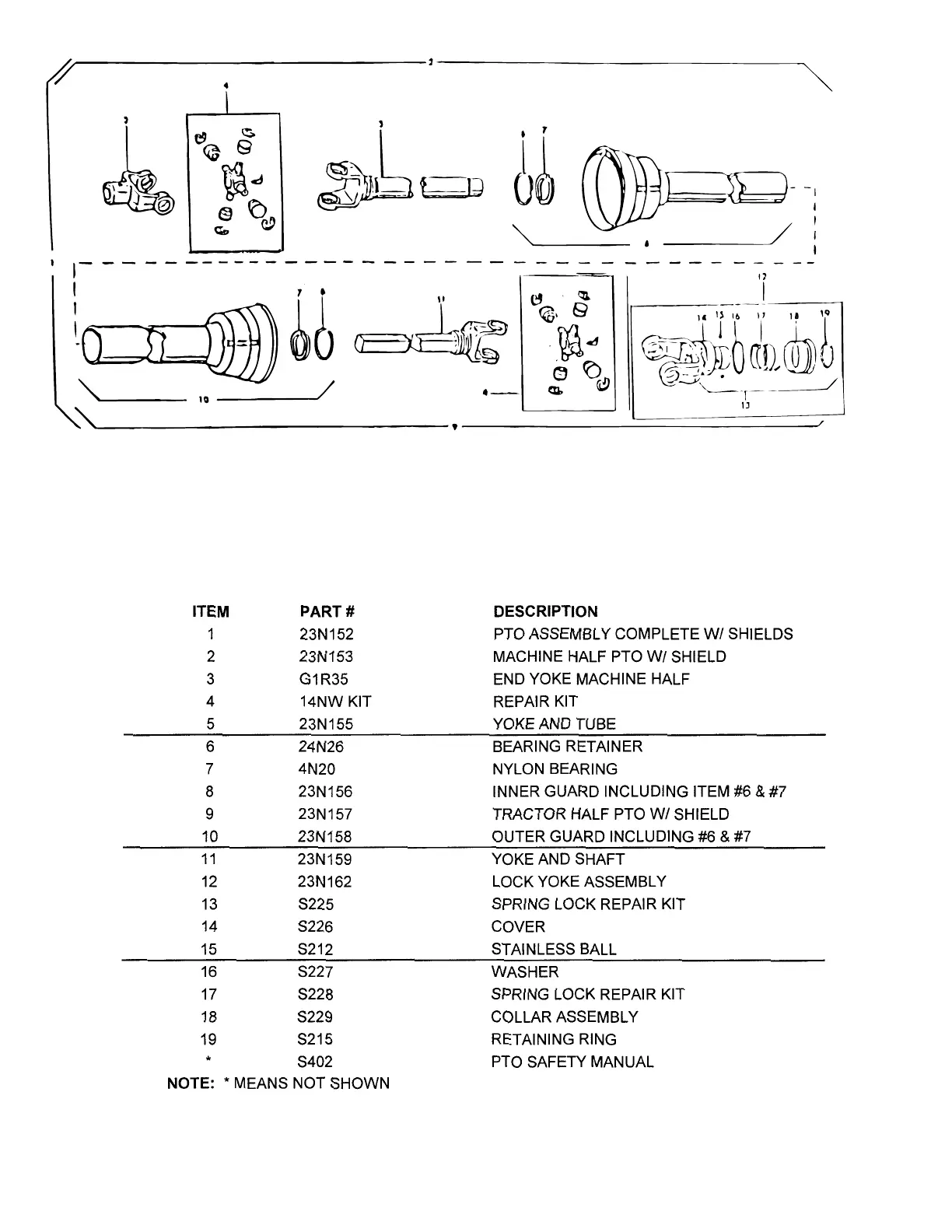

H&S 175 - FIGURE 9: PTO ASSEMBLY

FIGURE 9
H&S MODEL 175
PTO ASSEMBLY
ITEM PART NO. DESCRIPTION
1. 23N152 PTO Assembly Complete w/Shields
2. 23N153 Machine Half PTO w/Shield
3. G1R35 End Yoke Machine Half
4. 14NW KIT Repair Kit
5. 23N155 Yoke and Tube
6. 24N26 Bearing Retainer
7. 4N20 Nylon Bearing
8. 23N156 Inner Guard Including Item #6 & #7
9. 23N157 Tractor Half PTO w/Shield
10. 23N158 Outer Guard Including #6 & #7
11. 23N159 Yoke and Shaft
12. 23N162 Lock Yoke Assembly
13. S225 Spring Lock Repair Kit
14. S226 Cover
15. S212 Stainless Ball
16. S227 Washer
17. S228 Spring
18. S229 Collar Assembly
19. S215 Retaining Ring
* S402 PTO Safety Manual
NOTE: * (Means Not Shown)
-34-
