H&S 175 - Page 35

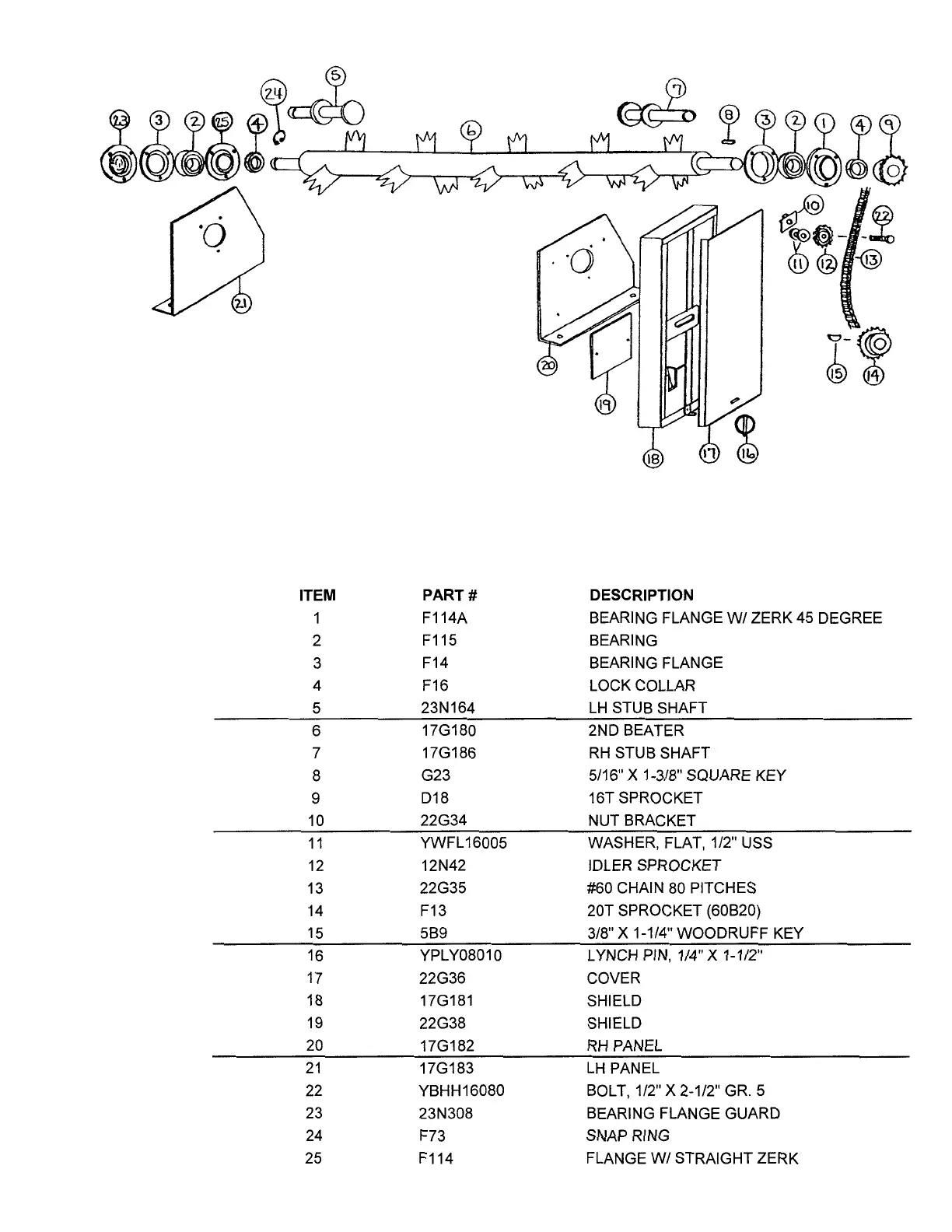

FIGURE 10
H&S MODEL 175
OPTIONAL TOP BEATER
ITEM PART NO. DESCRIPTION
1. F114A Bearing Flange w/Zerk 45°
2. F115 Bearing
3. F14 Bearing Flange
4. F16 Lock Collar
5. 23N164 LH Stub Shaft
6. 17G180 2nd Beater
7. 17G186 RH Stub Shaft
8. G23 5/16’’ x 1-3/8’’ Sq. Key
9. D18 16T Sprocket
10. 22G34 Nut Bracket
11. A34 1/2’’ Washer
12. 12N42 Idler Sprocket
13. 22G35 #60 Chain 80 Pitches
14. F13 20T Sprocket (60B20)
15. 5B9 3/8’’ x 1-1/4’’ Woodruff Key
16. F56 Clip Pin
17. 22G36 Cover
18. 17G181 Shield
19. 22G38 Shield
20. 17G182 RH Panel
21. 17G183 LH Panel
22. BFR375 1/2’’ x 2-1/2’’ Bolt GR.5
23. 23N308 Bearing Flange Guard
24. F73 Snap Ring
25. F114 Flange w/Straight Zerk
