LUBRICATION GUIDE MODEL 125
The operator should become familiar with all
lubrication points and establish a systematic
routine to insure complete and quick lubrication
of the machine.
GEARBOX–Before using your new machine,
check the oil level in the gearbox. Keep the
gearbox filled to the oil level plug on the side of
the gearbox as shown, with #80 or #90 gear
lube.
DRIVE CHAINS–Lubricate the drive chains with
a light machine oil. Keep chains aligned with
sprockets. This will lengthen the life of the
sprockets and chain. Lubricate chains often.
-17-
Shields Removed for Clarity
DO NOT CLEAN
OR WORK ON THIS
MACHINE WITHOUT
FIRST DISENGAGING
POWER AND
SHUTTING OFF
TRACTOR ENGINE.

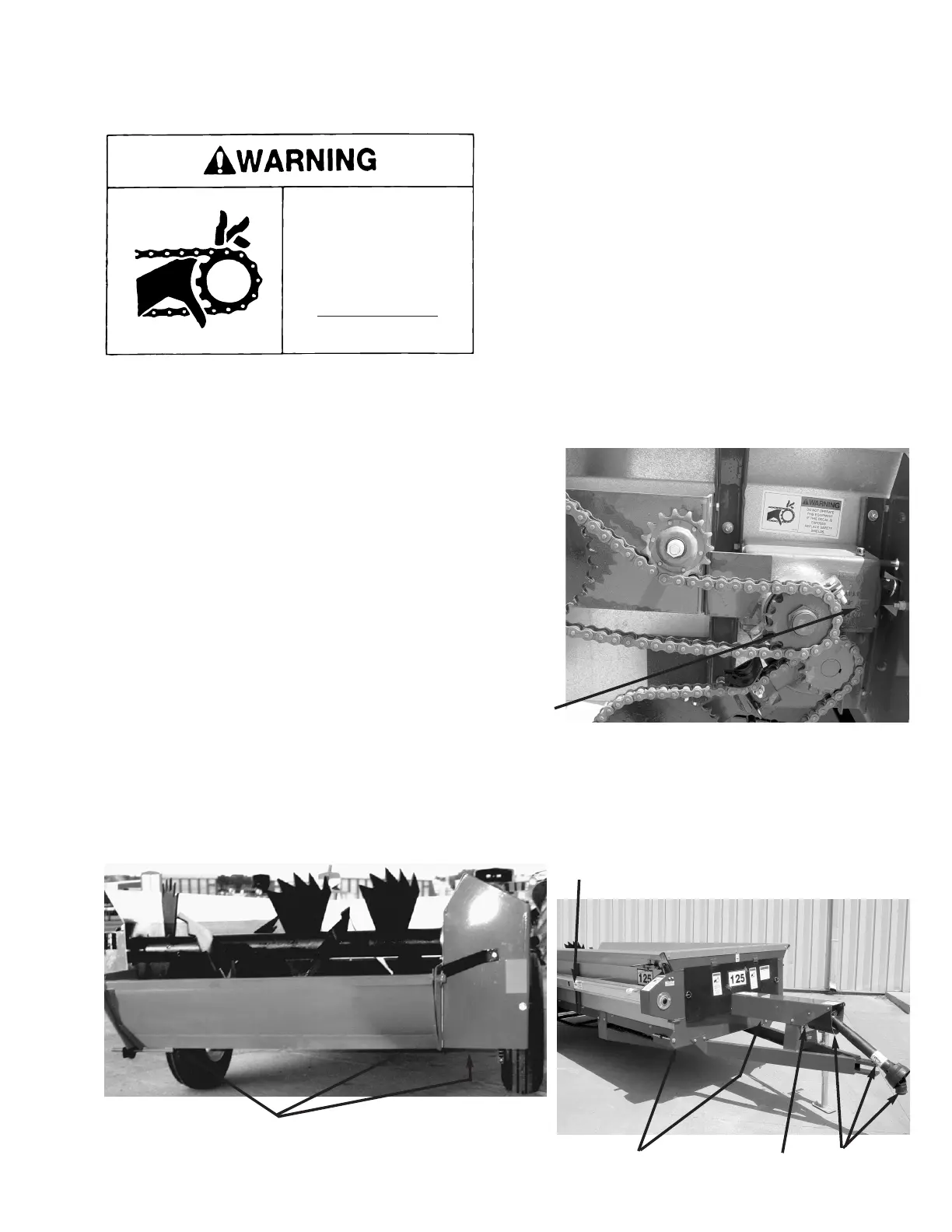

GREASE FITTINGS – (Location)
A. (3) PTO Shaft
B. (1) Front Jackshaft
C. (1) Side Shaft
D. (3) Drive Shaft
E. (2) Front Idler Sprockets
D
E B A
OIL
LEVEL
C
There are 10 grease fittings on this spreader. If these are
lubricated properly and often enough it will prolong the life
of the spreader (Grease every 20 hours, also before stor-
age and after power washing). Make certain that the
grease fittings are free of paint and dirt, force a high qual-
ity grease into them until the grease comes out around the
shaft on the sleeve type bearings. On the sealed ball
bearings, grease should be added slowly until a slight
bead forms at the seals, indicating the correct amount of
lubricant. Wipe off excess grease to prevent the accumu-
lation of chaff and grit around the bearings.
