-17-

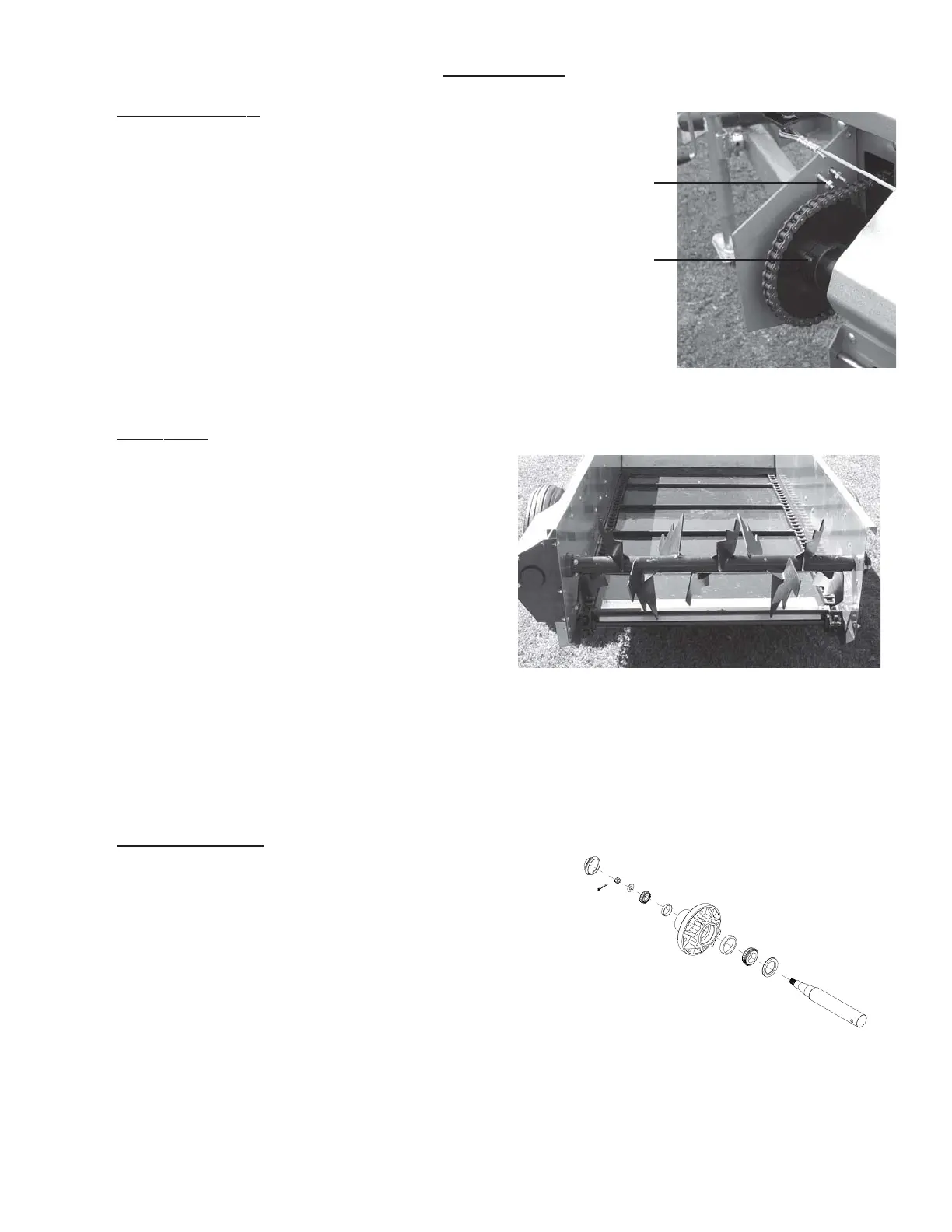

SHEAR BOLT
The beater and apron drive are protected
by one shear bolt. Two shear bolts are
provided. Shearing of the bolt is normally
due to foreign objects in the manure,
or starting the spreader PTO too quickly
with high tractor RPM’s. Always use H&S
shear bolts.
Spare
Shear
Bolts
Shear
Bolt
Shields Removed For Clarity
WHEEL HUBS
To service or adjust the wheel hubs, tighten the
castellated nut on the spindle to the point where
there is no end-play and a slight drag on the
bearings. Replace the cotter key with a new one
of the correct size.
BEATER
The beater paddles are welded to the beater
tube. Replacement of these paddles should be
performed by authorized service personnel who
are competent welders. When replacing paddles,
the sharp edge of the teeth must lead in the
direction of beater travel.
SERVICE
