11 Additional Equipment
11.1 Heating insets
Activation of the heating cartridge: ≤ 0°C Ambient temperature
Valve type
DN
Wiring
diagram
№
Heating
capacity
[W]
Amper
age
[A]
Heating insets
Quantity
Connection
voltage
[V]
Rated
power
[W]
Part №
33501, 33521
33601, 33621
33502, 33602
15 – 65
15 – 65
50
11 125E29
23
0.96
1
1)
24
23
105373
33501, 33521
33601, 33621
33503
33603
80
80
40 – 80
40 – 80
11 125E31
46
1.92
2
1)

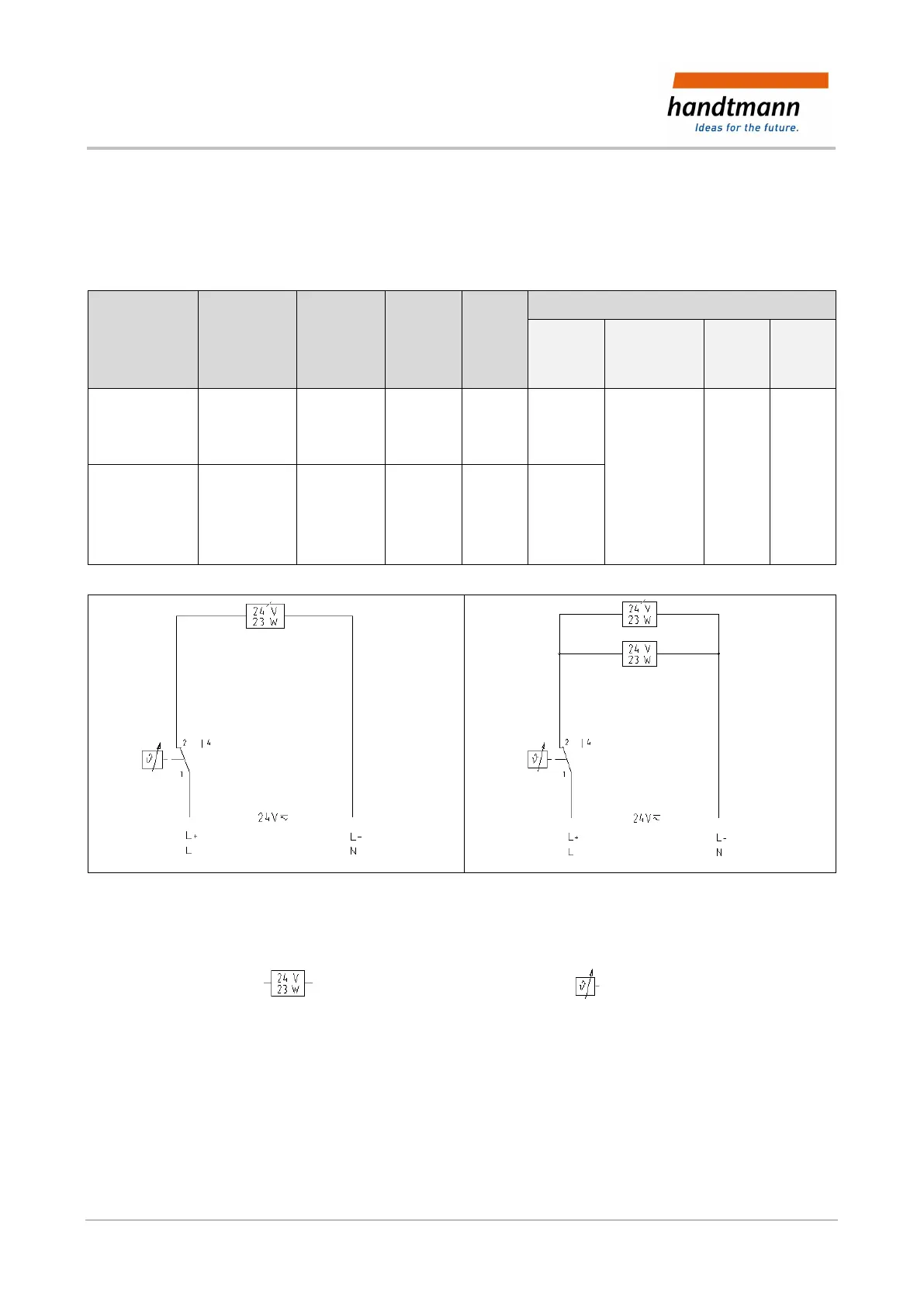

Fig. 2: 11 125E29
11 125E31
Symbols:
Heating inset (Ø 6,5 x 40)
1)
Temperature control
2)
1)
The heating insets are accommodated in corresponding heating segments.
2)
The thermostat, part no. 106838, cannot turn on / off the heaters directly at 24V DC
(direct current). Therefore, the switching process needs to be decoupled technically.
