HANGCHA CPD30-A - Multi-function display

4
Multi-function display
CPD10/15/18/20/25/30-A CPD10/15/18/20/25/30/35-AC3 CPD10/15/18/20/25/30/35-AC4
CPD10/15/18/20/25/30/35-AC3F CPD10/15/18/20/25/30/35-AC4F
CPD25-ALC3 CPD25-ALC3F CPD25-ALC3 CPD25-ALC3F

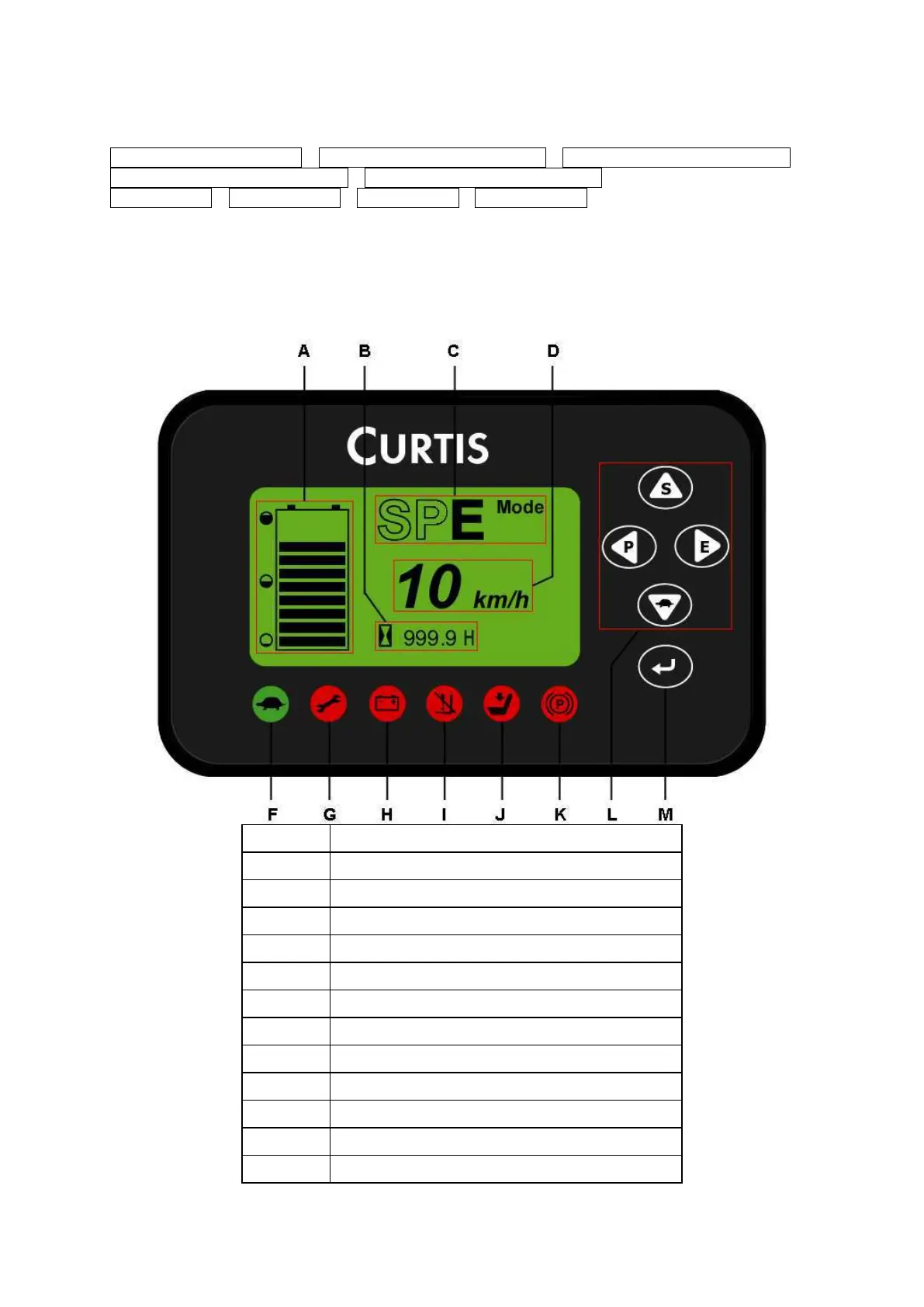

The multi-function display shows the battery capacity, the service hours, the operating mode, the
travel speed and fault code information. Graphic illustrations on the multi-function display act as
warning indicators. Through the multi-function display on the right button can also check fault code
and parameter setting.
Item
Display
A
Battery capacity display
B
Service hours display
C
Operating mode display
D
Travel speed or fault code display
F
Crawl speed indicator
G
Fault indicator
H
Battery low capacity indicator
I
Lifting low speed indicator
J
Seat switch indicator
K
Parking brake applied indicator
L
Mode settings or direction choosing button
M
Menu button
