Hansa F3 Chaff Cutter O&M Manual - OM-016 Revision B 14/05/2019

Assembly

Tools required for assembly (not supplied):

• 6 mm Allen key – to secure the wheels to the axles

• 13 mm spanner – to secure the rubber feet to the legs of the machine

• Square drive bit with drill/driver – to separate the chaff cutter from the

pallet

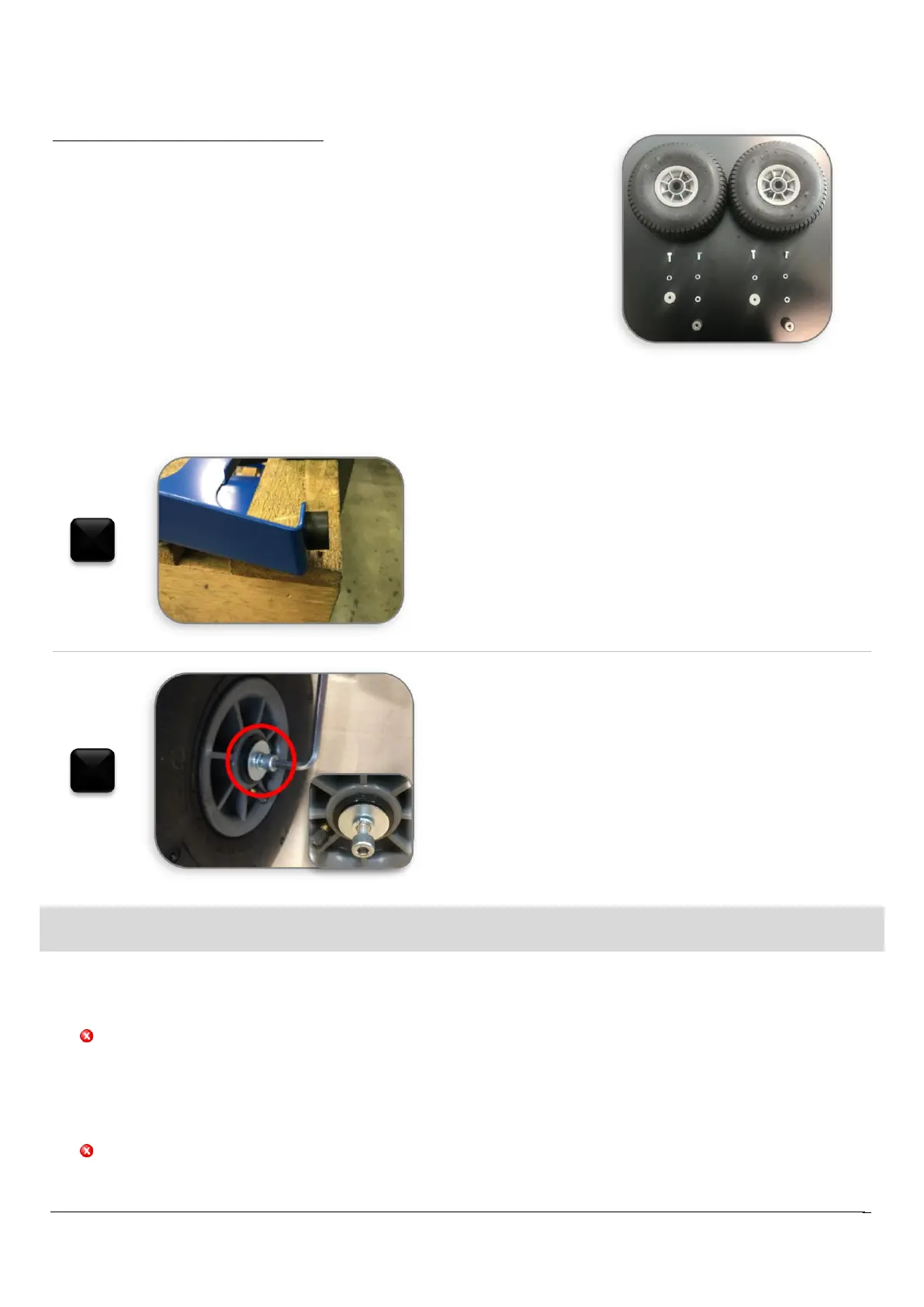

The chaff cutter will come with two wheels detached from the shafts, and a pack

containing a number of fasteners:

1. Two m8x16 hex bolts

2. Two m8x20 cap screws

3. Four m8 spring washers

4. Two large m8 washers

5. Two small m8 washers

6. Two rubber feet

Steps to assemble the chaff cutter

Using a 13mm spanner, fasten the rubber feet to the bottom of the

front legs of the machine. Use an m8x16 bolt (item no. 1), spring

washer (item no. 3) and small washer (item no. 5) to fasten each

foot.

Using a 6 mm Allen key, fasten the wheels to the axles on the

bottom of the back legs of the machine. Use an m8x20 cap screw

(item no. 1), spring washer (item no. 3) and large washer (item no.

4) to fasten each wheel to the axles. Ensure the air valve is facing

outward.

Safety

Preventing accidents is the responsibility of every equipment operator. Ensure every operator is familiar with the safe operation

procedures of the machinery, how to identify hazards and the steps required to avoid injury while handling and operating the

machine. Relevant information is contained in this manual.

Do NOT modify the design of the chaff cutter

Operator competency

Only people over the age of 16 are to operate the chaff cutter. Ensure that every person operating the chaff cutter understands

and follows the safe operating procedures as specified in this manual.

Do NOT allow persons to operate the machine without full and proper instruction in the use and safe operation of the

chaff cutter and maintenance as detailed in this manual.
