13

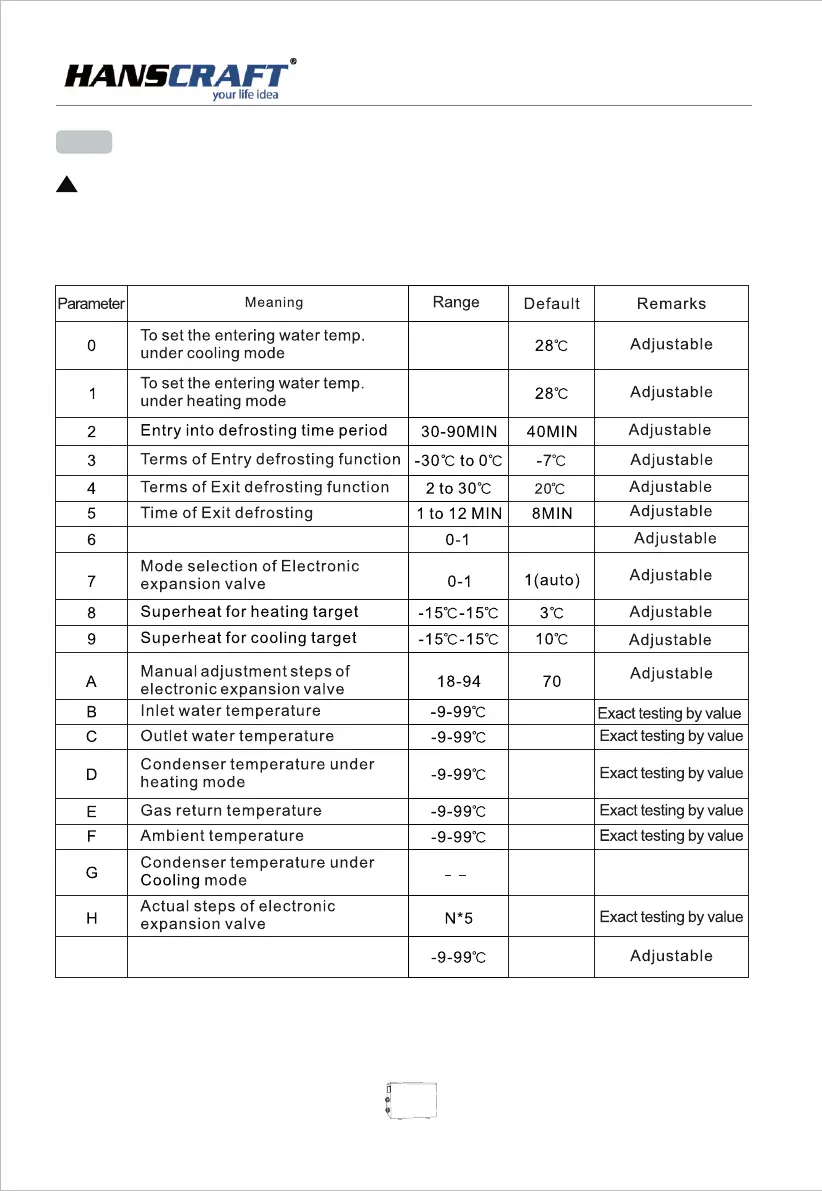

7.4 RUNNING DATA SETTING
Remarks :
(1) LED wire controller can operate the water pump after connected additional cable to the pump device in the position
of “WATER PUMP” terminal accurately .
(2) It is necessary to put an extra 3-phase transfer device for 3 phase water pump.
ATTENTION:
HP running parameters must be checked after installation and before first used.
When the LED on, it will displays water inlet temperature.
When the LED off, it will displays "OFF" .
When the LED on, the water temp could be changed.
!
0 ( Heat)
/
15-35℃
15-40℃
PO OL H E A T P U M P
Mode:0 heat, 1 heat and cool
L
Inlet water temperature
correction
