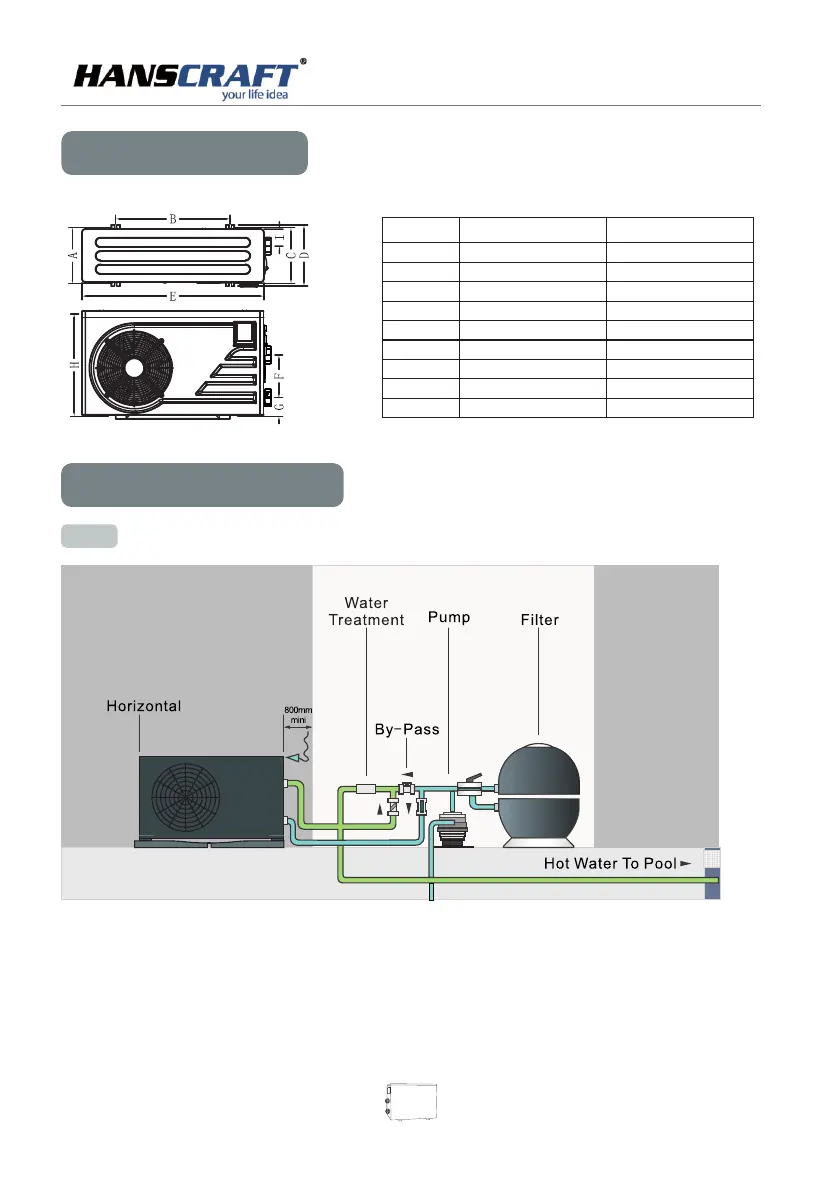

HANSCRAFT Evolution 25 - Dimension; Installation; Installation Illustration

03
3. Dimension
NOTE: The factory only provides the heat pump unit. The other items in the illustration are necessary
spare parts for the water system which are provided by users or installers.
4. Installation
4.1 Installation illustration
PO OL H E A T P U M P
Unit : mm
A
B
C
D
E
F
G
H
I
Models
302
622
288
332
988
230
103
557
98
326
655
306
350
1026
340
108
620
92
EVOLUTION 60
EVOLUTION 25
EVOLUTION 40
