Hansol 730E - Connectivity; D-Sub Connector Pinout

Color Monitor
11

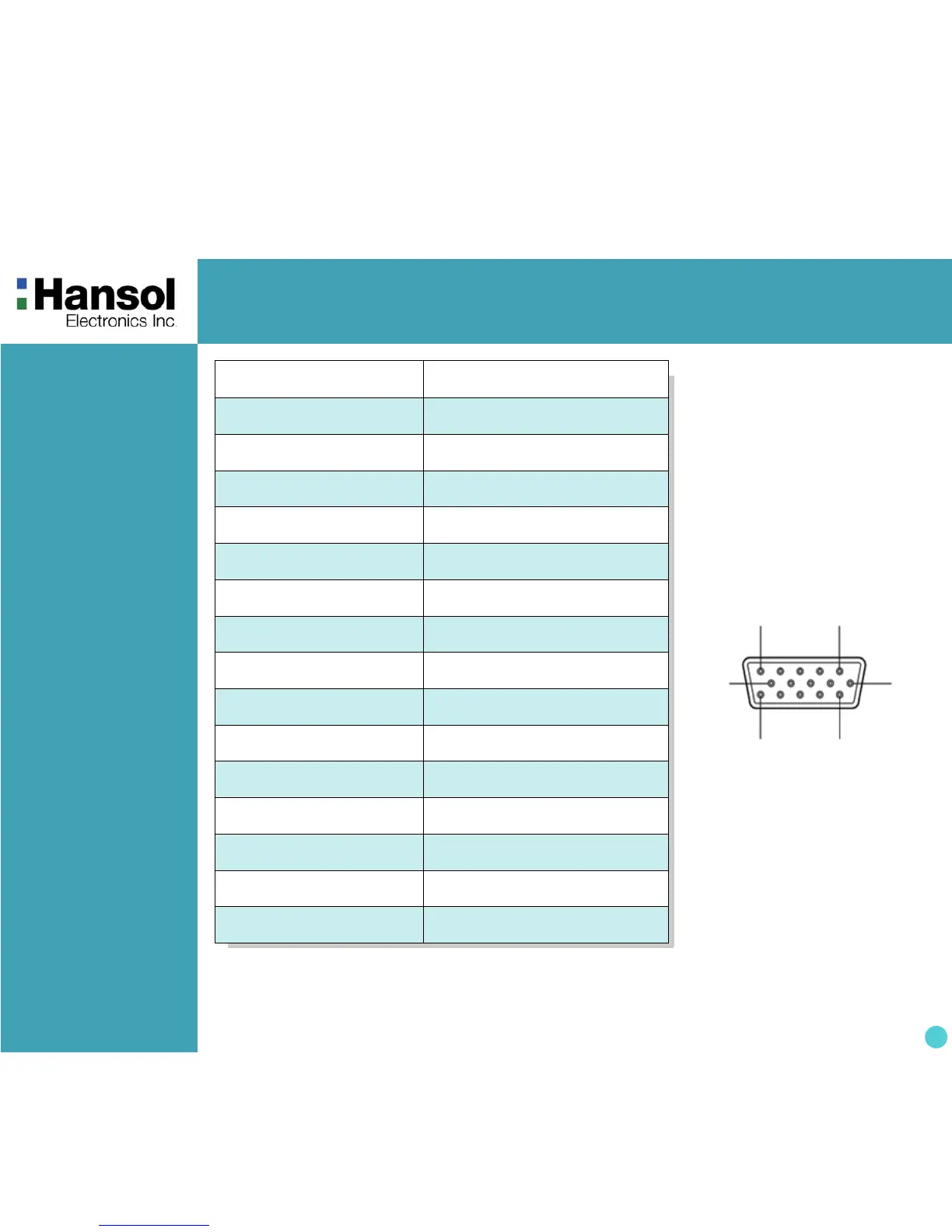

 Pin assignment
table D-Sub Mini
15pin connector
z
The 15-pin D-Sub connector
(male) of the signal cable
(IBM Systems) :
1
5
6
10
11 15
(15 Pin D-Sub)
Pin No. Assignment
1 Red Video
2 Green Video
3 Blue Video
4 Frame Ground
5 Ground
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground
9 N.C
10 Sync. Ground
11 Ground
12 SDA
13 H-Sync.
14 V-Sync.
15 SCL
