Hantarex MTC 9000 User Manual

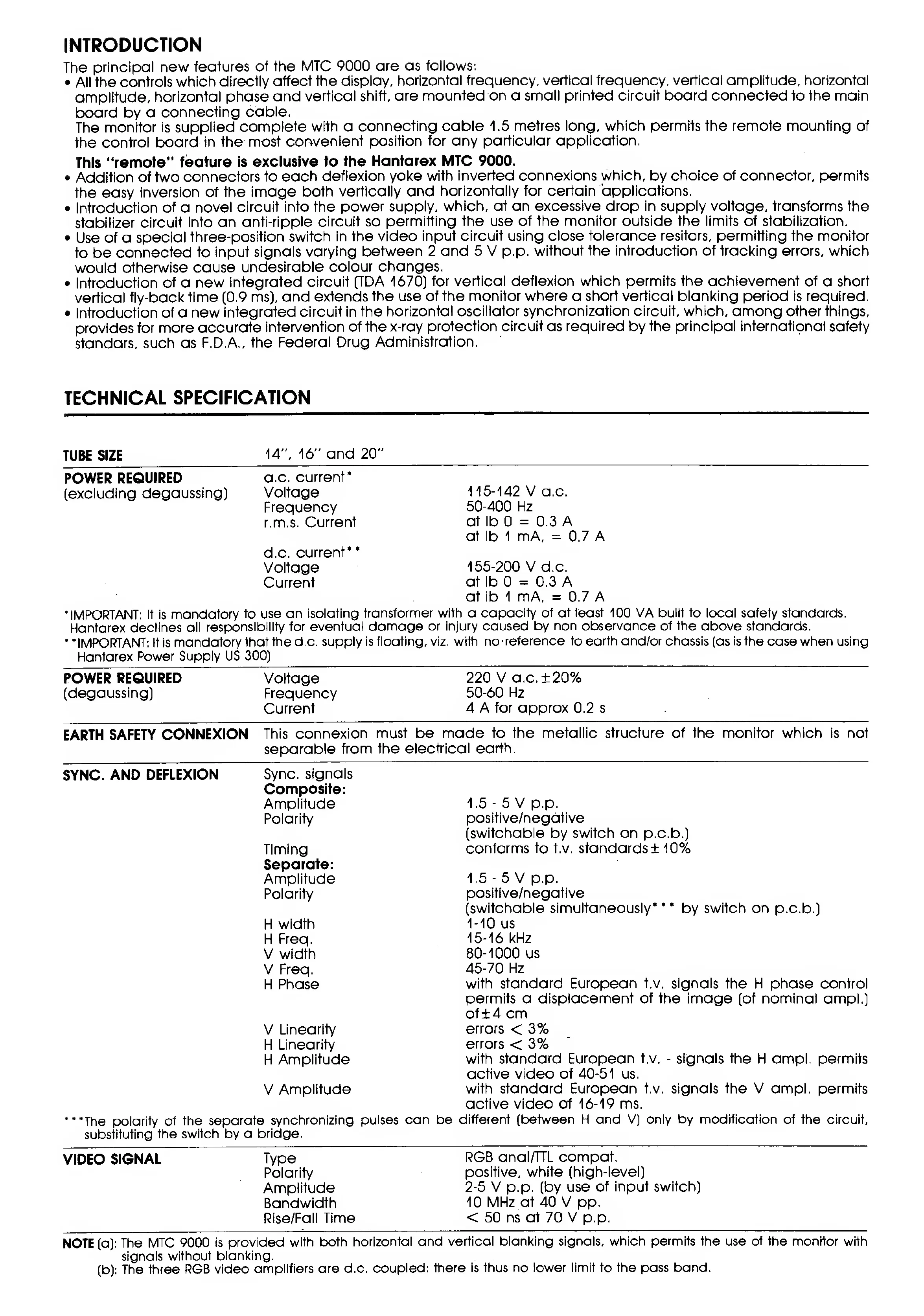

INTRODUCTION
The
principal new
features of the
MTC 9000
are as follows:
•
All the
controls
which
directly affect the
display,
horizontal frequency,
vertical frequency,
vertical amplitude, horizontal
amplitude,
horizontal phase
and
vertical shift, are
mounted on a small printed circuit board connected to the main
board by
a
connecting
cable.
The
monitor
Is supplied
complete with a
connecting cable 1.5
metres long, which permits the remote mounting
of
the
control board
in the
most
convenient
position for any particular
application.
This
"remote"
feature is
exciusive to
the
Hontorex MTC 9000.
•
Addition of two
connectors to
each
deflexion yoke with
inverted connexions which,
by
choice of connector, permits
the easy
inversion of the
both vertically
and horizontally
for certain applications.
•
Introduction
of a
novel
circuit into the
power supply,
which, at an excessive drop in supply voltage, transforms the
stabilizer
circuit
into an
anti-ripple
circuit so
permitting the use
of the monitor outside the limits
of
stabilization.
•
Use
of a
special
three-position
switch in the video
input
circuit
using
close tolerance resitors, permitting
the monitor
to
be
connected to
input
signals
varying between 2
and 5 V
p.p.
without
the introduction
of tracking errors, which
would
otherwise
cause
undesirable
colour changes.
•
Introduction
of a
new
integrated
circuit (TDA
1670]
for vertical deflexion which permits the achievement of
a
short
vertical
fly-back time
(0.9
ms),
and extends
the use of the
monitor where a short vertical blanking period is required.
•
introduction
of a new
integrated
circuit in
the
horizontal oscillator synchronization circuit, which, among
other things,
provides
for more
accurate
intervention of the x-ray
protection circuit as
required
by the principal international safety
standars,
such as
F.D.A., the
Federal Drug
Administration.
TECHNICAL
SPECIFICATION
TUBE
SIZE
14",
16"
and
20"
POWER
REQUIRED
(excluding
degaussing)
a.c.
current*
Voltage
Frequency
r.m.s.
Current
115-142
Va.c.
50-400
Hz
at lb
=
0.3 A
at lb 1 mA,
=
0.7 A
d.c.
current'*
Voltage
Current
155-200
V d.c.
at lb
=
0.3 A
at ib 1 mA,
=
0.7 A
•IMPORTANT:
It is
mandatory
to use on
isolating
tronsformer with a
capacity of at least
100 VA
built
to local safety standards.
Hantarex
declines
all
responsibility
for eventual
damage or
injury
caused by
non observance of the
above standards.
•'IMPORTANT; It is
mandatory that
the d.c.
supply is floating, viz. with no
reference to earth and/or chassis
(as
is
the case when using
Hantarex
Power Supply US 300)
POWER
REQUIRED
(degaussing)
Voltage
Frequency
Current
220 Va.c. ±20%
50-60
Hz
4 A for approx 0.2 s
EARTH
SAFETY
CONNEXION
This connexion
must be mode to
the metallic structure of the monitor which
is not
separable
from the
electrical earth.
SYNC.
AND
DEFLEXION
Sync,
signals
Composite:
Amplitude
Polarity
Timing
Separate:
Amplitude
Polarity
1.5
-
5 V
p.p.
positive/negative
(switchabie by switch on p.c.b.)
conforms to t.v. standards! 10%
1.5
-5
V
p.p.
positive/negative
(switchabie
simultaneously*
* *
by switch on p.c.b.)
1-10
us
15-16
l<Hz
80-1000
us
45-70
Hz
with
standard European t.v. signals
the H phase control
permits a displacement of the image (of nominal ampl.)
of±4 cm
errors
<
3%
errors
<
3%
with
standard European t.v.
-
signals
the H ampl. permits
active video of
40-51
us.
with standard European t.v. signals the V ampl. permits
active video of
16-19
ms.
• •
*The
polarity
of the
separate
synchronizing
pulses can be
different (between H and V) only by modification of the circuit,
substituting
the
switch
by
a
bridge.
H
width
H
Freq.
V
width
V Freq.
hi Phase
V
Linearity
H
Linearity
H
Amplitude
V
Amplitude
VIDEO
SIGNAL
Type
Polarity
Amplitude
Bandwidth
Rise/Fall
Time
RGB
anai/TTL compat.
positive,
white (high-level)
2-5
V
p.p.
(by
use of
input switch)
10 IV1Hzat40 V
pp.
<
50 ns
at
70
V
p.p.
NOTE (a):
The
MTC 9000 is
provided
with both
horizontal and
vertical blanking signals, which
permits
the use of the monitor with
signals
without blanl<ing.
(b):
The three
RGB video
amplifiers are d.c.
coupled: there
is thus no lower limit to the pass band.
